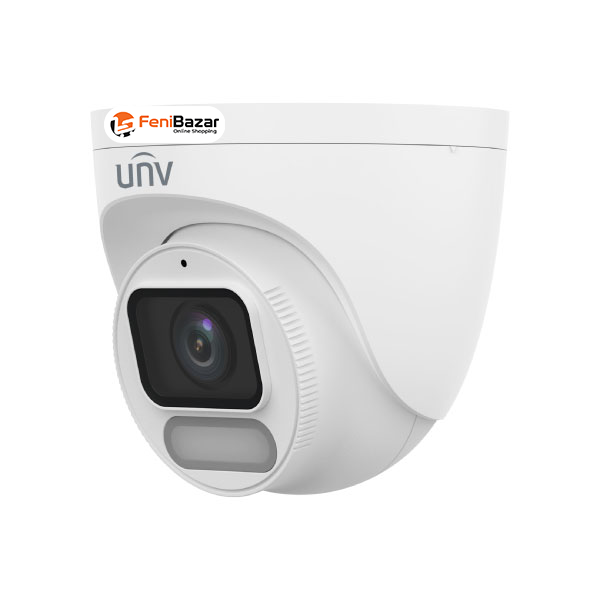

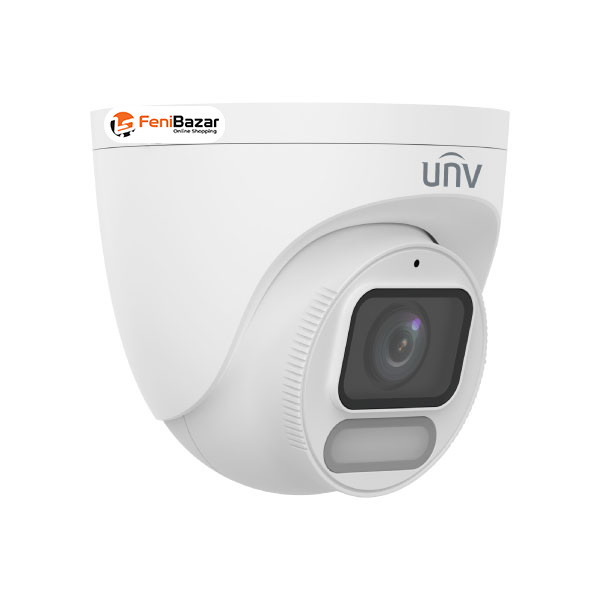

UNV IPC3624LE-ADF28K-WP-L 4MP OwlView Wise-ISP Fixed Warm-Light Dome Network Camera

4MP F1.0 PoE IP Camera with 120dB WDR, 30m Warm Light & Built-in Mic

This 4MP PoE IP Camera delivers high-quality surveillance with a 1/1.8" CMOS sensor, 2.8mm fixed F1.0 lens, and up to 4MP (2560 × 1440) resolution at 25fps. Its wide 107.6° horizontal field of view makes it suitable for monitoring a broad area with clear and detailed video.

4MP Image with 120dB WDR

The camera supports up to 4MP resolution and features 120dB WDR for improved image balance in scenes with strong differences between bright and dark areas. Additional image functions include 2D/3D DNR, BLC, HLC, Smart Illumination, digital Defog, and multiple white-balance modes.

F1.0 Fixed Lens & Wide Viewing Angle

Equipped with a 2.8mm fixed F1.0 lens, the camera provides a 107.6° horizontal, 58.4° vertical, and 126.4° diagonal field of view. The DORI distances are up to 43.5m for detection, 17.4m for observation, 8.7m for recognition, and 4.3m for identification.

30m Warm-Light Illumination

The camera features warm-light illumination up to 30 meters with automatic or manual light control. This supports visibility in low-light environments while maintaining color images.

Efficient Video Compression

Video compression supports Ultra 265, H.265, H.264, and MJPEG, helping manage bandwidth and storage requirements. The camera provides dual video streams, ROI support, up to 4 OSDs, and up to 4 privacy-mask areas.

Built-in Microphone & Audio Detection

A built-in microphone supports audio capture, with G.711U/G.711A audio compression, 64Kbps bitrate, and 8kHz sampling. Audio detection and suppression are supported, while two-way audio and external audio I/O are not supported.

PoE & Network Connectivity

The camera supports IEEE 802.3af PoE as well as DC 12V ±25% power, allowing flexible installation options. Network connectivity is provided through 1× RJ45 10/100M Ethernet port, with support for IPv4, IPv6, RTSP, ONVIF Profile S/G/T, API, SDK, and a wide range of network protocols.

MicroSD Storage & Network Storage

For local recording, the camera supports MicroSD cards up to 512GB. It also supports ANR and NAS (NFS) for network-based storage options.

Smart Detection & Security

Supported events include Motion Detection, Ultra Motion Detection, Tampering Alarm, and Audio Detection. Security functions include IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication, HTTPS encryption, TLS 1.2, and ONVIF authentication.

IP67 Protection & Durable Construction

The camera features a metal + plastic body and IP67 protection. It is designed to operate from -30°C to 60°C with humidity up to 95% RH, and provides 4KV surge protection for added installation reliability.

Key Features

• 4MP IP Camera

• 1/1.8" CMOS sensor

• 2560 × 1440 resolution at up to 25fps

• 2.8mm fixed F1.0 lens

• 107.6° horizontal field of view

• 120dB WDR

• 30m warm-light illumination

• Ultra 265 / H.265 / H.264 / MJPEG

• 2D/3D DNR

• Smart Illumination

• BLC, HLC & Digital Defog

• Built-in microphone

• Motion, Ultra Motion, Tampering & Audio Detection

• MicroSD up to 512GB

• ANR & NAS (NFS)

• ONVIF Profile S/G/T

• PoE IEEE 802.3af

• DC 12V ±25%

• 1× RJ45 10/100M Ethernet

• IP67 protection

• 4KV surge protection

• DORI up to 43.5m detection

• Ø118 × 106mm dimensions

• 0.41kg weight
