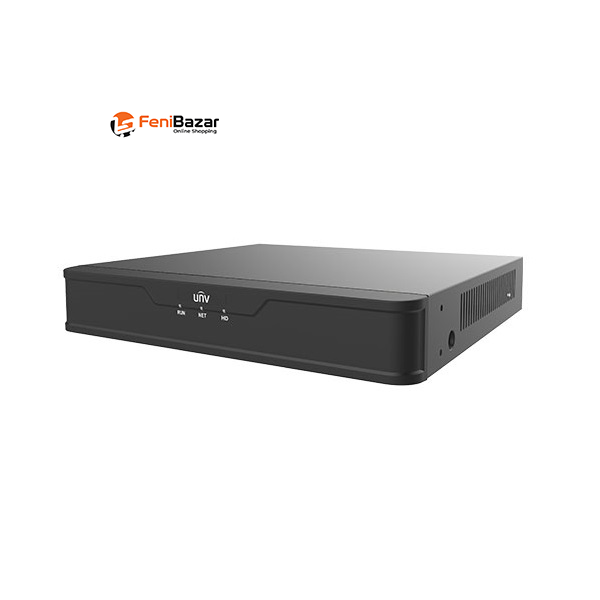

This 8-Channel PoE NVR is a network video recorder designed for CCTV surveillance systems with 4K recording and PoE camera connectivity. It supports up to 64Mbps incoming bandwidth and 48Mbps outgoing bandwidth, making it suitable for network-based video surveillance installations.
The NVR provides 8 PoE ports supporting IEEE 802.3at and IEEE 802.3af, with a maximum power output of 30W per port and 75W total PoE power. It also includes a 10M/100M self-adaptive RJ-45 network interface for network connectivity.
The NVR supports recording resolutions including 4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, and CIF. Its HDMI output supports up to 4K (3840 × 2160) at 30Hz, while VGA supports up to 1920 × 1080 at 60Hz.
For monitoring and playback, the NVR supports the same range of resolutions and provides 8-channel synchronous playback. Live-view display options include 1/4/6/8/9-screen layouts, while corridor mode supports 3/4/5/7/9-screen layouts.
The recorder supports Ultra 265, H.265, and H.264 video decoding formats. Its decoding capability includes:
1 × 4K @ 30fps
4 × 5MP @ 25fps
4 × 4MP @ 25fps
4 × 3MP @ 25fps
4 × 1080p @ 30fps
8 × 720p @ 30fps
For audio, it provides 1-channel RCA audio output and supports G.711A and G.711U audio compression.
The NVR supports multiple camera-based VCA detection functions, including:
Intrusion Detection
Cross Line Detection
Enter Area
Leave Area
Audio Detection
Ultra Motion Detection (UMD)
It also supports Face Search and Behavior Search. Smart Intrusion Prevention (SIP) and UMD by camera are supported on a total of 4 channels.
The NVR supports general alarm events including motion detection, tampering, human body detection, video loss, and alarm input.
System alert functions include:
IP Conflict
Network Disconnected
Disk Offline
Disk Abnormal
Illegal Access
Hard Disk Space Low
Hard Disk Full
Recording/Snapshot Abnormal
The recorder features 1 SATA interface and supports up to 8TB for the installed disk. The maximum HDD capacity may vary depending on the operating environment temperature.
The NVR supports up to 128 remote users and provides a wide range of network protocols, including TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, and RTSP.
The NVR features 8 × 10M/100M self-adaptive PoE RJ-45 ports. Each PoE port can provide up to 30W, with a combined maximum PoE power budget of 75W.
Supported PoE standards:
IEEE 802.3at
IEEE 802.3af
The NVR operates on a 52V DC power supply and consumes ≤9W without HDD. It supports an operating temperature range of -10°C to +55°C with humidity up to 90% RH, non-condensing.
Its compact dimensions are 260 × 240 × 46mm, with a specified weight of ≤1.1kg without HDD.
8-Channel PoE NVR
4K recording resolution support
4K HDMI output up to 3840 × 2160 @ 30Hz
VGA output up to 1920 × 1080 @ 60Hz
64Mbps incoming bandwidth
48Mbps outgoing bandwidth
Up to 128 remote users
8-channel synchronous playback
Ultra 265 / H.265 / H.264 decoding
8 × 10M/100M PoE ports
30W maximum per PoE port
75W total PoE power
IEEE 802.3at / 802.3af
1 × 10M/100M self-adaptive RJ-45 network port
1 SATA interface
Supports up to 8TB HDD
Smart Intrusion Prevention (SIP)
Ultra Motion Detection (UMD)
4-channel SIP/UMD by camera
Intrusion and Cross Line Detection
Enter Area & Leave Area detection
Audio Detection
Face Search & Behavior Search
Human Body Detection
Motion & Tampering Detection
Video Loss Detection
1-channel RCA audio output
G.711A / G.711U audio compression
2 × USB 2.0 rear ports
52V DC power supply
≤9W power consumption without HDD
1-year warranty
| Specification | Details |
|---|---|
| Device Type | 8-Channel PoE NVR |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Network Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| HDMI Output | Up to 4K (3840 × 2160) @ 30Hz |
| VGA Output | Up to 1920 × 1080 @ 60Hz |
| Recording Resolution | 4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Liveview Display | 1 / 4 / 6 / 8 / 9 |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 |
| Snapshot | 1-ch, up to D1 resolution |
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Decoding Capability | 1 × 4K@30, 4 × 5MP@25, 4 × 4MP@25, 4 × 3MP@25, 4 × 1080p@30, 8 × 720p@30 |
| SATA | 1 interface |
| HDD Capacity | Up to 8TB |
| VCA Detection | Intrusion, Cross Line, Enter Area, Leave Area, Audio Detection, UMD |
| VCA Search | Face Search, Behavior Search |
| SIP / UMD by Camera | Total 4-ch |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal |
| Network Interface | 1 × RJ-45 10M/100M self-adaptive Ethernet |
| USB | 2 × USB 2.0, Rear Panel |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE Interface | 8 × RJ-45 10M/100M self-adaptive Ethernet |
| Maximum PoE Power | 30W per port |
| Total PoE Power | 75W |
| PoE Standard | IEEE 802.3at / IEEE 802.3af |
| Power Supply | 52V DC |
| Power Consumption | ≤9W (without HDD) |
| Working Temperature | -10°C to +55°C |
| Working Humidity | ≤90% RH, non-condensing |
| Dimensions | 260 × 240 × 46mm |
| Weight | ≤1.1kg (without HDD) |
| Warranty | 1 Year |
This 8-Channel PoE NVR is suitable for CCTV surveillance installations requiring 4K recording, 8-channel PoE camera connectivity, smart detection, VCA search, remote access, and centralized video monitoring.
