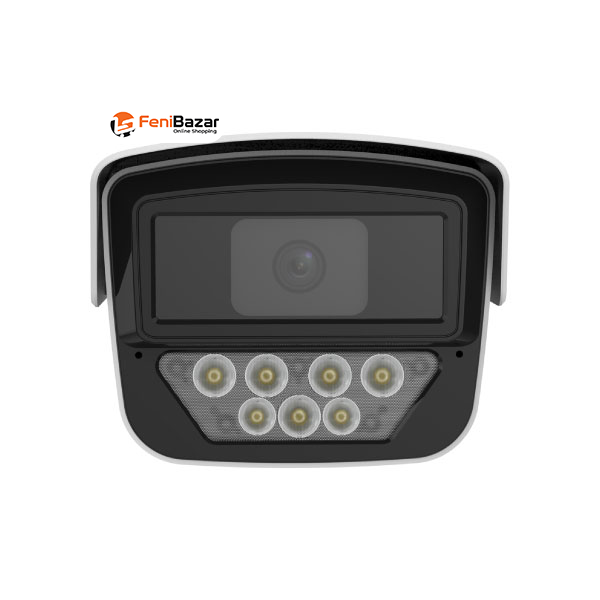

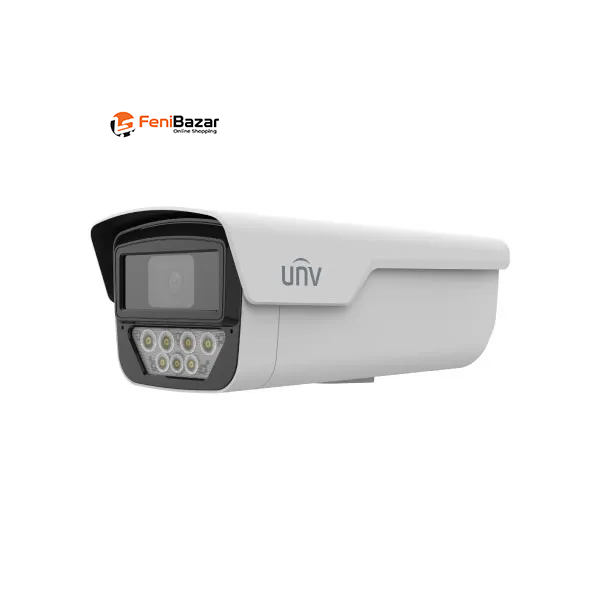

The IPC245LP-ADF40KC-WP is a high-performance 5MP PoE IP Camera featuring a 1/1.8" CMOS sensor, F1.0 fixed lens, 120dB WDR, ColorHunter low-light technology, and 50m warm-light illumination. It combines advanced image quality, intelligent human/vehicle-based detection, two-way audio, local storage, and flexible network integration for professional surveillance applications.
The camera delivers up to 5MP resolution at 2880 × 1620 @ 25fps using a 1/1.8" CMOS sensor. Its 0.0003 Lux color illumination and F1.0 aperture provide excellent low-light performance.
With 120dB WDR, the camera helps preserve image details in scenes containing both bright and dark areas. Additional image enhancement features include 2D/3D DNR, Smart Illumination, HLC, BLC, and Digital Defog.
The camera uses a 4.0mm fixed lens with F1.0 aperture, offering a wide 96.1° horizontal, 52.2° vertical, and 113.5° diagonal field of view.
DORI performance is rated at:
Detect: Up to 62.1m
Observe: Up to 24.8m
Recognize: Up to 12.4m
Identify: Up to 6.2m
The camera features warm-light supplemental illumination up to 50m (164ft). The illumination can be controlled through Auto/Manual modes, providing flexible nighttime lighting for surveillance.
The camera supports Smart Intrusion Prevention Lite, including intrusion and crossline detection based on human body and vehicle detection.
Its Ultra Motion Detection is also based on human body and vehicle detection, helping improve the relevance of motion-based security events.
The camera supports two-way audio with a built-in microphone and built-in speaker. It also provides 1 audio input and 1 audio output and supports G.711U, G.711A, and AAC-LC audio compression.
The camera supports Ultra 265, H.265, H.264, and MJPEG compression. It provides dual video streams, ROI, U-Code, up to 4 OSDs, and up to 4 privacy mask areas, helping optimize video transmission and storage.
For local recording, it supports MicroSD cards up to 512GB, along with ANR and NAS (NFS) network storage.
The camera supports IEEE 802.3af PoE as well as DC 12V ±25% power. Network connectivity is provided through 1× RJ45 10/100M Base-TX Ethernet.
It supports ONVIF Profile S, G, and T, as well as API and SDK integration, allowing compatibility with supported NVRs, VMS platforms, and other network surveillance systems.
The camera includes 1 alarm input and 1 alarm output, along with motion detection, tampering alarm, and audio detection.
Security features include watermark, IP filtering, access policy, ARP protection, RTSP authentication, HTTP authentication, and user authentication.
The IP67 protection rating provides protection against dust and water. The camera also supports 3-axis adjustment, making installation and positioning more flexible.
Model: IPC245LP-ADF40KC-WP
5MP IP Camera
1/1.8" CMOS Sensor
2880 × 1620 @ 25fps
0.0003 Lux Color Illumination
120dB WDR
ColorHunter with F1.0 Lens
4mm F1.0 Fixed Lens
96.1° Horizontal FOV
50m Warm-Light Illumination
Smart Illumination
2D/3D DNR
HLC, BLC & Digital Defog
Human & Vehicle-Based Detection
Smart Intrusion Prevention Lite
Intrusion & Crossline Detection
Built-in Microphone & Speaker
Two-Way Audio
1 Audio Input / 1 Audio Output
1 Alarm Input / 1 Alarm Output
MicroSD Support up to 512GB
ANR & NAS (NFS)
Ultra 265 / H.265 / H.264 / MJPEG
Dual Video Streams
ROI & U-Code Support
ONVIF Profile S/G/T
API & SDK Support
DC 12V ±25% / IEEE 802.3af PoE
1× RJ45 10/100M Ethernet
IP67 Protection
3-Axis Adjustment
4KV Surge Protection
Maximum Power Consumption: 3.5W
