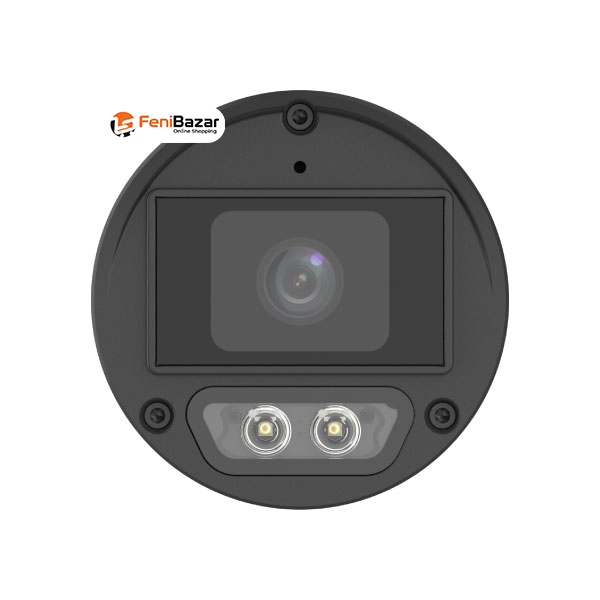

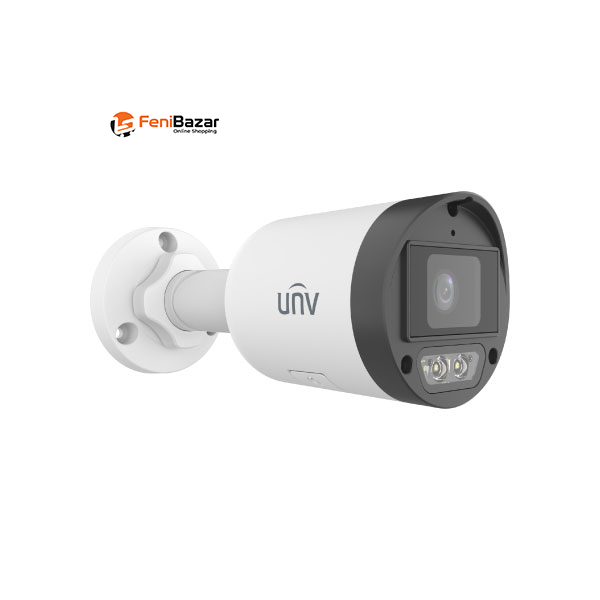

The IPC2122LB-AF40K-DL2 is a 2MP PoE Dual-Light IP Camera designed for reliable Full HD network surveillance with advanced image enhancement, built-in audio, and flexible night-time illumination. It features a 1/3.0" CMOS sensor and supports up to 1920 × 1080 resolution, delivering clear and detailed video for security monitoring.
The camera uses a 4mm fixed lens with F1.6 aperture and provides a 74.9° horizontal field of view. Its Dual-Light system combines up to 30m IR illumination and up to 30m warm-light illumination, providing flexible supplemental lighting for nighttime surveillance.
The camera features a 1/3.0" CMOS image sensor with a maximum resolution of 2MP. The main stream supports 1080P (1920 × 1080) at up to 30fps and 720P (1280 × 720) at up to 30fps.
With minimum color illumination of 0.005 Lux at F1.6 with AGC ON and 0 Lux with supplemental light, the camera is designed to maintain image visibility in low-light environments.
The camera is equipped with a 4.0mm fixed lens with a fixed iris and F1.6 aperture.
Viewing angles:
Horizontal: 74.9°
Vertical: 39.6°
Diagonal: 84.7°
The camera also supports flexible physical adjustment:
Pan: 0°–360°
Tilt: 0°–90°
Rotate: 0°–360°
The camera features a Dual-Light supplemental lighting system that combines infrared and warm light.
IR Illumination: Up to 30m (98.4ft)
Warm Light Illumination: Up to 30m (98.4ft)
Wavelength: 850nm
Smart IR: Supported
This combination provides flexible illumination for nighttime surveillance.
The camera supports DWDR (Digital Wide Dynamic Range) along with multiple image enhancement technologies, including:
2D/3D DNR
BLC
HLC
Digital Defog
Smart IR
Multiple white-balance modes
Image flip and rotation
These features help improve image quality in challenging lighting conditions.
The camera supports Ultra 265, H.265, and H.264 video compression. It also supports U-Code technology for efficient video encoding.
The video bit rate ranges from 128Kbps to 6144Kbps. H.264 supports Baseline, Main, and High Profiles.
The camera supports dual video streams, allowing flexible use of main and sub-stream video.
The camera includes a built-in microphone for audio capture.
Supported audio formats include:
AAC-LC
G.711U
G.711A
Audio bit rate is 64Kbps for G.711U/G.711A and 128Kbps for AAC-LC. Noise suppression is also supported.
Two-way audio is not supported according to the supplied specifications.
The camera supports Ultra Motion Detection, Motion Detection, Audio Detection, and Tampering Alarm, providing additional event detection capabilities for surveillance monitoring.
For local recording, the camera supports MicroSD cards up to 512GB.
It also supports ANR (Automatic Network Replenishment) and NAS (NFS) network storage, providing additional storage options for compatible surveillance systems.
The camera features 1× RJ45 10/100M Base-TX Ethernet port and supports PoE according to IEEE 802.3af.
It also supports API and SDK integration, along with a wide range of network protocols including IPv4, TCP, UDP, DHCP, RTSP, RTMP, HTTP, HTTPS, NTP, DDNS, SNMP, SSL/TLS, and more.
The camera supports ONVIF Profile S and Profile T, allowing compatibility with supported ONVIF-compliant surveillance systems.
It supports up to 32 users with three user levels:
Administrator
Common User
Operator
The camera features IP67 protection, providing protection against dust and water ingress.
It also offers 4KV surge protection and operates in temperatures from -30°C to 60°C, with humidity up to 95% RH, non-condensing.
The camera has a compact Graphene + Plastic construction and measures 162.1 × 66.5 × 66.6mm, with a net weight of only 0.21kg.
Maximum power consumption is 4.4W, and the camera supports both DC 12V ±25% and PoE IEEE 802.3af power input.
Model: IPC2122LB-AF40K-DL2
2MP Full HD IP Camera
1/3.0" CMOS sensor
1920 × 1080 maximum resolution
4.0mm F1.6 fixed lens
74.9° horizontal FOV
39.6° vertical FOV
84.7° diagonal FOV
Dual-Light illumination
Up to 30m IR illumination
Up to 30m warm-light illumination
850nm IR wavelength
Smart IR
DWDR
2D/3D DNR
BLC & HLC
Digital Defog
Ultra 265 / H.265 / H.264
U-Code support
Dual video streams
Built-in microphone
AAC-LC / G.711U / G.711A audio
Ultra Motion Detection
Motion Detection
Audio Detection
Tampering Alarm
MicroSD up to 512GB
ANR & NAS (NFS) support
ONVIF Profile S/T
API & SDK support
PoE IEEE 802.3af
IP67 protection
4KV surge protection
3-axis adjustment
Up to 32 users
Maximum power consumption 4.4W
1 Year Warranty
The 4mm lens provides the following DORI distances:
| DORI Function | Distance |
|---|---|
| Detect | 66.7m |
| Observe | 26.7m |
| Recognize | 13.3m |
| Identify | 6.7m |
| Specification | Details |
|---|---|
| Model | IPC2122LB-AF40K-DL2 |
| Camera Type | Dual-Light PoE IP Camera |
| Image Sensor | 1/3.0" CMOS |
| Maximum Resolution | 2MP, 1920 × 1080 |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON; 0 Lux with light |
| Day/Night | ICR with Auto Switch |
| Shutter | Auto / Manual, 1–1/100000s |
| WDR | DWDR |
| S/N Ratio | >52dB |
| Lens | 4.0mm Fixed |
| Aperture | F1.6 |
| Lens Type | Fixed |
| FOV | H 74.9° / V 39.6° / D 84.7° |
| IR Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| IR Wavelength | 850nm |
| Smart IR | Supported |
| Main Stream | 1080P / 720P, Max 30fps |
| Sub Stream | 640×360 / 2CIF / CIF, Max 30fps |
| Video Compression | Ultra 265 / H.265 / H.264 |
| U-Code | Supported |
| Video Bit Rate | 128Kbps–6144Kbps |
| Video Stream | Dual Streams |
| Image Enhancement | BLC / HLC / DWDR / Digital Defog / 2D/3D DNR |
| Detection | Ultra Motion / Motion / Audio / Tampering |
| Audio | Built-in Microphone |
| Audio Compression | AAC-LC / G.711U / G.711A |
| Two-way Audio | Not Supported |
| MicroSD | Up to 512GB |
| Network Storage | ANR / NAS (NFS) |
| Network Port | 1× RJ45 10/100M Base-TX |
| ONVIF | Profile S / Profile T |
| Integration | API / SDK |
| Users | Up to 32 |
| Power Supply | DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption | Max. 4.4W |
| Ingress Protection | IP67 |
| Surge Protection | 4KV |
| Adjustment | Pan 0–360°, Tilt 0–90°, Rotate 0–360° |
| Material | Graphene + Plastic |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Dimensions | 162.1 × 66.5 × 66.6mm |
| Weight | 0.21kg |
| Reset Button | Supported |
| Warranty | 1 Year |
The IPC2122LB-AF40K-DL2 2MP Dual-Light PoE IP Camera is suitable for:
Home surveillance
Office security
Shop and retail monitoring
Commercial surveillance
Warehouse monitoring
Entrance monitoring
Property security
Professional IP CCTV installations
Overall, the IPC2122LB-AF40K-DL2 combines 2MP Full HD video, 30m IR, 30m warm light, built-in microphone, 512GB MicroSD support, Human Body/Motion-related detection features, PoE, ONVIF Profile S/T, IP67 protection, and 4KV surge protection in a compact network camera design.
