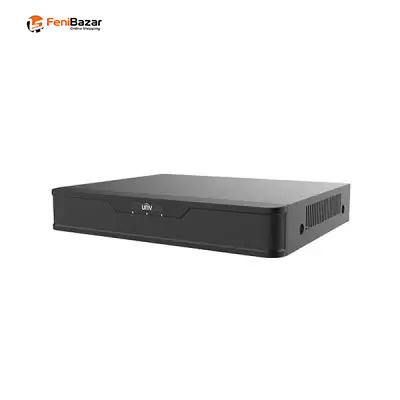

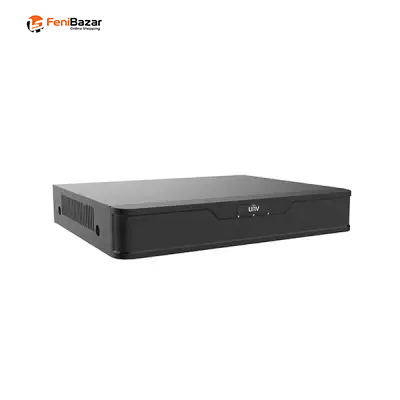

The Uniview XVR301-04G3 is a 4-channel XVR designed for hybrid video surveillance systems. It features 8-channel BNC analog video input and supports 4-channel IP video input, with IP channels supporting resolutions up to 4MP. The XVR supports AHD, TVI, CVI, and CVBS analog camera inputs, providing flexible compatibility for different CCTV installations.
The XVR supports up to 4 IP channels, with a maximum of 8 IP channels after analog channel conversion, and each IP channel supports up to 4MP resolution.
For analog cameras, it supports:
AHD: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
TVI: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
CVI: 1080P@30fps, 720P@30fps
CVBS input
The XVR supports 5MP Lite, 4MP Lite, 1080P Lite, 720P, and CIF recording resolutions. Main-stream recording supports up to 5MP Lite@6fps, while 4MP Lite supports up to 8fps and 1080P Lite/720P up to 12fps.
For playback, it supports 4-channel HD synchronous playback and 8-channel SD synchronous playback.
The XVR provides both HDMI and VGA outputs, supporting resolutions up to 1920×1080p at 60Hz. Other supported output resolutions include 1600×1200, 1280×1024, 1280×720, and 1024×768.
The device supports flexible live-view layouts through HDMI/VGA, including 1, 4, 6, 8, 9, and 16-channel display options.
The XVR301-04G3 features 1 SATA interface for HDD storage. It supports up to 8TB capacity for each HDD, although the maximum supported HDD capacity can vary depending on the operating environment and temperature.
The XVR supports G.711U audio compression with an 8KHz, 16-bit audio sample rate and 64Kbps per-channel audio bitrate. It provides 1-channel RCA audio output and 1-channel RCA two-way audio connectivity for compatible surveillance applications.
The XVR features 32Mbps incoming bandwidth, which can increase to up to 40Mbps after all-analog channel conversion, along with 64Mbps outgoing bandwidth.
Network connectivity is provided through 1× RJ45 10/100Mbps self-adaptive Ethernet interface. Supported network protocols include TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, and SMTP.
The XVR supports up to 128 remote users and is compatible with supported versions of Internet Explorer, Firefox, Chrome, and Microsoft Edge on Windows.
For surveillance event management, the XVR supports motion detection and alert events including IP conflict, network disconnection, disk offline/abnormal status, illegal access, low/full HDD space, and recording or snapshot abnormalities.
It also supports Ultra Motion Detection (UMD) on 4 analog channels and Behavior Search for VCA-based video analysis.
The XVR supports 8-channel snapshots with a maximum snapshot resolution of 704×576. Schedule snapshot is not supported.
For local device connectivity and backup, it provides 2× USB 2.0 ports on the rear panel.
The Uniview XVR301-04G3 operates on 12V DC power with power consumption of ≤8W without HDD. It is designed to operate from -10°C to +55°C with humidity up to 90% RH, non-condensing.
The compact chassis measures 260 × 226 × 47mm and weighs ≤1.1kg.
The XVR is certified with UL, CE, FCC, RoHS, and WEEE standards and comes with a 1-Year Brand Warranty.
Uniview XVR301-04G3
4-Channel 1 SATA XVR
8-channel BNC analog video input
4-channel IP video input, up to 8 IP channels after conversion
Up to 4MP IP camera support
AHD, TVI, CVI & CVBS support
5MP Lite / 4MP Lite / 1080P Lite / 720P / CIF recording
1 SATA interface
Up to 8TB HDD capacity
HDMI & VGA video output
1-channel RCA audio output
1-channel RCA two-way audio
4-channel HD & 8-channel SD synchronous playback
Motion Detection
4-channel analog UMD
Behavior Search
32Mbps incoming bandwidth
Up to 40Mbps after all-analog channel conversion
64Mbps outgoing bandwidth
1× RJ45 10/100Mbps Ethernet
2× USB 2.0 ports
128 remote users
12V DC power
≤8W power consumption without HDD
UL, CE, FCC, RoHS & WEEE certification
1-Year Brand Warranty
The Uniview XVR301-04G3 is a flexible XVR solution for surveillance systems requiring multi-format analog camera support, 4MP IP camera connectivity, 1 SATA storage, HDMI/VGA output, audio and two-way audio, motion detection, UMD, and remote network access.
