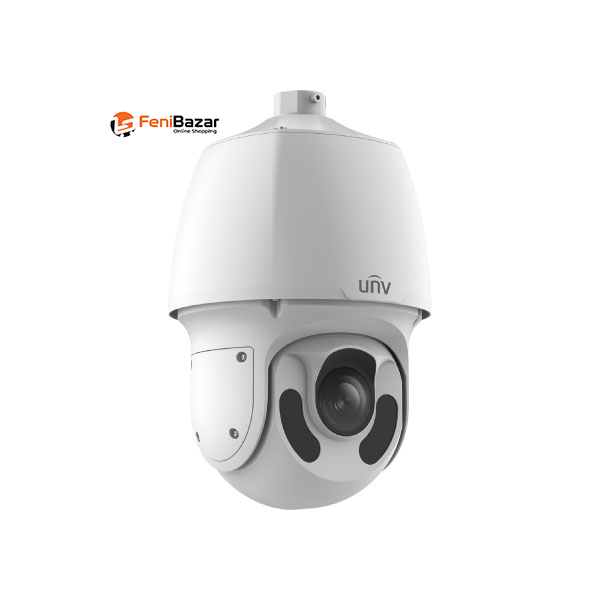

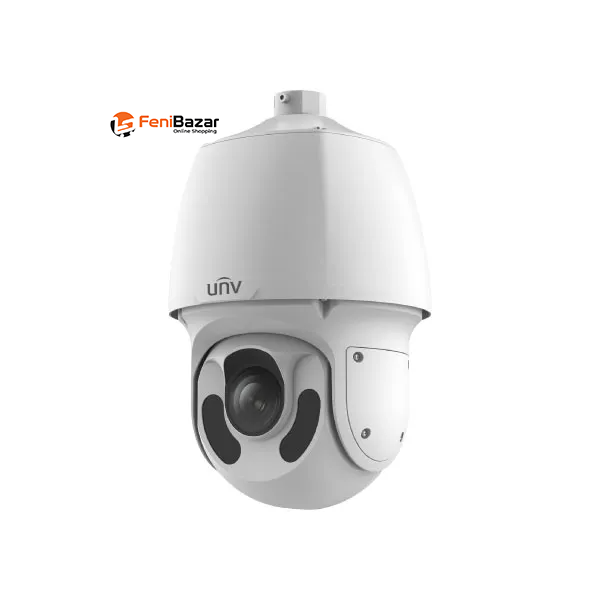

The Uniview IPC6624SR-X33-VF is an advanced 4MP PTZ IP Camera designed for long-distance surveillance and intelligent security monitoring. It features a 1/2.8" CMOS sensor, 4MP resolution up to 30fps, and a powerful 4.5–148.5mm motorized lens with 33X optical zoom and 16X digital zoom, providing detailed views from wide scenes to distant subjects.
The camera supports up to 4MP (2688 × 1520) resolution at 30fps and features a motorized 4.5–148.5mm focal length lens with 33X optical zoom and 16X digital zoom.
The lens provides a horizontal field of view from 51.4° to 2.5°, allowing the camera to cover wide areas while also providing highly magnified views of distant subjects.
With 120dB WDR, the camera helps maintain image details in scenes with challenging lighting conditions. It provides a minimum colour illumination of only 0.003 Lux at F1.5 with AGC ON, while the IR-cut filter automatically switches between day and night operation.
Additional image enhancement features include 2D/3D DNR, HLC, BLC, Smart IR, Digital Defog and Heatwave Reduction.
The IPC6624SR-X33-VF provides powerful IR illumination up to 150 meters (492.1 ft.) using an 850nm wavelength. IR operation can be controlled automatically or manually, supporting long-distance nighttime surveillance.
The camera supports Auto Tracking with target filtering for humans, non-motor vehicles and vehicles. This allows the PTZ camera to automatically track relevant moving targets for enhanced monitoring.
The camera supports Smart Intrusion Prevention with multiple detection rules:
Cross-line detection
Intrusion detection
Enter-area detection
Leave-area detection
False-alarm filtering
Human classification
Non-motor vehicle classification
Vehicle classification
These features provide more targeted event detection and help reduce irrelevant alarms.
The camera supports people flow counting and crowd density monitoring, providing additional information for monitoring areas with significant human activity.
It also supports Object Removed and Object Left Behind detection.
The camera supports Ultra265, H.265, H.264 and MJPEG video compression and provides triple video streams.
The main stream supports 4MP (2688 × 1520) at up to 30fps, while the sub stream supports 1080P at up to 30fps and the third stream supports D1 at up to 30fps.
The camera also supports ROI, U-code, up to 10 OSDs and up to 24 privacy-mask areas, with up to 4 privacy-mask areas configurable per scene.
The camera supports two-way audio with G.711U/G.711A compression, a 128 Kbps audio bitrate and 16 kHz sampling rate.
It provides 1 audio input and 1 audio output, along with 2 alarm inputs and 1 alarm output, allowing integration with compatible audio and alarm devices.
The camera provides extensive PTZ functionality for large-area surveillance:
1024 presets
16 preset patrols, up to 64 presets per patrol
16 route patrols, up to 32 actions per patrol
16 recorded patrols, up to 128 actions per patrol
360° endless pan range
Pan speed up to 200°/s
Tilt range -15° to 90°
Tilt speed up to 200°/s
Home position support
Preset image freeze
Patrol stay time: 15–1800 seconds
The camera supports MicroSD storage up to 512GB and network storage through ANR and NAS (NFS).
It supports ONVIF Profile S, G, T and M, as well as API and SDK integration. Network connectivity is provided through 1 × RJ45 10/100M Base-TX Ethernet.
The camera also features 1 × RS485 serial port and 1 × BNC video output for debugging.
The IPC6624SR-X33-VF supports AC 24V ±25%, DC 24V ±25% and PoE+ (IEEE 802.3at) power supply. Maximum power consumption is 25W.
The camera features IP66 protection, 6KV surge protection, and supports operation from -40°C to 70°C with humidity up to 95% RH (non-condensing).
It also includes a built-in heater for operation in demanding temperature conditions.
The camera's long-range 4.5–148.5mm lens provides extensive DORI distances:
Detect: 105.8m to 3172.5m
Observe: 42.3m to 1269.0m
Recognize: 21.2m to 634.5m
Identify: 10.6m to 317.3m
4MP PTZ IP Camera
1/2.8" CMOS sensor
2688 × 1520 resolution up to 30fps
4.5–148.5mm motorized lens
33X optical zoom
16X digital zoom
120dB WDR
150m IR illumination
850nm IR wavelength
Smart IR
Auto Tracking
Human / non-motor vehicle / vehicle target filtering
Smart Intrusion Prevention
People flow counting
Crowd density monitoring
Object Removed & Object Left Behind detection
Ultra265 / H.265 / H.264 / MJPEG
Triple video streams
ROI & U-code
Two-way audio
2 alarm inputs / 1 alarm output
MicroSD up to 512GB
ONVIF Profile S/G/T/M
API & SDK support
1024 presets
360° endless pan
Pan/Tilt speed up to 200°/s
PoE+ IEEE 802.3at
AC24V / DC24V power support
IP66 protection
6KV surge protection
Built-in heater
DORI identification distance up to 317.3m
The Uniview IPC6624SR-X33-VF is suitable for long-range and intelligent surveillance applications where high optical zoom, PTZ control, long-distance IR illumination and advanced target detection are required. Its 33X optical zoom, 150m IR, auto tracking, Smart Intrusion Prevention and people-counting capabilities make it suitable for monitoring large surveillance areas and distant subjects.
Overall, the IPC6624SR-X33-VF combines 4MP imaging, 33X optical zoom, 16X digital zoom, 120dB WDR, 150m IR, intelligent tracking, Smart Intrusion Prevention, people counting, two-way audio, MicroSD storage, PoE+ and IP66 protection in a powerful long-range PTZ network camera.
