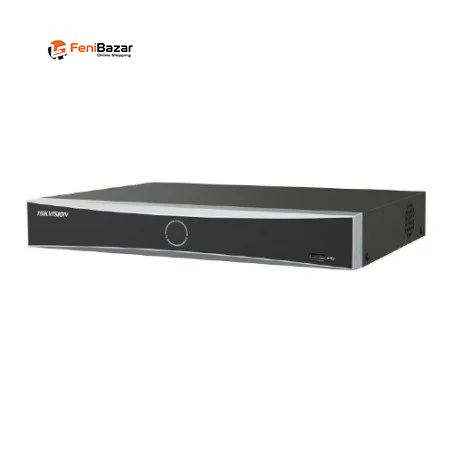

16-Channel 12MP Network Video Recorder with AcuSense, AI Detection & 16TB HDD Support
This 16-Channel Network Video Recorder is a powerful surveillance recording solution designed for professional IP camera systems. It supports 16 IP video channels, recording resolution up to 12MP, and advanced smart surveillance features including AcuSense, AI-based human and vehicle detection, facial recognition, perimeter protection, and Motion Detection 2.0.
With 160 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth, the recorder is designed to handle high-bandwidth IP video streams while providing reliable network performance. It also supports up to 16-channel synchronous playback, making it suitable for multi-camera monitoring and surveillance review.
The recorder supports up to 16 IP video channels and recording resolution up to 12MP. It supports H.265+, H.265, H.264+, and H.264 video compression formats for efficient video recording and storage management.
The high recording resolution provides detailed video footage, while efficient compression helps optimize available HDD storage capacity.
For efficient IP video transmission, the recorder provides:
160 Mbps incoming bandwidth
256 Mbps outgoing bandwidth
1× RJ45 Gigabit Ethernet port
TCP/IP, DHCP, DNS, DDNS and NTP support
Hik-Connect support
These network capabilities provide reliable connectivity for IP surveillance systems and remote monitoring applications.
The recorder includes several smart surveillance technologies for improved monitoring and event management. Supported features include:
AI-based Human Detection
AI-based Vehicle Detection
AcuSense Technology
Smart Search
Facial Recognition
Motion Detection 2.0
Perimeter Protection
Line Crossing Detection
Intrusion Detection
Smart Alerts
These features help users identify important events more efficiently and improve surveillance management.
The recorder supports up to 16-channel synchronous playback, allowing multiple camera recordings to be reviewed simultaneously. It also supports smart/event playback for easier review of recorded surveillance footage.
For backup, recorded footage can be exported through USB devices or the network.

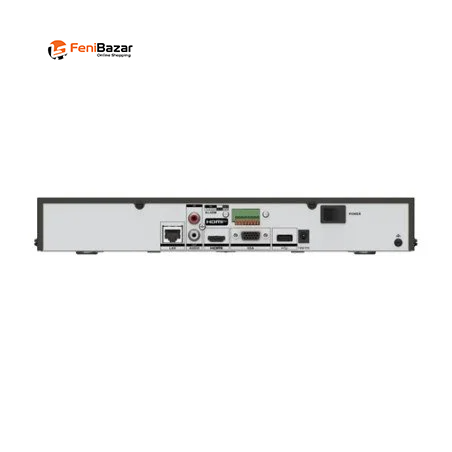

The recorder features both HDMI and VGA display outputs.
HDMI output up to 4K resolution
VGA output up to 1080P
Simultaneous HDMI/VGA display
This allows compatible displays to be connected for convenient live monitoring and playback.
The recorder features 1 SATA interface and supports up to 16TB HDD capacity, providing substantial storage for surveillance recordings.
Combined with H.265+ compression technology, the system can make more efficient use of available storage space for longer recording periods.
The recorder provides:
1× audio input
1× audio output
Synchronized audio-video recording
Two-way audio support
This allows compatible IP camera systems to support both video and audio surveillance functions.
The recorder includes a 10/100/1000 Mbps RJ45 network interface and supports multiple network protocols and services, including TCP/IP, DHCP, DNS, DDNS, NTP, and Hik-Connect.
It also supports up to 128 remote users, providing flexible remote access for surveillance monitoring and management.
The recorder operates on an Embedded Linux OS and features an easy-to-use GUI with multi-language support. Its compact 1U design helps maintain a practical form factor for professional surveillance installations.
Power consumption is rated at ≤10W without HDD, helping maintain efficient operation.
16 IP Video Channels
Up to 12MP Recording Resolution
160 Mbps Incoming Bandwidth
256 Mbps Outgoing Bandwidth
AcuSense Technology
AI-Based Human & Vehicle Detection
Facial Recognition Support
Motion Detection 2.0
Perimeter Protection
Line Crossing & Intrusion Detection
Smart Search & Smart Alerts
Up to 16-Channel Synchronous Playback
Smart/Event Playback
4K HDMI Output
1080P VGA Output
1× RJ45 10/100/1000 Mbps Ethernet Port
1× SATA Interface
Up to 16TB HDD Capacity
H.265+ / H.265 / H.264+ / H.264 Compression
1× Audio Input & 1× Audio Output
USB & Network Backup
Up to 128 Remote Users
Embedded Linux OS
Multi-Language GUI
Compact 1U Design
≤10W Power Consumption Without HDD
1-Year Warranty
| Specification | Details |
|---|---|
| IP Camera Input | 16 IP Video Channels |
| Recording Resolution | Up to 12MP |
| Incoming Bandwidth | Up to 160 Mbps |
| Outgoing Bandwidth | Up to 256 Mbps |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| HDMI Output | Up to 4K |
| VGA Output | Up to 1080P |
| Display | Simultaneous HDMI/VGA Display |
| Playback | Up to 16-Channel Synchronous Playback |
| Backup | USB Device / Network |
| HDD Interface | 1× SATA |
| HDD Capacity | Up to 16TB |
| Network Interface | 1× RJ45 10/100/1000 Mbps |
| Audio Input | 1× |
| Audio Output | 1× |
| Two-Way Audio | Supported |
| Smart Features | AcuSense, Human & Vehicle Detection, Facial Recognition, Smart Search |
| Video Detection | Motion Detection 2.0, Perimeter Protection, Line Crossing, Intrusion Detection |
| Network Protocols | TCP/IP, DHCP, DNS, DDNS, NTP, Hik-Connect |
| Remote Users | Up to 128 |
| Operating System | Embedded Linux |
| GUI | Multi-Language Support |
| Design | Compact 1U |
| Power Consumption | ≤10W Without HDD |
| Warranty | 1 Year |
This 16-Channel 12MP Network Video Recorder is suitable for IP camera surveillance systems requiring high-resolution recording, multiple camera channels, large-capacity storage, remote access, and smart event detection.
Overall, this recorder combines 16-channel IP camera support, up to 12MP recording, 160 Mbps incoming bandwidth, 256 Mbps outgoing bandwidth, 16TB HDD support, 4K HDMI output, 16-channel synchronous playback, and AcuSense smart surveillance features in a compact 1U design.
