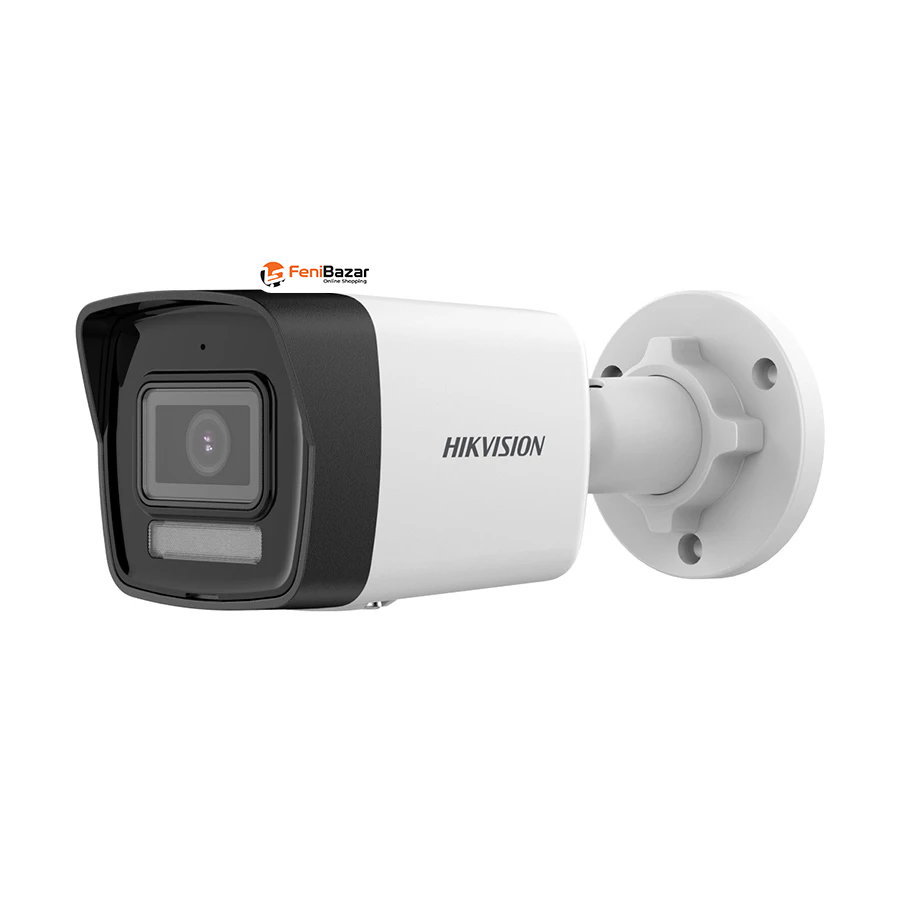

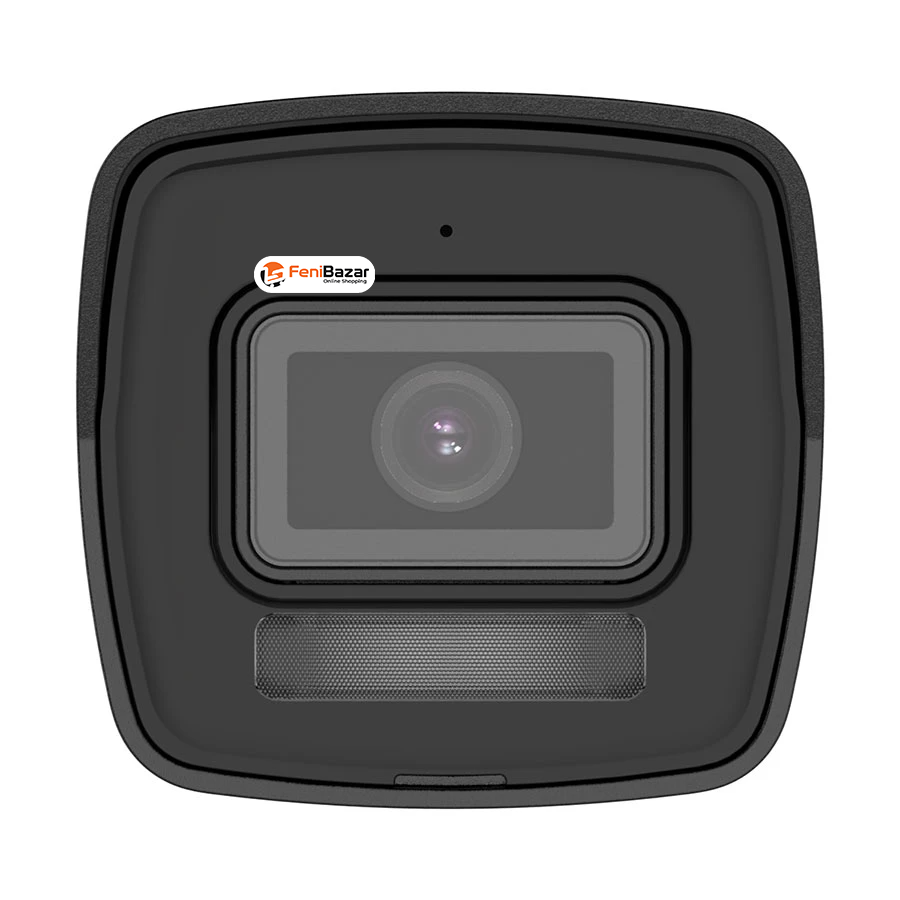

The Hikvision DS-2CD1023G2-LIU is a 2MP Outdoor IP Camera designed for reliable security monitoring with Full HD video, color night vision, human detection, motion detection, and flexible PoE connectivity. It features a 1920 × 1080 maximum resolution and a single 4mm lens, providing a wide viewing angle for effective surveillance coverage.
The camera features a 2.0MP image resolution with a maximum resolution of 1920 × 1080, delivering clear and detailed Full HD video for everyday security monitoring.
The DS-2CD1023G2-LIU supports Color Night Vision, allowing the camera to capture color images in low-light environments. It provides a 30-meter working distance, helping cover larger outdoor surveillance areas.
Equipped with a 4mm single primary lens, the camera provides the following field of view:
Horizontal FOV: 103°
Vertical FOV: 56°
Diagonal FOV: 121°
This wide viewing angle helps monitor entrances, outdoor areas, pathways, shops, and other important surveillance locations.
The camera supports Human Detection along with Motion Detection, helping users monitor movement and identify human activity within the surveillance area.
The camera features a built-in microphone, allowing compatible surveillance systems to capture audio along with video. It has microphone-only audio support, with no speaker specified.
The camera supports both 12V DC power and PoE connectivity. It supports IEEE 802.3af PoE, Class 3, with a maximum PoE power consumption of 6.5W.
The DC power specification includes 12VDC ±25%, 0.4A, maximum 5W, a 5.5mm coaxial power plug, and reverse polarity protection.
Designed for outdoor use, the Hikvision DS-2CD1023G2-LIU provides a practical surveillance solution for areas that require continuous security monitoring.
The camera measures 170.8 × 66 × 69.1mm and weighs approximately 265g.
Hikvision DS-2CD1023G2-LIU
2MP IP Camera
1920 × 1080 Maximum Resolution
4mm Single Lens
Color Night Vision
Up to 30m Working Distance
103° Horizontal FOV
56° Vertical FOV
121° Diagonal FOV
Human Detection
Motion Detection
Built-in Microphone
No Wi-Fi
No SIM Support
No Card Slot
IEEE 802.3af PoE, Class 3
12VDC ±25% Power Support
Maximum 5W DC Power Consumption
Maximum 6.5W PoE Power Consumption
5.5mm Coaxial Power Plug
Reverse Polarity Protection
Outdoor Use
Dimensions: 170.8 × 66 × 69.1mm
Weight: 265g
The Hikvision DS-2CD1023G2-LIU 2MP IP Camera is suitable for:
Outdoor home security
Office surveillance
Shop and retail monitoring
Warehouse security
Commercial premises
Entrance monitoring
Pathway and perimeter monitoring
General outdoor CCTV installations
Overall, the Hikvision DS-2CD1023G2-LIU 2MP Outdoor IP Camera combines Full HD resolution, Color Night Vision, human and motion detection, built-in microphone, a wide 103° horizontal viewing angle, and IEEE 802.3af PoE support to provide a practical solution for outdoor security surveillance.
