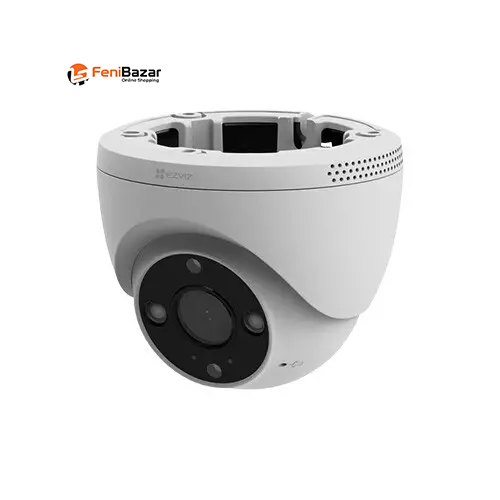

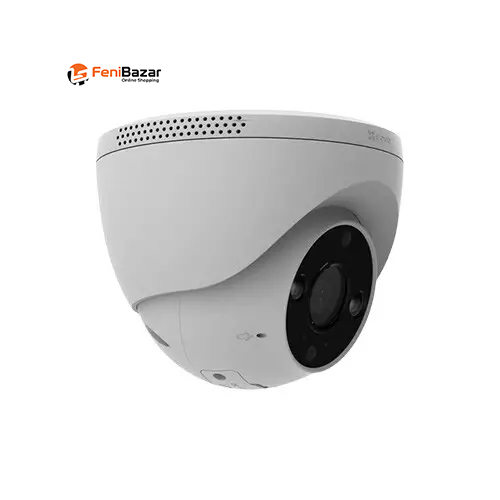

3MP Outdoor IP Camera with 30m Color Night Vision & IP67
2304 × 1296 Resolution, 2.8mm Lens, 106° Horizontal FOV
AI Human & Vehicle Detection, Wi-Fi, Two-Way Audio & MicroSD
| Camera | |
| Image Sensor | 1/2.8” Progressive Scan CMOS |
|---|---|
| Number of Cameras | 1 |
| Camera Resolution | 3MP |
| Maximum Resolution | 2304 × 1296 |
| Shutter Speed | Self-Adaptive Shutter |
| Lens Type | Single Lens (Primary) |
| Lens | 2.8mm |
| Lens & Viewing Angle | |
| Horizontal Viewing Angle | 106° |
| Diagonal Viewing Angle | 122° |
| Night Vision & Image | |
| Night Vision Mode | Color |
| IR Distance | Up to 30m |
| Video | |
| Video Resolution | 2K (2304 × 1296) |
| Video Output | H.265 / H.264 |
| Video Recording Frame Rate | 15fps |
| Storage | |
| Storage | HDD Memory Card |
| Card Slot | Yes |
| Networking & Connectivity | |
| LAN | RJ45 × 1 |
| Ethernet | 10M / 100M Adaptive Ethernet Port |
| Wi-Fi | Yes |
| Smart Alarm | |
| Motion Detection | Supported |
| AI Human Shape Detection | Supported |
| Vehicle Shape Detection | Supported |
| Audio | |
| Microphone | Built-in |
| Speaker | Built-in |
| Power | |
| Maximum Power Consumption | 8W |
| Special Features | |
| Water Resistant | IP67 |
| Operating Environment | |
| Operating Temperature | -30°C to 50°C |
| Physical Specification | |
| Color | White |
| Dimensions | 106 × 106 × 90mm |
| Weight | 229g |
| Warranty | |
| Warranty | 1 Year |
This 3MP smart IP camera delivers clear 2K video resolution at 2304 × 1296 with a 1/2.8” Progressive Scan CMOS sensor and a 2.8mm single primary lens. It provides a 122° diagonal and 106° horizontal viewing angle, offering a broad field of view for security monitoring.
The camera features color night vision with an IR distance of up to 30 meters, helping maintain visibility in low-light conditions. It also includes a built-in microphone and speaker for audio communication and supports MicroSD card storage for local recording.
For connectivity, the camera supports both Wi-Fi and wired networking through an RJ45 10/100M adaptive Ethernet port. Video is compressed using H.265/H.264, with recording at up to 15fps, while the self-adaptive shutter helps adjust image capture according to lighting conditions.
The camera also supports smart alarm functions, including motion detection, AI-powered human shape detection, and vehicle shape detection. With an IP67 water-resistant rating and an operating temperature range of -30°C to 50°C, it is designed for reliable security monitoring in demanding environments.
