FHD 2MP Wi-Fi Pan & Tilt Smart Security Camera
4mm Lens, Human Detection & Tracking, 3D DNR & Digital WDR
Two-Way Audio, 512GB Storage, Loud Noise Detection & Patrol Mode
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Maximum Resolution | FHD 1920 × 1080 |
| Frame Rate | Self-Adaptive During Network Transmission |
| Lens | 4mm |
| Pan & Tilt | Yes |
| Field of View | Horizontal 82°, Vertical 48°, Diagonal 98° |
| IR Cut Filter | Automatic Switch |
| Video Compression | H.264 / H.265 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Self-Adaptive Shutter | Yes |
| Night Vision Mode | Yes |
| Smart Features | |
| Motion Detection | Yes |
| Human Shape Detection | Yes |
| Human Shape Tracking | Yes |
| Loud Noise Detection | Yes |
| Patrol Mode | Yes |
| Audio | |
| Audio Input / Output | Yes |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Storage | |
| Storage Capacity | Up to 512GB |
| Cloud | EZVIZ Cloud Proprietary Protocol |
| Network & Connectivity | |
| Wireless Network | WiFi |
| WiFi Standard | IEEE 802.11b / 802.11g / 802.11n |
| Frequency | 2.4GHz – 2.4835GHz |
| AP Pairing | Yes |
| Wired Network | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Wireless Security | WPA / WPA2, WPA-PSK / WPA2-PSK |
| Power | |
| Power Port | Type-C |
| Power Supply | DC 5V / 2A |
| Power Consumption | 5W |
| Physical Specification | |
| Color | White |
| Dimensions | 88 × 88.2 × 119mm |
| Weight | 656g |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | ≤95%, Non-Condensing |
| Warranty | |
| Warranty | 2 Years |

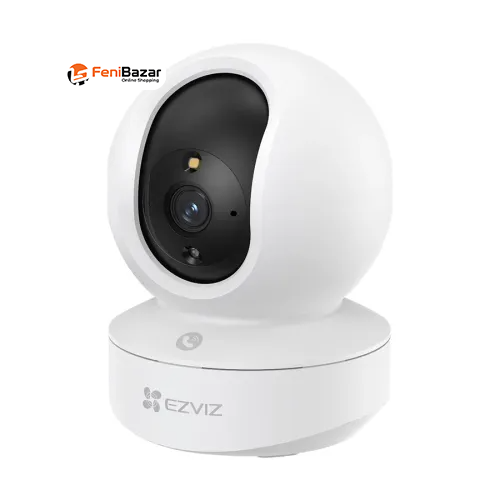

The EZVIZ TY1 Pro FHD WiFi Smart Dome IP Camera is an indoor surveillance camera featuring a 1/2.7" Progressive Scan CMOS sensor with Full HD 1920 × 1080 resolution. Its 4mm lens provides an 82° horizontal, 48° vertical, and 98° diagonal field of view, while pan and tilt functionality enables flexible monitoring of indoor areas.
The camera supports H.264/H.265 video compression, 3D DNR, and Digital WDR for improved image quality in different lighting conditions. It also features an IR-cut filter with automatic switching and a night vision mode for monitoring in low-light environments.
Smart features include motion detection, human shape detection, human shape tracking, loud noise detection, and patrol mode. The built-in microphone and speaker support audio communication, while the self-adaptive shutter and network-adaptive frame rate help maintain reliable video transmission.
For connectivity, the TY1 Pro supports 2.4GHz WiFi, IEEE 802.11b/g/n, AP pairing, and a 10/100M self-adaptive RJ45 Ethernet port. It supports up to 512GB storage and EZVIZ cloud proprietary protocol. The camera uses Type-C power with a 5W power consumption and operates from -10°C to 45°C.
