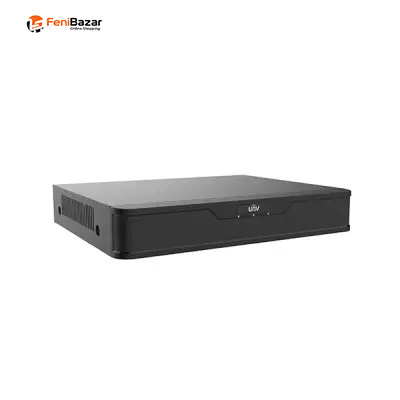

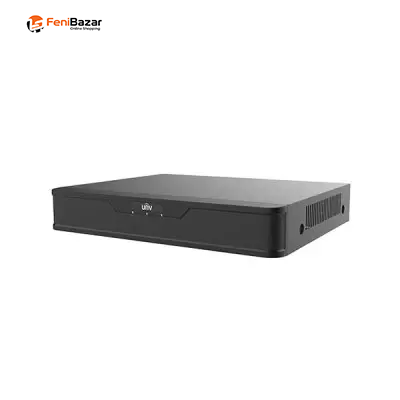

The Uniview XVR301-16G3 is a 16-channel XVR designed for hybrid CCTV surveillance systems. It features 16-channel BNC analog video input and 8-channel IP video input, with support for up to 16 IP channels after analog camera conversion. The XVR supports multiple analog camera formats including AHD, TVI, CVI, and CVBS, making it suitable for upgrading and managing different types of surveillance cameras.
The XVR supports 16 analog BNC channels and 8 IP channels, with the IP capacity expandable up to 16 channels after analog camera conversion.
Supported analog camera formats include:
AHD: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
TVI: 5MP@12fps, 4MP@15fps, 1080P@30fps, 720P@30fps
CVI: 1080P@30fps, 720P@30fps
CVBS: Supported
The IP capability supports up to 8MP@30fps for 1 channel, 4MP@30fps for 2 channels, and 1080P@30fps for 4 channels.
The XVR supports recording resolutions including 5MP Lite, 4MP Lite, 1080P Lite, 720P, D1, and CIF.
Main-stream recording supports:
5MP Lite@6fps
4MP Lite@8fps
1080P Lite@12fps
720P@12fps
The device supports 8-channel HD synchronous playback and 16-channel SD synchronous playback, allowing multiple recorded channels to be reviewed simultaneously.
The XVR301-16G3 provides both HDMI and VGA outputs, supporting resolutions up to 1920×1080 at 60Hz. Additional supported resolutions include 1600×1200, 1280×1024, 1280×720, and 1024×768.
Live-view display options through HDMI/VGA include 1, 4, 6, 8, 9, 16, and 25-channel layouts.
The XVR includes 1 SATA interface and supports up to 8TB for each HDD. The maximum supported HDD capacity can vary depending on the operating environment and temperature.
The XVR supports G.711U audio compression with an 8KHz, 16-bit per-channel sample rate and 64Kbps per-channel audio bitrate.
Audio connectivity includes:
1× RCA audio input
1× RCA audio output
1× RCA two-way audio interface
This allows compatible surveillance systems to support audio recording and two-way audio communication.
The XVR provides 40Mbps incoming bandwidth, increasing to up to 56Mbps after all analog camera conversion, along with 64Mbps outgoing bandwidth.
Network connectivity is provided through 1× RJ45 10/100Mbps self-adaptive Ethernet interface. Supported network protocols include TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, and SMTP.
The device supports up to 128 remote users and works with supported versions of Internet Explorer, Firefox, Chrome, and Microsoft Edge on Windows.
For surveillance event management, the XVR supports motion detection along with alert events such as IP conflict, network disconnection, disk offline or abnormal status, illegal access, low/full HDD space, and recording/snapshot abnormalities.
It also supports Ultra Motion Detection (UMD) on 8 analog channels and Behavior Search for VCA-based video analysis.
The XVR supports 16-channel snapshots with a maximum resolution of 704×576. Schedule snapshot is not supported.
For external devices and backup, the rear panel provides 2× USB 2.0 ports. It also includes 1× RS485 serial interface for compatible applications.
The XVR operates on 12V DC power with power consumption of ≤10W without HDD. It supports an operating temperature range of -10°C to +55°C and humidity up to 90% RH, non-condensing.
The compact chassis measures 260 × 226 × 47mm and weighs ≤1.1kg.
The Uniview XVR301-16G3 is certified with UL, CE, FCC, RoHS, and WEEE standards and comes with a 1-Year Brand Warranty.
Uniview XVR301-16G3
16-Channel 1 SATA XVR
16-channel BNC analog video input
8-channel IP video input
Up to 16 IP channels after analog camera conversion
AHD, TVI, CVI & CVBS support
Up to 8MP IP camera capability
5MP Lite / 4MP Lite / 1080P Lite / 720P / D1 / CIF recording
1 SATA interface
Up to 8TB HDD capacity
HDMI & VGA video output
