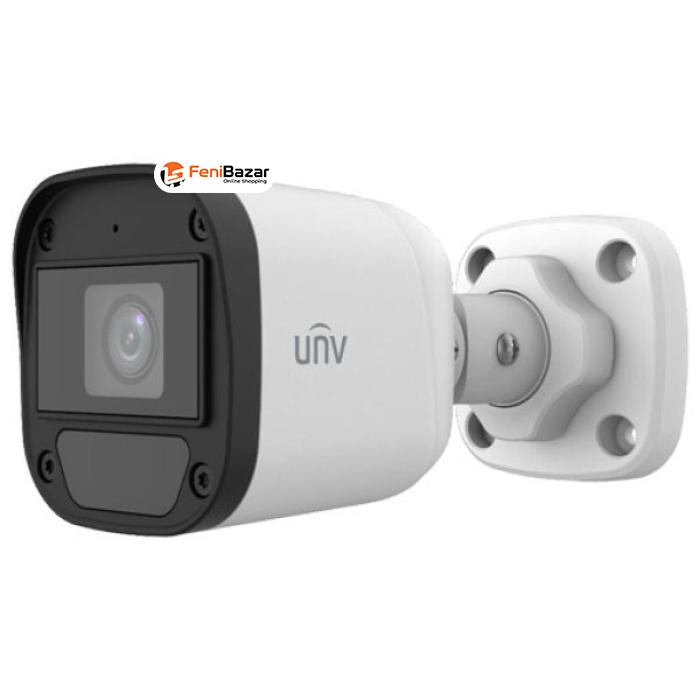

Uniview UAC-T112-AF28-DL / AF40-DL 2MP Dual-Light Analog Camera with 20m IR & White Light 2MP 1920×1080, 2.8mm/4mm Fixed M12 Lens, Built-in Mic & TVI/AHD/CVI/CVBS Support DWDR, 2D/3D DNR, IP67 Protection & 4KV Surge Protection with 20m Dual-Light
The UAC-T112-AF28-DL and UAC-T112-AF40-DL are 2MP analog security cameras featuring a 1/3.0" CMOS sensor, Full HD 1920 × 1080 resolution, dual-light illumination, built-in microphone, and support for TVI, AHD, CVI, and CVBS video output. The two models mainly differ in their fixed focal length, with the AF28 version using a 2.8mm lens and the AF40 version using a 4.0mm lens.
Both models feature a 1/3.0" CMOS sensor with a maximum resolution of 2MP. The cameras support 1080P and 720P video resolutions.
Minimum illumination is 0.01 lux at F2.0 with AGC enabled, while illumination reaches 0 lux when the illuminator is active.
The two models offer different fixed lens options:
| Model | Lens | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|---|
| UAC-T112-AF28-DL | 2.8mm | 91.5° | 51.2° | 106.3° |
| UAC-T112-AF40-DL | 4.0mm | 75.1° | 41.8° | 86.2° |
Both cameras use an M12 lens mount. The 2.8mm version provides a wider viewing angle, while the 4.0mm version offers a narrower field of view.
The cameras use a combination of two IR illuminators and one white-light illuminator. Both IR and white-light illumination provide a distance of up to 20 meters.
Three light modes are available:
Dual Light
Infrared
White Light
The illuminators have a rated lifetime of ≥60,000 hours.
The cameras provide a BNC video output supporting multiple analog video formats:
TVI
AHD
CVI
CVBS
TVI, AHD, and CVI support 1080P@25/30fps and 720P@25/30fps, while CVBS supports PAL and NTSC.
Both models feature a built-in microphone. Camera audio is supported through compatible TVI and CVI connections at 1080P@25fps and 1080P@30fps.
The cameras provide several image adjustment functions for different lighting conditions, including:
Global Exposure
BLC
HLC
DWDR
2D/3D Digital Noise Reduction
Auto/Manual White Balance
Auto/Day/Night modes
180° Horizontal Flip
180° Vertical Flip
The default exposure mode is Global, while the default day/night mode is Auto and the default light mode is Dual Light.
The cameras feature IP67 protection according to IEC 60529, making them suitable for installations requiring protection against dust and water ingress.
They also provide 4KV surge protection for the power interface and 4KV surge protection for the video output interface.
The operating temperature range is -30°C to 60°C, with humidity up to 95% RH, non-condensing.
The cameras feature a plastic housing and support multiple mounting methods:
Wall Mount
Pole Mount
Corner Mount
