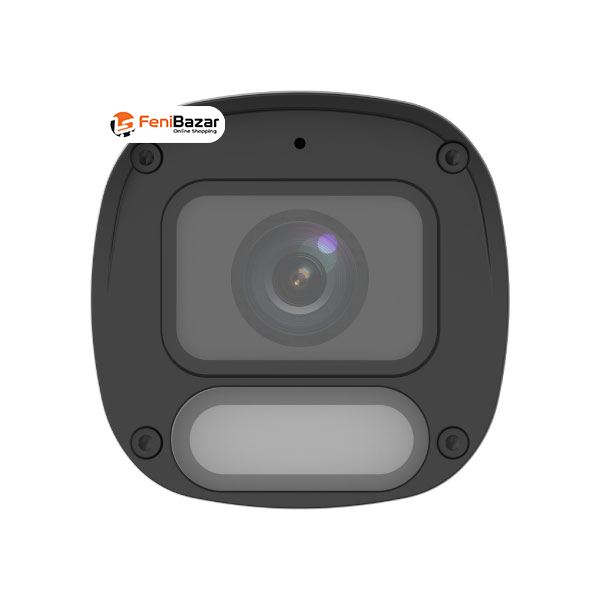

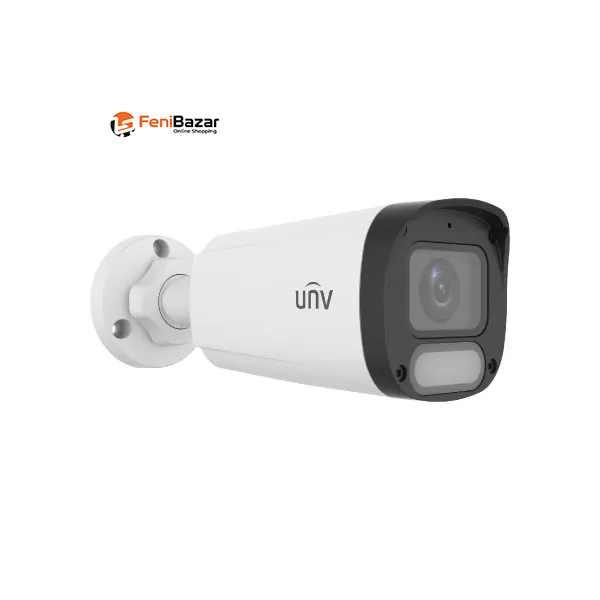

UNV IPC2314LE-ADF40K-WP-L 4MP OwlView Wise-ISP Fixed Warm-Light Bullet Network Camera

4MP ColorHunter PoE IP Camera with 120dB WDR, F1.0 Lens & 30m Warm Light

This 4MP PoE IP Camera is designed for high-quality network surveillance with a 1/1.8" CMOS sensor, ultra-low 0.0003 Lux color illumination, 120dB WDR, and ColorHunter with Wise-ISP technology. Its 4mm F1.0 fixed lens and 30m warm-light illumination provide enhanced visibility for surveillance in low-light environments.

4MP Image Quality with ColorHunter Technology

The camera delivers up to 4MP resolution at 2560 × 1440 @ 25fps using a 1/1.8" CMOS sensor. With a minimum color illumination of just 0.0003 Lux at F1.0 with AGC ON, it is designed for excellent low-light color surveillance.

ColorHunter with Wise-ISP and Smart Illumination further enhance low-light imaging, while 120dB WDR helps maintain details in scenes with strong differences between bright and dark areas.

4mm F1.0 Fixed Lens

The camera features a 4.0mm fixed lens with F1.0 aperture, providing a wide 92.1° horizontal, 49.0° vertical, and 108.3° diagonal field of view.

The camera offers DORI distances of:

• Detect: Up to 62.1m

• Observe: Up to 24.8m

• Recognize: Up to 12.4m

• Identify: Up to 6.2m

30m Warm-Light Illumination

The camera features warm-light supplemental illumination with a range of up to 30m (98.4ft). Light control can be configured through Auto/Manual modes, providing flexible illumination for nighttime surveillance.

Advanced Image Enhancement

Image enhancement features include 2D/3D DNR, HLC, BLC, Digital Defog, Smart Illumination, and multiple white-balance modes. These functions help optimize image quality across different lighting conditions.

Efficient Video Compression & Storage

The camera supports Ultra 265, H.265, H.264, and MJPEG video compression. It supports dual video streams, U-Code, ROI, up to 4 OSDs, and up to 4 privacy mask areas.

For local recording, the camera supports MicroSD cards up to 512GB. It also supports ANR and NAS (NFS) network storage.

Built-in Microphone & Audio Detection

A built-in microphone supports audio capture, with G.711U and G.711A audio compression at 64Kbps. The camera also supports audio detection and audio suppression. Two-way audio is not supported.

Smart Detection & Network Integration

The camera supports Motion Detection, Ultra Motion Detection, Tampering Alarm, and Audio Detection. Security functions include watermark, IP address filtering, access policy, ARP protection, RTSP authentication, and user authentication.

With ONVIF Profile S, G, and T, along with API and SDK support, the camera can integrate with compatible surveillance systems and VMS platforms.

PoE Connectivity & IP67 Protection

The camera supports both DC 12V ±25% power and IEEE 802.3af PoE, allowing flexible installation options. Network connectivity is provided through 1× RJ45 10/100M Base-TX Ethernet.

The IP67 protection rating helps protect the camera against dust and water. Its 3-axis adjustment provides flexible positioning, while the operating temperature range of -30°C to 60°C and 4KV surge protection support reliable operation in demanding environments.

Key Features

• 4MP PoE IP Camera

• 1/1.8" CMOS Sensor

• 2560 × 1440 @ 25fps

• 0.0003 Lux Color Illumination

• 120dB WDR

• ColorHunter with Wise-ISP

• 4mm F1.0 Fixed Lens

• 92.1° Horizontal FOV

• 30m Warm-Light Illumination

• Smart Illumination

• 2D/3D DNR

• HLC & BLC

• Digital Defog

• Built-in Microphone

• Motion & Ultra Motion Detection

• Audio Detection & Tampering Alarm

• MicroSD Support up to 512GB

• ANR & NAS (NFS)

• Ultra 265 / H.265 / H.264 / MJPEG

• Dual Video Streams

• ROI & U-Code Support

• ONVIF Profile S/G/T

• API & SDK Support

• IEEE 802.3af PoE

• 1× RJ45 10/100M Ethernet

• IP67 Protection

• 3-Axis Adjustment

• 4KV Surge Protection

• Maximum Power Consumption: 3.5W
