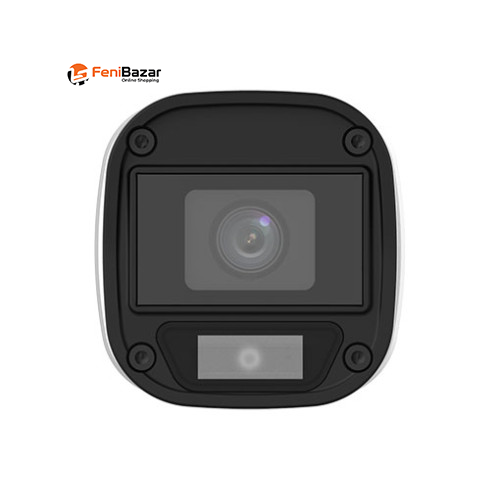

Uniview UAC-T122-AF28M-W 2MP White-Light Analog Camera with 40m Illumination & Built-in Mic
1920×1080 Full HD, 2.8mm M12 Fixed Lens, 101.5° Viewing Angle & TVI/AHD/CVI/CVBS Support
24/7 Color Imaging, DWDR, 2D/3D DNR, Digital Defog, 4KV Surge Protection & IP67
| Uniview UAC-B115-F40 Specification | |
| Camera Features | |
| Model | UAC-B115-F40 |
|---|---|
| Camera Type | Bullet Analog Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Effective Pixels | 5 Megapixel |
| Resolution | 2880 × 1620 |
| IR Distance | Up to 20m |
| Lens | |
| Lens | 4mm Fixed Lens |
| Horizontal Angle of View | 82.5° |
| Vertical Angle of View | 42.1° |
| Diagonal Angle of View | 98.6° |
| Video | |
| Video Output | TVI / AHD / CVI / CVBS |
| Image Features | |
| BLC | Supported |
| HLC | Supported |
| DWDR | Supported |
| 2D Noise Reduction | Supported |
| Smart IR | Supported |
| Physical Specification | |
| Dimension | 142 × 63 × 65mm (L × W × H) |
| Weight | 145g (0.32lb) |
| Material/Design | Weatherproof Housing |
| Ingress Protection | IP67 |
| Power | |
| Power Supply | DC12V ±25% |
| Power Consumption | Max. 2.4W |
| Reverse Polarity Protection | Supported |
| Surge Protection | Supported |
| Power Interface | 5.5mm |
| Warranty | |
| Warranty | 1 Year |
The Uniview UAC-B115-F40 Bullet Analog Camera is a 5MP surveillance camera designed to deliver clear and detailed video for reliable security monitoring. It features a 1/3" Progressive Scan CMOS sensor with an effective resolution of 2880 × 1620 pixels, providing high-quality imaging for various surveillance applications.
The camera uses a 1/3" Progressive Scan CMOS sensor and delivers 5MP resolution (2880 × 1620) for detailed video capture. This makes it suitable for monitoring areas where higher image detail is required.
The camera is equipped with a 4mm fixed lens and provides a viewing angle of 82.5° horizontal, 42.1° vertical, and 98.6° diagonal. Its integrated infrared illumination supports an IR distance of up to 20 meters, helping maintain visibility in low-light conditions.
The UAC-B115-F40 supports multiple analog video formats, including TVI, AHD, CVI, and CVBS, providing compatibility with different analog surveillance systems.
The camera supports image enhancement features including BLC, HLC, DWDR, 2D noise reduction, and Smart IR, helping improve image quality under different lighting conditions.
With a weatherproof IP67 design, the camera is built to provide reliable operation in demanding environments. Its compact housing measures 142 × 63 × 65mm and weighs only 145g.
The camera operates on DC12V ±25% and has a maximum power consumption of 2.4W. It also includes reverse polarity protection and surge protection for improved power-related reliability.
5MP resolution (2880 × 1620)
1/3" Progressive Scan CMOS sensor
4mm fixed lens
82.5° horizontal viewing angle
Up to 20m IR distance
TVI / AHD / CVI / CVBS support
BLC, HLC & DWDR
2D noise reduction
Smart IR
IP67 weatherproof design
DC12V ±25% power supply
Reverse polarity protection
Surge protection
Maximum 2.4W power consumption
145g lightweight design
1-year warranty
