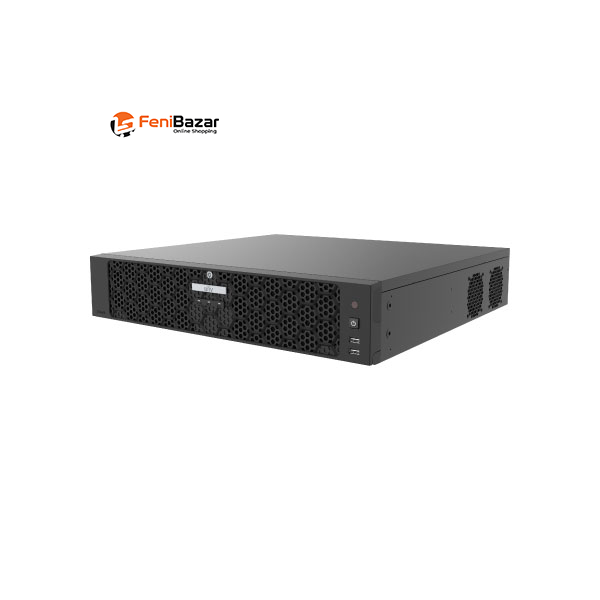

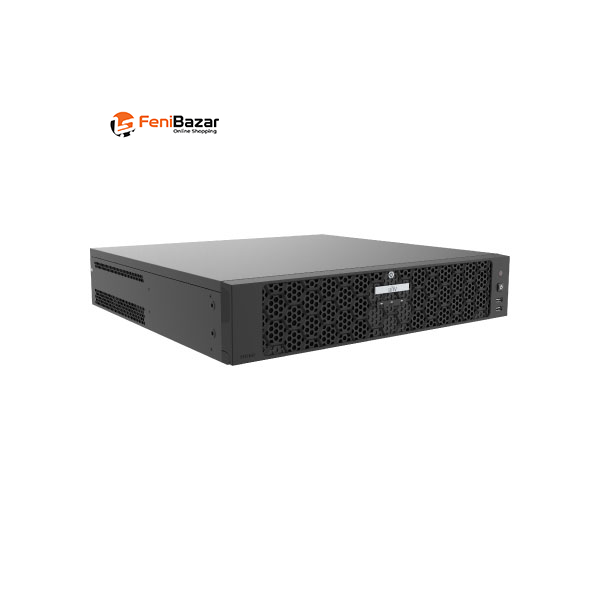

Uniview NVR508-64E-R-IQ 64-Channel 4K Smart NVR

This 32/64-Channel 32MP NVR is a high-performance network video recorder designed for professional and large-scale surveillance systems. It supports Ultra 265, H.265, and H.264 video formats and can record IP camera footage at resolutions of up to 32 Megapixels, making it suitable for high-resolution security monitoring applications.

32/64-Channel IP Camera Support

The NVR is available with 32-channel or 64-channel IP video input, allowing users to build surveillance systems with multiple network cameras. It supports mainstream IP cameras compliant with ONVIF Profile S, Profile G, and Profile T, along with RTSP protocols, providing broad compatibility with supported network cameras and surveillance devices.

Dual HDMI & Dual VGA Outputs

For flexible monitoring and multi-display applications, the NVR supports 2 HDMI outputs and 2 VGA outputs.

• VGA1 + HDMI1: Simultaneous output

• VGA2 + HDMI2: Simultaneous output

• VGA1/HDMI1 and VGA2/HDMI2: Can be configured for independent output

This dual-display output configuration allows users to operate multiple monitoring screens according to their surveillance requirements.

Up to 32MP Recording

The NVR supports recording at resolutions of up to 32 Megapixels, allowing compatible high-resolution IP cameras to deliver detailed surveillance footage. Combined with Ultra 265/H.265/H.264 video compression, it is designed to efficiently handle high-resolution network video recording.

N+1 Hot Spare Support

The NVR supports N+1 Hot Spare, providing an additional recorder-based redundancy option for improving system availability and operational reliability in larger surveillance deployments.

HDD Hot Swap & RAID Storage

For enhanced storage flexibility and reliability, the NVR supports HDD hot swap and configurable RAID storage schemes, including:

• RAID 0

• RAID 1

• RAID 5

• RAID 6

• RAID 10

These configurable storage schemes allow the recording system to be arranged according to different storage performance and redundancy requirements.

Optional Redundant Power Supply

A redundant power supply is available as an optional feature, providing an additional power redundancy option for installations where higher system availability is required.

ANR Technology

The NVR supports ANR (Automatic Network Replenishment) technology, which helps enhance storage reliability when network connectivity between the NVR and supported IP cameras is interrupted. This provides an additional mechanism for maintaining recorded video availability during network disconnection scenarios.

Cloud Upgrade Support

The NVR supports cloud upgrade, providing a convenient way to update the system firmware through supported cloud-based upgrade functionality.

Key Features

• 32/64-channel IP camera input

• Up to 32MP recording resolution

• Ultra 265 / H.265 / H.264 video format support

• ONVIF Profile S/G/T support

• RTSP protocol support

• 2× HDMI and 2× VGA outputs

• VGA1 + HDMI1 simultaneous output

• VGA2 + HDMI2 simultaneous output

• VGA1/HDMI1 and VGA2/HDMI2 independent output

• N+1 Hot Spare support

• HDD Hot Swap support

• RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10

• Optional redundant power supply

• ANR technology

• Cloud upgrade support

Specification Table

Ideal Applications

This 32/64-Channel 32MP NVR is suitable for:

• Large-scale CCTV systems

• Commercial surveillance

• Office and corporate security

• Warehouses and industrial facilities

• Multi-camera monitoring systems

• High-resolution IP camera installations

• Professional surveillance control rooms

• Systems requiring RAID storage and redundancy

Overall, this 32/64-Channel 32MP NVR provides a professional surveillance recording platform with 32MP recording, ONVIF S/G/T compatibility, dual HDMI and VGA outputs, N+1 Hot Spare, HDD Hot Swap, multiple RAID configurations, ANR technology, optional redundant power supply, and cloud upgrade support.
