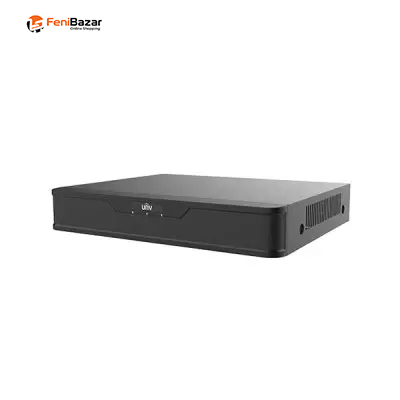

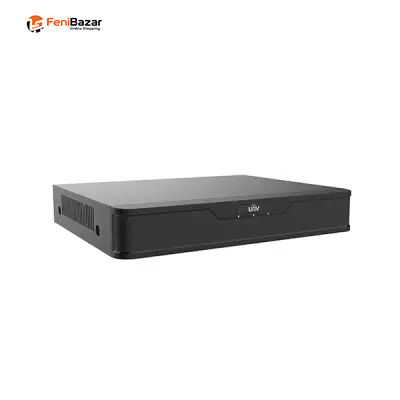

Uniview XVR301-04G3 4-Channel 1-SATA XVR

Uniview XVR301-04G3 4-Channel 1 SATA XVR with 5MP Lite Recording & 8TB HDD Support

The Uniview XVR301-04G3 is a 4-channel XVR designed for hybrid CCTV surveillance systems. It features 4-channel BNC analog video input and 2-channel IP video input, with support for up to 6 IP channels after analog channel conversion. The XVR supports AHD, TVI, CVI, and CVBS camera inputs, providing flexible compatibility for different surveillance installations.

Multi-Format Analog & IP Camera Support

The XVR supports 4 analog BNC channels and 2 IP channels, with the IP capacity expandable up to 6 channels after analog camera conversion. Each IP channel supports up to 4MP resolution.

Supported analog camera formats include:

• AHD: 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps

• TVI: 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps

• CVI: 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps

• CVBS: Supported

Flexible Recording & Playback

The XVR supports 5MP Lite, 4MP Lite, 1080P, 720P, and CIF recording resolutions.

Main-stream recording supports:

• 5MP Lite@12fps

• 4MP Lite@15fps

• 1080P@15fps

• 720P@25fps

The device supports 2-channel HD synchronous playback and 4-channel SD synchronous playback.

HDMI & VGA Video Output

The XVR301-04G3 provides both HDMI and VGA outputs, supporting resolutions up to 1920×1080p at 60Hz. Additional supported resolutions include 1600×1200, 1280×1024, 1280×720, and 1024×768.

Live-view display options through HDMI/VGA include 1, 4, 6, 8, and 9-channel layouts.

1 SATA Interface with Up to 8TB HDD Support

The XVR features 1 SATA interface and supports up to 8TB for each HDD. The maximum supported HDD capacity may vary depending on the operating environment and temperature.

Audio & Two-Way Audio

The XVR supports G.711U audio compression with an 8KHz, 16-bit per-channel audio sample rate and 64Kbps per-channel audio bitrate.

It provides:

• 1× RCA audio output

• 1× RCA two-way audio interface

Network Connectivity & Bandwidth

The XVR provides 16Mbps incoming bandwidth, increasing to up to 24Mbps after all-analog channel conversion, along with 48Mbps outgoing bandwidth.

Network connectivity is provided through 1× RJ45 10/100Mbps self-adaptive Ethernet interface. Supported network protocols include TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, and SMTP.

The XVR supports up to 128 remote users and works with supported versions of Internet Explorer, Firefox, Chrome, and Microsoft Edge on Windows.

Motion Detection, UMD & Behavior Search

For surveillance event management, the XVR supports Motion Detection and alert events including IP conflict, network disconnection, disk offline or abnormal status, illegal access, low/full HDD space, and recording or snapshot abnormalities.

It also supports Ultra Motion Detection (UMD) on 4 analog channels and Behavior Search for VCA-based video analysis.

Snapshot & USB Connectivity

The XVR supports 4-channel snapshots with a maximum resolution of 704×576. Schedule snapshot is not supported.

For external devices and backup, the rear panel provides 2× USB 2.0 ports.

Compact Design & Reliable Operation

The XVR operates on 12V DC power with power consumption of ≤8W without HDD. It supports an operating temperature range of -10°C to +55°C and humidity up to 90% RH, non-condensing.

The compact chassis measures 260 × 226 × 47mm and weighs ≤1.1kg.

Certification & Warranty

The Uniview XVR301-04G3 is certified with UL, CE, FCC, RoHS, and WEEE standards and comes with a 1-Year Brand Warranty.

Key Features

• Uniview XVR301-04G3

• 4-Channel 1 SATA XVR

• 4-channel BNC analog video input

• 2-channel IP video input

• Up to 6 IP channels after analog camera conversion

• Up to 4MP IP camera support

• AHD, TVI, CVI & CVBS support

• 5MP Lite / 4MP Lite / 1080P / 720P / CIF recording

• 1 SATA interface

• Up to 8TB HDD capacity

• HDMI & VGA video output

• 1-channel RCA audio output

• 1-channel RCA two-way audio

• 2-channel HD & 4-channel SD synchronous playback

• Motion Detection

• 4-channel analog UMD

• Behavior Search

• 16Mbps incoming bandwidth

• Up to 24Mbps after all-analog channel conversion

• 48Mbps outgoing bandwidth

• 1× RJ45 10/100Mbps Ethernet

• 2× USB 2.0 ports

• 128 remote users

• 12V DC power

• ≤8W power consumption without HDD

• UL, CE, FCC, RoHS & WEEE certification

• 1-Year Brand Warranty

The Uniview XVR301-04G3 is a practical hybrid XVR solution for surveillance systems requiring multi-format analog camera support, 4MP IP camera connectivity, 1 SATA storage, HDMI/VGA output, audio and two-way audio, motion detection, UMD, behavior search, and remote network access.
