2MP Full HD PoE IP Camera with 30m IR & White Light
2.8/4/6mm F2.0 Fixed Lens, DWDR & SmartIR
Human & Vehicle Detection, Built-in Mic, H.265+ & IP67
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 / 4 / 6 mm |
| Aperture | F2.0 |
| FOV 2.8mm | Horizontal 98.8°, Vertical 53.5°, Diagonal 117° |
| FOV 4mm | Horizontal 75.2°, Vertical 40.8°, Diagonal 88.3° |
| FOV 6mm | Horizontal 49.8°, Vertical 27.6°, Diagonal 57.7° |
| Lens Mount | M12*P 0.5 |
| DORI 2.8mm | Detect 47m; Observe 19m; Recognize 9m; Identify 5m |
| DORI 4mm | Detect 59m; Observe 25m; Recognize 12m; Identify 6m |
| DORI 6mm | Detect 89m; Observe 37m; Recognize 18m; Identify 9m |
| Angle Adjustment | |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Rotation | 0° to 360° |
| Illuminator | |
| Integrated IR/White LED | 2 LEDs |
| IR Illumination Range | Up to 30m |
| White Light Range | Up to 30m |
| IR Wavelength | 850 nm |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Maximum Resolution | 1920 × 1080 |
| Main Stream Resolution | 1920×1080, 1280×960, 1280×720 |
| Main Stream Frame Rate | 50Hz: 1/5/10/15/20/25fps; 60Hz: 1/5/10/15/20/25/30fps |
| Sub-Stream Resolution | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Sub-Stream Frame Rate | 50Hz: 1/5/10/15/20/25fps; 60Hz: 1/5/10/15/20/25/30fps |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main H.265+/H.265/H.264+/H.264; Sub H.265/H.264 |
| H.264 Profile | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Profile | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main 256 Kbps–4 Mbps; Sub 64 Kbps–512 Kbps |
| Frame Rate Limitation | When image rotation is set to 90°, frame rate supports up to 20fps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | N/A |
| Audio Input | Built-in Microphone |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Profile S/T |
| API | Open Network Video Interface (Profile S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Event | |
| Smart Detection | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, People Detection, Vehicle Detection |
| Motion Detection | Enhanced with Human & Vehicle Classification |
| Video Tampering Detection | Yes |
| Exception | Illegal Login |
| Alarm Linkage | |
| Alarm Linkage | Email, Alarm Server, FTP Upload, Message Push |
| Deep Learning Function | |
| People & Vehicle Analytics | N/A |
| Interfaces | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |

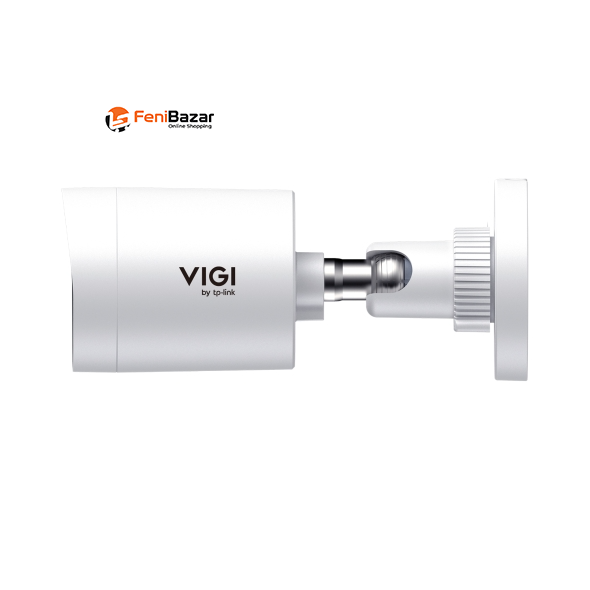

The VIGI 2MP network camera features a 1/3" Progressive Scan CMOS sensor and supports up to 1920×1080 resolution for reliable Full HD surveillance. It comes with a fixed focal lens available in 2.8mm, 4mm, and 6mm options, providing different viewing angles for various monitoring requirements.
The camera supports low-light monitoring with a minimum illumination of 0.005 Lux and 0 Lux with IR/white light. Its integrated infrared-white LED system provides up to 30m IR and white-light illumination. DWDR, BLC, 3D DNR, HLC, and SmartIR help improve image quality in challenging lighting conditions.
A built-in microphone enables audio input and recording, while the camera does not support audio output or two-way audio. Smart event features include intrusion detection, line-crossing detection, region entering detection, people detection, and vehicle detection, along with enhanced motion detection and video tampering detection.
The camera supports ONVIF Profile S/T, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, and VIGI PC Client. It uses a 10/100M PoE network interface and supports 12V DC or PoE power. With an IP67 protection rating and metal construction, it is designed for reliable surveillance installations.
