4MP 5X Motorized Varifocal PoE IP Camera with 60m IR
2.7–13.5mm F1.6 Lens, 120dB WDR & SmartIR
Human & Vehicle Detection, Two-Way Audio, 512GB MicroSD, IP67 & IK10
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | 2.7–13.5mm |
| Optical Zoom | 5X |
| Aperture | F1.6 |
| Lens Mount | Φ14 |
| FOV | Horizontal 29.6°–102.0°, Vertical 16.8°–53.8°, Diagonal 34.1°–122.8° |
| DORI Distance | Detect 62–200m, Observe 27–84m, Recognize 13–40m, Identify 7–21m |
| Manual Angle Adjustment | |
| Pan | 0° to 350° |
| Tilt | 0° to 75° |
| Rotation | 0° to 344° |
| Illuminator | |
| Illuminator Type | 4 × IR LED |
| IR LED Quantity | 4 |
| IR Illumination Range | Up to 60m |
| IR Wavelength | 850nm |
| Illuminator Distance | 60m |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Maximum Resolution | 2688 × 1520 |
| Main Stream Resolution | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080 |
| Main Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Sub-Stream Resolution | 1280×720, 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Sub-Stream Frame Rate | Up to 25fps at 50Hz; up to 30fps at 60Hz |
| Bit Rate Control | CBR / VBR |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression | H.265 / H.264 |
| H.264 Profile | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Profile | Main Profile |
| H.265+ | Main Stream Supported |
| Main Stream Bit Rate | 256 Kbps to 6 Mbps |
| Sub-Stream Bit Rate | 64 Kbps to 1024 Kbps |
| Frame Rate Limitation | Up to 20fps when image rotation is set to 90° or 270° |
| Image | |
| Image Settings | Mirror, Rotation, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance |
| Image Enhancement | BLC / 3D DNR / HLC / SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Additional Features | Infrared Overexposure Prevention, Adjustable HLC |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone / Audio In Interface |
| Audio Output | Audio Out Interface |
| Audio Compression | Supported |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps (G.711 A-law) |
| Environment Noise Filtering | Yes |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Network | |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| PoE | Supported |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Supported |
| ONVIF Profile | G / S / T |
| Simultaneous Live View | 3 Main Streams + 3 Sub-Streams |
| Client Platforms | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Cloud | Supported |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
| Smart Detection | |
| Intrusion Detection | Supported |
| Line-Crossing Detection | Supported |
| Region Entering Detection | Supported |
| Region Exiting Detection | Supported |
| Object Abandoned Detection | Supported |
| Object Removal Detection | Supported |
| Loitering Detection | Supported |

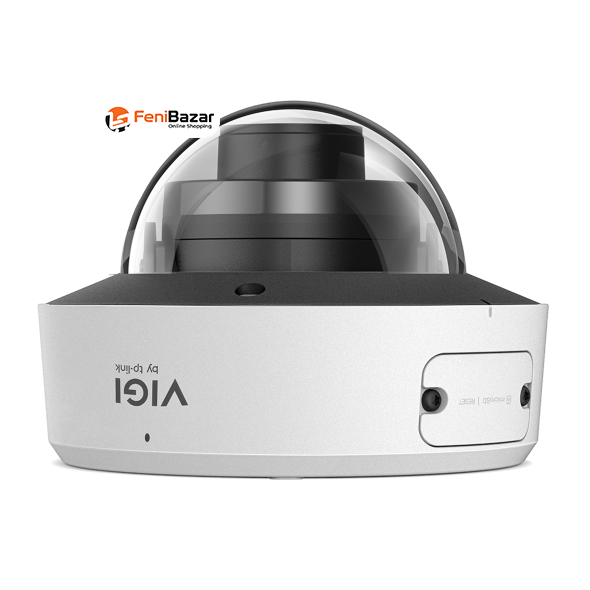

This VIGI motorized varifocal network camera features a 1/2.9" Progressive Scan CMOS sensor and delivers up to 2688 × 1520 resolution for detailed surveillance. Its 2.7–13.5mm motorized varifocal lens provides 5X optical zoom, allowing flexible adjustment between wide-area monitoring and long-distance observation.
The camera uses 4 IR LEDs with up to 60m illumination and supports SmartIR, BLC, 3D DNR, HLC, and 120 dB WDR for clearer images in varying lighting conditions. The lens and camera body allow manual adjustment with 350° pan, 75° tilt, and 344° rotation.
For intelligent monitoring, it supports intrusion, line-crossing, region entering/exiting, abandoned/removal object, loitering, people, vehicle, abnormal sound, and scene change detection. Human and vehicle classification enhances motion detection, while alarm linkage supports memory card recording, push notifications, sound alarms, email alerts, FTP uploads, alarm output, and alarm server notifications.
The camera supports two-way audio through its built-in microphone and audio interfaces, along with a 10/100M Ethernet port and PoE. It supports MicroSD cards up to 512GB, ONVIF Profile G/S/T, VIGI software platforms, cloud connectivity, IP67 weatherproof protection, and IK10 vandal resistance. The metal housing makes it suitable for demanding surveillance installations.
