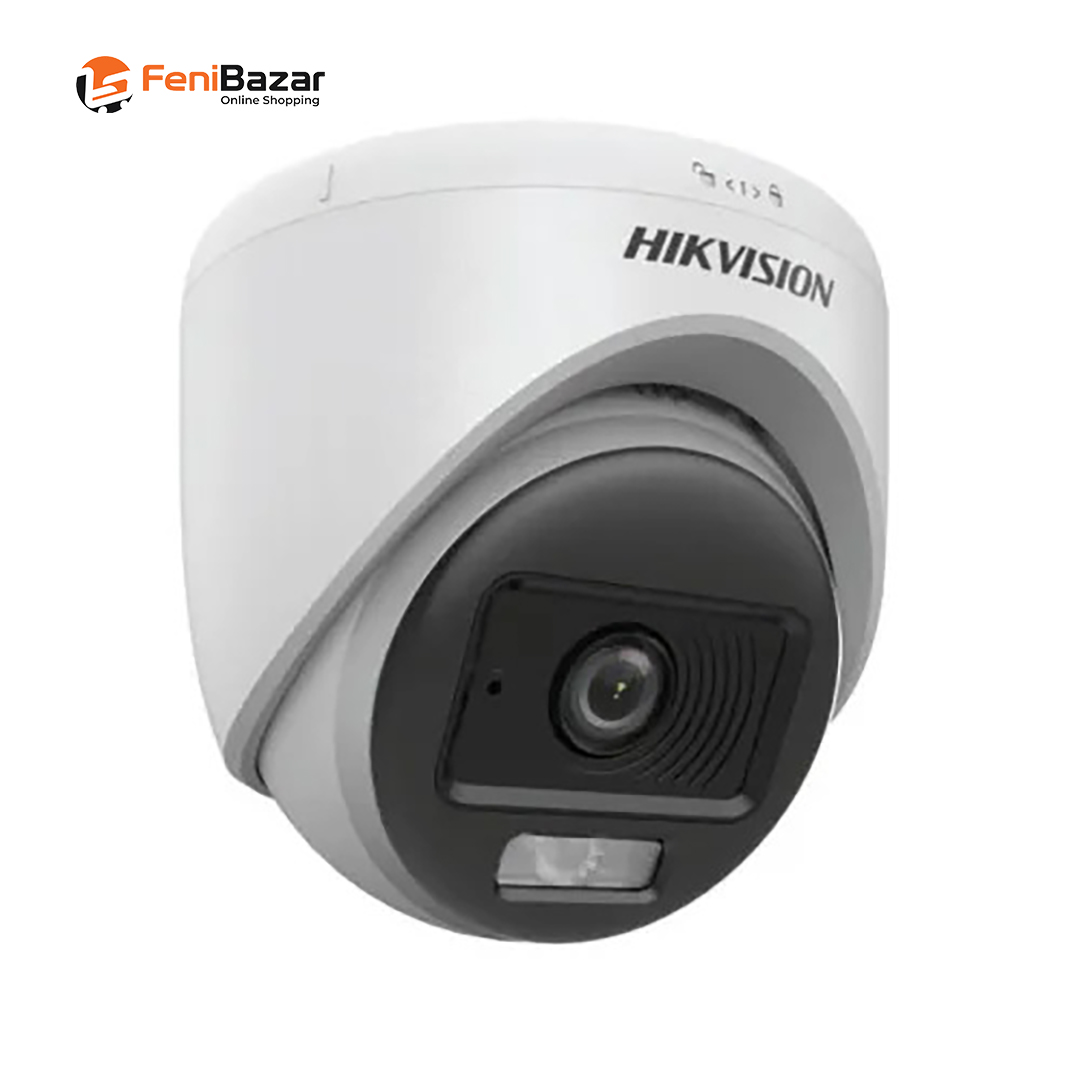

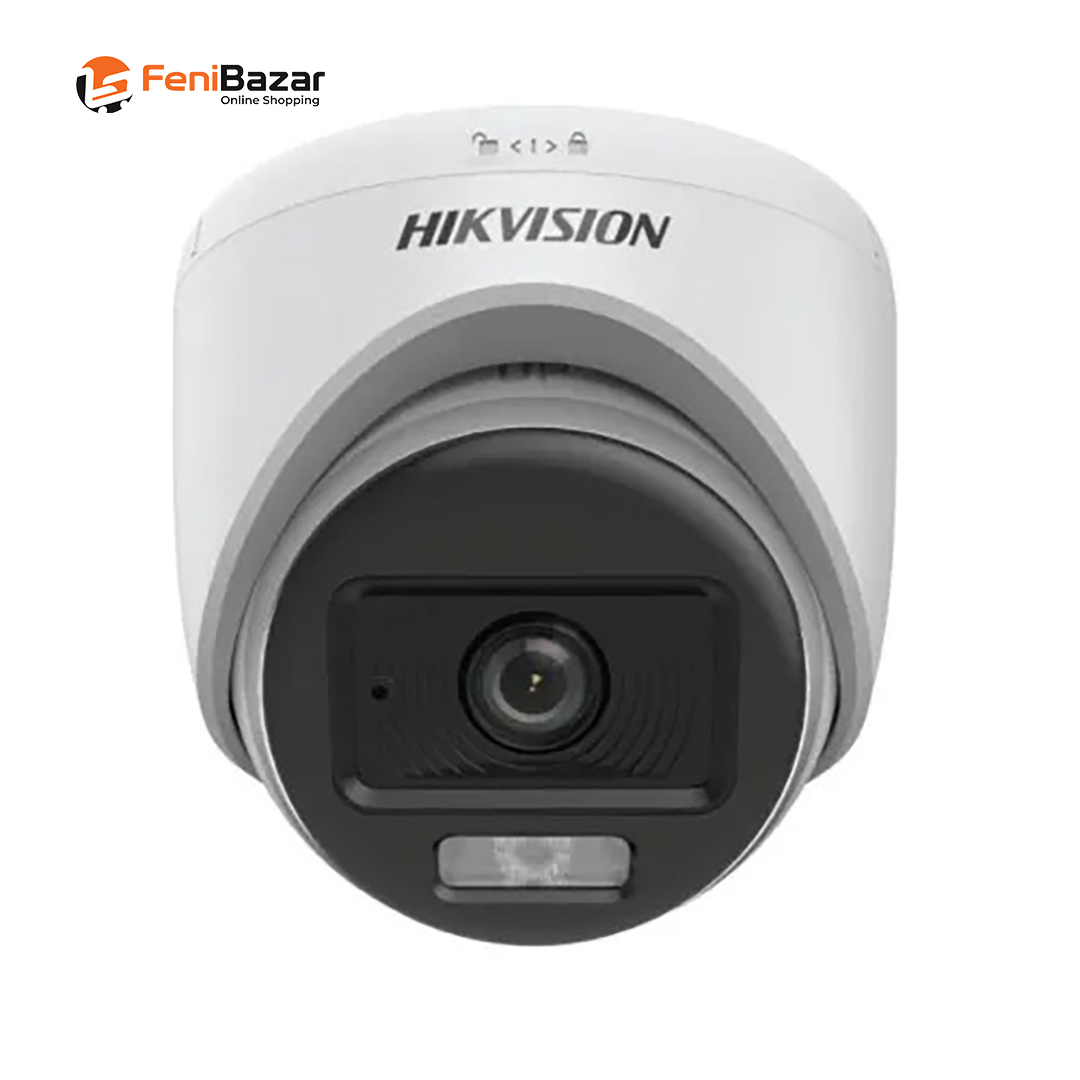

The 2MP Smart Dual-Light Security Camera is designed to provide reliable surveillance with clear 1920 × 1080 Full HD video, smart supplementary lighting, and flexible video-format compatibility. It features a 2MP CMOS image sensor, 2.8mm or 3.6mm fixed focal lens options, and both IR and white-light illumination up to 20 meters for effective monitoring in different lighting conditions.
The camera features a 2MP CMOS image sensor and delivers video at 1920 × 1080 resolution. It supports multiple analog video formats, making it suitable for compatible DVR-based CCTV systems.
Supported formats include:
TVI: 2K @ 20fps, 1080P @ 25/30fps
AHD: 1080P @ 25/30fps
CVI: 1080P @ 25/30fps
CVBS: PAL/NTSC
The camera features Smart supplementary lighting with IR and white light. Both lighting options provide illumination up to 20 meters, helping improve visibility during nighttime and low-light surveillance.
IR Light: Up to 20m
White Light: Up to 20m
Supplement Light Type: Smart, IR, White Light
The camera offers a minimum illumination of 0.001 Lux @ F1.0 with AGC ON and 0 Lux with white light, supporting clear monitoring in very low-light environments.
The camera supports 2.8mm and 3.6mm fixed focal lens options, providing different viewing angles for different surveillance requirements.
2.8mm Lens:
Horizontal FOV: 105°
Vertical FOV: 56°
Diagonal FOV: 126°
3.6mm Lens:
Horizontal FOV: 84°
Vertical FOV: 46°
Diagonal FOV: 98°
The lens uses an M12 mount.
The camera supports Digital Wide Dynamic Range (DWDR) to help improve image visibility in scenes with varying lighting conditions.
Additional image enhancement features include:
Digital WDR / DWDR
BLC
HLC
Global image enhancement
Auto/Manual White Balance
AGC
The camera supports 2D DNR and 3D DNR, helping reduce unwanted image noise and improve overall video clarity, particularly in low-light environments.
The ICR Day/Night function supports automatic day and night monitoring according to the available lighting conditions. Combined with the camera's IR and white-light supplementation, it provides flexible illumination for nighttime surveillance.
The camera features a switchable TVI/AHD/CVI/CVBS video interface, allowing compatibility with different analog HD CCTV technologies.
This makes it suitable for compatible DVR systems and can provide flexibility when installing or upgrading a CCTV setup.
The camera offers a wide range of physical adjustment:
Pan: 0° to 360°
Tilt: 0° to 75°
Rotation: 0° to 360°
This allows the camera to be positioned toward the desired monitoring area during installation.
The camera supports an operating temperature range of -40°C to 60°C (-40°F to 140°F) with humidity of 90% or less, non-condensing.
Its compact body measures Ø85.02 × 81.25 mm and weighs approximately 155 g.
The camera operates on 12 VDC ±25% and has a maximum power consumption of 2.9W, providing efficient operation for CCTV surveillance installations.
2MP CMOS Image Sensor
1920 × 1080 Full HD Resolution
Smart IR + White Light
IR Illumination up to 20m
White-Light Illumination up to 20m
Minimum Illumination: 0.001 Lux @ F1.0, AGC ON
0 Lux with White Light
2.8mm / 3.6mm Fixed Focal Lens
2.8mm FOV: 105° Horizontal
3.6mm FOV: 84° Horizontal
Up to 126° Diagonal FOV
M12 Lens Mount
Digital WDR / DWDR
BLC & HLC
Global Image Enhancement
Auto/Manual White Balance
AGC Support
2D DNR & 3D DNR
ICR Day/Night
TVI/AHD/CVI/CVBS Switchable
TVI 2K @ 20fps
Pan 0–360°
Tilt 0–75°
Rotation 0–360°
12 VDC ±25% Power Supply
Maximum Power Consumption: 2.9W
Operating Temperature: -40°C to 60°C
Approx. 155g Weight
1-Year Warranty
This 2MP Smart Dual-Light Security Camera is suitable for:
Home security monitoring
Office surveillance
Shop and retail monitoring
Warehouse surveillance
Commercial security systems
Entrance and doorway monitoring
General CCTV surveillance
Analog HD DVR-based CCTV systems
Overall, the 2MP Smart Dual-Light Security Camera combines Full HD 1920 × 1080 video, Smart IR and white-light illumination up to 20m, flexible 2.8mm/3.6mm lens options, Digital WDR, 2D/3D DNR, and TVI/AHD/CVI/CVBS compatibility to provide a versatile surveillance solution.
