3K Fixed Bullet Camera with 30m IR & 20m White-Light
2960 × 1665 Resolution, 2.8mm/3.6mm Fixed Lens & M12 Mount
4-in-1 TVI/AHD/CVI/CVBS, ICR Day/Night & 1-Year Warranty
| General | |
| Casing | Plastic |
|---|---|
| Dimensions | 138.8 mm × Ø70 mm |
| Weight | Approx. 270 g |
| Pan | 0° to 360° |
| Tilt | 0° to 90° |
| Rotation | 0° to 360° |
| Operating Temperature | -40°C to 60°C |
| Humidity | 90% or less, non-condensing |
| Power Supply | 12 VDC ±25% |
| Power Supply Rating | Max. 3.2W |
| Power Consumption | Max. 3.3W |
| Camera | |
| Image Sensor | 3K CMOS |
| Effective Pixels | 2960 × 1665 |
| Electronic Shutter Speed | PAL: 1/25s to 1/50,000s; NTSC: 1/30s to 1/50,000s |
| Minimum Illumination | 0.01 Lux @ F2.0, AGC ON; 0 Lux with IR |
| IR Distance | Up to 30m |
| White-Light Distance | Up to 20m |
| Lens | |
| Lens Type | 2.8mm and 3.6mm fixed focal lens |
| Mount Type | M12 |
| 2.8mm Lens FOV | Horizontal 105°, Vertical 62°, Diagonal 132° |
| 3.6mm Lens FOV | Horizontal 92°, Vertical 48°, Diagonal 112° |
| Video | |
| Resolution | 2960 × 1665 |
| TVI | 3K@20fps, 4MP@25/30fps, 1080p@25/30fps |
| AHD | 4MP@25/30fps |
| CVI | 4MP@25/30fps |
| CVBS | PAL/NTSC |
| Video Output | 4-in-1 switchable TVI/AHD/CVI/CVBS |
| Day/Night | ICR |
| Warranty | |
| Warranty | 1 Year |

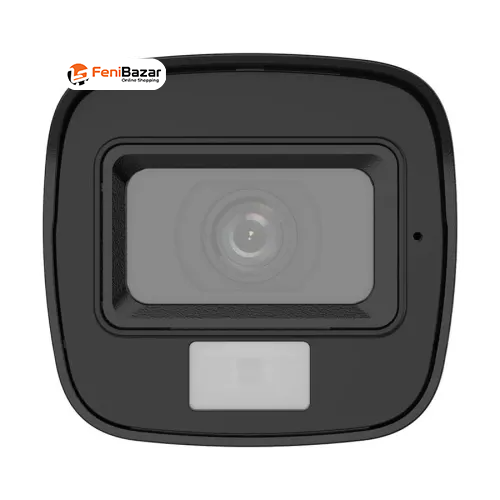

The Hikvision DS-2CE16K0T-LFS is a 3K Mini Bullet CC Camera designed to deliver detailed surveillance images with its 3K CMOS sensor. It provides an effective resolution of 2960 × 1665 pixels, making it suitable for security monitoring applications that require more image detail than standard Full HD cameras.
The camera supports 2.8mm and 3.6mm fixed focal lens options with an M12 mount. The 2.8mm lens provides a 105° horizontal field of view, while the 3.6mm lens provides a 92° horizontal field of view, allowing users to select the appropriate lens option according to their monitoring area. The camera supports TVI, AHD, CVI, and CVBS video formats through its switchable 4-in-1 video output.
For low-light surveillance, the DS-2CE16K0T-LFS offers a minimum illumination of 0.01 Lux at F2.0 with AGC enabled and 0 Lux when IR is active. It provides up to 30 meters of IR illumination and up to 20 meters of white-light illumination for nighttime monitoring. The ICR day/night function helps the camera adapt to changing lighting conditions.
The Hikvision DS-2CE16K0T-LFS features a compact bullet design with flexible adjustment through 360° pan, 90° tilt, and 360° rotation. It operates on 12V DC ±25% and supports operating temperatures from -40°C to 60°C. With 3K resolution, multiple analog video formats, and dual illumination options, it is suitable for a range of CCTV surveillance installations.
