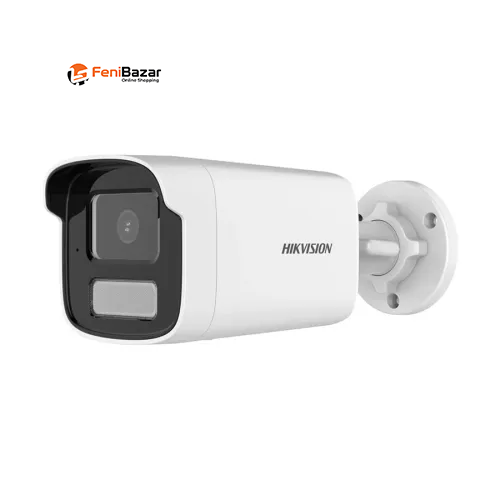

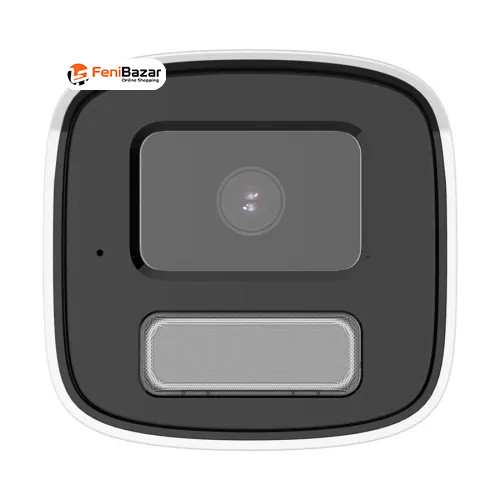

The 2MP PoE IP Bullet Camera is a reliable network surveillance solution designed for clear Full HD monitoring in demanding security environments. It features a 1/2.9" Progressive Scan CMOS sensor and delivers 1920 × 1080 resolution for detailed video surveillance.
With a fixed focal lens available in 4mm and 6mm options, the camera can be selected according to the required monitoring area. The 4mm lens provides an 83° horizontal field of view, while the 6mm lens offers a narrower 51° horizontal field of view for longer-distance viewing.
The camera provides 1920 × 1080 Full HD resolution with a shutter speed ranging from 1/3 second to 1/100,000 second. Its minimum illumination is 0.005 Lux in color at F1.6 with AGC ON, while black-and-white imaging can operate at 0 Lux with IR.
Image enhancement features include Digital WDR, BLC, HLC, gain control, mirror function, ROI, and programmable privacy masking, helping maintain useful video quality in different lighting conditions.
The camera is equipped with IR and white-light illumination and provides an IR distance of up to 50 meters. The IR system uses an 850nm wavelength, supporting nighttime monitoring and low-light surveillance.
The camera also supports Auto and Schedule Day/Night modes for flexible day-and-night operation.
The fixed focal lens is available in 4mm and 6mm options, allowing users to choose the appropriate viewing angle for their surveillance requirements.
4mm Lens:
Horizontal FOV: 83°
Vertical FOV: 44°
Diagonal FOV: 99°
DORI: Detect 56m, Observe 22m, Recognize 11m, Identify 5m
6mm Lens:
Horizontal FOV: 51°
Vertical FOV: 27°
Diagonal FOV: 60°
DORI: Detect 91m, Observe 36m, Recognize 18m, Identify 9m
The lens uses an M12 mount with a fixed F1.6 aperture and fixed iris.
The camera supports H.265+, H.265, H.264+, and H.264 compression for the main stream, while the sub-stream supports H.265, H.264, and MJPEG.
The main stream supports:
50Hz: Up to 25fps at 1920 × 1080 / 1280 × 720
60Hz: Up to 30fps at 1920 × 1080 / 1280 × 720
The sub-stream supports:
50Hz: Up to 25fps at 640 × 480 / 640 × 360
60Hz: Up to 30fps at 640 × 480 / 640 × 360
Video bitrate ranges from 32Kbps to 8Mbps.
The camera features a built-in microphone with mono sound and environment noise filtering. It supports multiple audio compression formats, including:
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
AAC-LC
Audio sampling is supported at 8kHz and 16kHz, with audio bitrates depending on the selected compression format.
A built-in memory card slot supports microSD, microSDHC, and microSDXC cards up to 512GB, providing convenient local video storage.
The camera also supports event-related linkage such as recording and capture where applicable to the specified model configuration.
The camera supports motion detection with alarm triggering by specified target types, including human and vehicle detection. It also supports video tampering alarms and exception detection.
Alarm linkage options include:
Upload to FTP
Memory card linkage where supported
Email notification
Surveillance center notification
Trigger recording where supported
Trigger capture
The camera features a 1× RJ45 10/100M self-adaptive Ethernet port and supports IEEE 802.3af Class 3 PoE.
Power options include:
12V DC ±25%
0.5A
Maximum 6W via DC power
Maximum 7W via PoE
Ø5.5mm coaxial power plug
Reverse polarity protection
IEEE 802.3af Class 3 PoE
PoE allows network connectivity and power to be delivered through a single Ethernet cable, helping simplify installation.
The camera supports a wide range of network protocols, including TCP/IP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, and SMTP.
It supports up to 6-channel simultaneous live view and up to 32 users with three user levels: administrator, operator, and user.
The camera is compatible with:
ONVIF Profile S
ONVIF Profile T
ONVIF Profile G on supported -F models
ISAPI
SDK
iVMS-4200
Hik-Connect
The camera features a metal and plastic casing and is rated IP67 for water and dust protection, making it suitable for installations where protection against environmental exposure is required.
It supports an operating temperature range of -30°C to 60°C with humidity up to 95% RH, non-condensing. The same temperature and humidity ranges are supported for storage.
2MP Full HD IP Bullet Camera
1/2.9" Progressive Scan CMOS
1920 × 1080 resolution
4mm / 6mm fixed focal lens options
F1.6 fixed aperture
M12 lens mount
Up to 50m IR distance
850nm IR wavelength
IR & White Light illumination
Digital WDR
BLC & HLC
Gain control
ROI support
4 programmable polygon privacy masks
H.265+ / H.265 / H.264+ / H.264
Built-in microphone
Environment noise filtering
MicroSD/microSDHC/microSDXC up to 512GB
Human & vehicle motion detection
Video tampering alarm
1× RJ45 10/100M Ethernet port
IEEE 802.3af Class 3 PoE
ONVIF Profile S/T support
Up to 6-channel simultaneous live view
IP67 water and dust protection
Metal & plastic casing
-30°C to 60°C operating temperature
1-year warranty
This 2MP PoE IP Bullet Camera is suitable for:
Home security
Office surveillance
Shop and retail monitoring
Warehouse security
Commercial buildings
Entrance and perimeter monitoring
Parking and outdoor surveillance areas
Network-based CCTV installations
Overall, this 2MP PoE IP Bullet Camera with up to 50m IR, built-in microphone, 512GB microSD support, human and vehicle motion detection, IP67 protection, and IEEE 802.3af PoE provides a practical and flexible solution for Full HD network surveillance.
