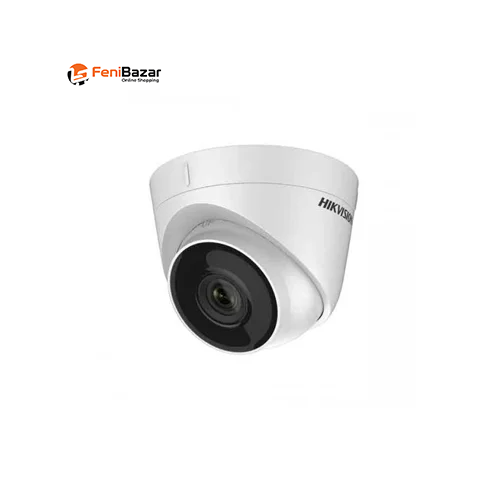

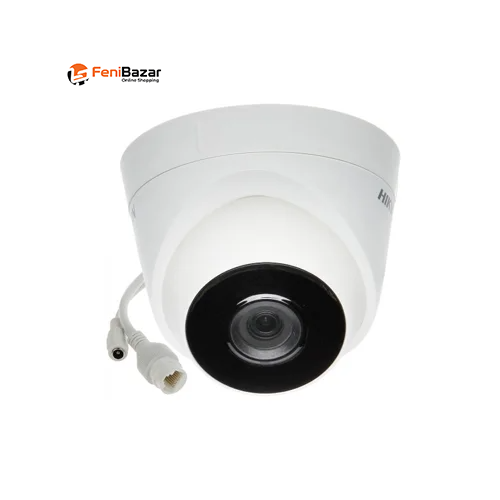

Hikvision DS-2CD1323G0E-I 2MP Basic IR Mini Dome IP Camera

2MP PoE IP Camera with 30m IR, 112.1° FOV & 3D DNR

This 2MP PoE IP Camera is designed for reliable network-based video surveillance, offering clear Full HD video, wide-angle coverage, infrared night vision, and efficient PoE connectivity. It features a 1/2.7" Progressive Scan CMOS sensor with 2MP effective pixels and a maximum resolution of 1920 × 1080, providing detailed images for everyday security monitoring.

Full HD 2MP Video

The camera delivers a maximum resolution of 1920 × 1080 and uses a 1/2.7" Progressive Scan CMOS image sensor with 2MP effective pixels. This provides clear and detailed Full HD surveillance footage for monitoring different areas.

30m IR Night Vision

The camera provides up to 30 meters of IR distance, allowing it to capture surveillance footage in low-light and dark environments. Its minimum illumination is 0.028 Lux at F2.0 with AGC ON in color mode and 0 Lux with IR.

The ICR Cut function supports day and night operation, while the Day/Night mode can be configured as Day, Night, Auto, or Schedule.

Wide 112.1° Viewing Angle

Equipped with a 2.8mm fixed lens and M12 mount, the camera provides a wide field of view for effective area coverage:

• Horizontal FOV: 112.1°

• Vertical FOV: 60.0°

• Diagonal FOV: 132.2°

This wide-angle lens is suitable for monitoring larger areas with a single camera.

Image Enhancement with 3D DNR

The camera supports several image enhancement technologies, including BLC, HLC, and 3D DNR, helping improve image quality in different lighting conditions.

Image settings such as saturation, brightness, contrast, sharpness, AGC, and white balance can be adjusted through compatible client software or a web browser. The camera also supports rotate mode for flexible image configuration.

With an SNR greater than 50 dB, the camera is designed to provide clear image output with reduced noise.

PoE Network Connectivity

The camera features 1× RJ45 10/100 Mbps self-adaptive Ethernet port for network connectivity. It supports IEEE 802.3af PoE, Class 3, allowing power and network connectivity to be delivered through a single Ethernet cable for easier installation.

A Ø5.5 mm coaxial power plug is also provided for power connectivity.

Compact & Durable Design

The camera measures Ø110 × 85.3 mm and weighs approximately 320 g, providing a compact design suitable for various surveillance installations.

Key Features

• 2MP Effective Pixels

• 1920 × 1080 Maximum Resolution

• 1/2.7" Progressive Scan CMOS Sensor

• 2.8mm Fixed Lens

• 112.1° Horizontal FOV

• 60.0° Vertical FOV

• 132.2° Diagonal FOV

• Up to 30m IR Distance

• 0.028 Lux Minimum Illumination in Color

• 0 Lux with IR

• Day/Night: Day, Night, Auto & Schedule

• ICR Cut

• BLC, HLC & 3D DNR

• SNR >50 dB

• 1× RJ45 10/100 Mbps Ethernet Port

• IEEE 802.3af PoE, Class 3

• **Ø5.5mm
