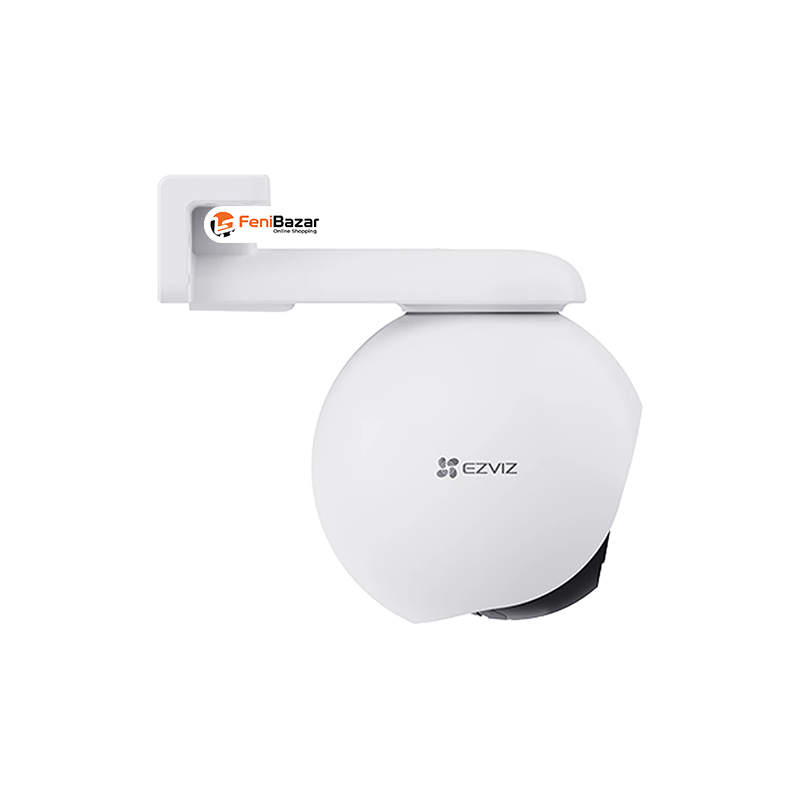

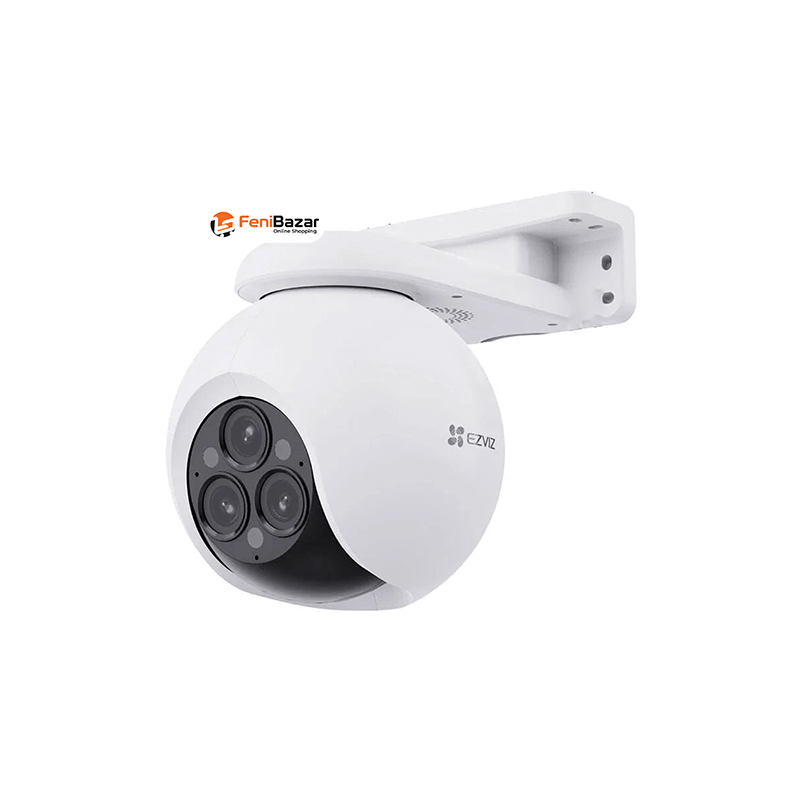

EZVIZ CS-H80F 4MP 2K+ Pan & Tilt Dome Camera
Triple Lens 2.8mm/6mm/12mm F1.6, 340° Pan, 70° Tilt & 30m Color Night Vision
AI Human & Vehicle Detection, Two-Way Talk, IP67 & 512GB microSD Support
| Camera | |
| Brand | EZVIZ |
|---|---|
| Model | CS-H80F |
| Camera Type | Pan & Tilt Dome Camera |
| Resolution | 4MP 2K+ (2560 × 1440) |
| Lens | Triple Lens |
| Lens Options | 2.8mm / 6mm / 12mm |
| Lens Aperture | F1.6 |
| Pan Range | 340° |
| Tilt Range | 70° |
| Field of View | |
| 2.8mm Lens | 54° Vertical, 96° Horizontal, 110° Diagonal |
| 6mm Lens | 28° Vertical, 52° Horizontal, 60° Diagonal |
| 12mm Lens | 14° Vertical, 25° Horizontal, 29° Diagonal |
| Night Vision | |
| Night Vision | Color |
| Night Vision Distance | Up to 30m |
| Smart Features | |
| AI Detection | AI Human Detection / AI Vehicle Detection |
| 3D DNR | Supported |
| Weather Protection | IP67 |
| Weatherproof Design | Supported |
| Video | |
| Video Compression | H.265 / H.264 |
| Audio | |
| Audio | Two-Way Talk |
| Storage | |
| Storage | MicroSD Card |
| Maximum Storage Capacity | Up to 512GB |
| Network & Connectivity | |
| Ethernet Port | RJ45 |
| App | EZVIZ App |
| Power | |
| Power Supply | DC 12V / 1.5A |
| Maximum Power Consumption | 18W |
| Physical Specification | |
| Dimensions | 168 × 112 × 156mm |
| Weight | 575.7g |
| Warranty | |
| Warranty | 1 Year |
The EZVIZ CS-H80F 4MP 2K+ Triple Lens Pan & Tilt Wi-Fi Dome Camera is designed to provide flexible and detailed surveillance with a 4MP resolution of 2560 × 1440. It features a triple-lens configuration with 2.8mm, 6mm, and 12mm F1.6 lens options, allowing users to select the appropriate viewing angle according to their monitoring requirements.
The camera supports 340° pan and 70° tilt movement for flexible coverage. Its night vision supports color imaging with a night vision distance of up to 30m. The different lens options provide varying fields of view, from a wider 110° diagonal view with the 2.8mm lens to a narrower 29° diagonal view with the 12mm lens.
For reliable surveillance performance, the EZVIZ CS-H80F supports H.265/H.264 video compression, 3D DNR, and two-way talk. AI-powered human and vehicle detection provides intelligent monitoring, while the IP67 rating and weatherproof design make the camera suitable for outdoor surveillance applications.
The camera includes an RJ45 network port and supports microSD storage up to 512GB. It operates on DC 12V/1.5A power with a maximum power consumption of 18W. The EZVIZ App provides convenient access to camera functions, making the CS-H80F a versatile solution for home, office, shop, warehouse, and commercial security.
