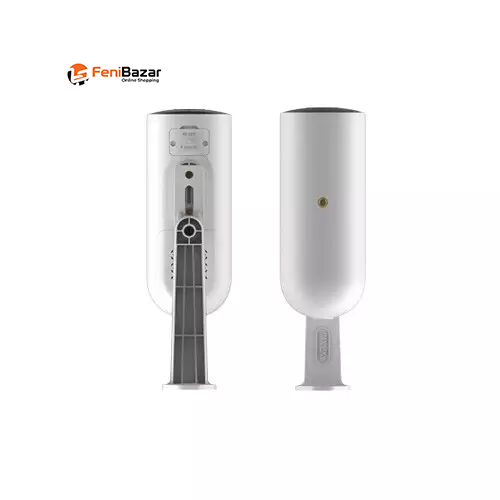

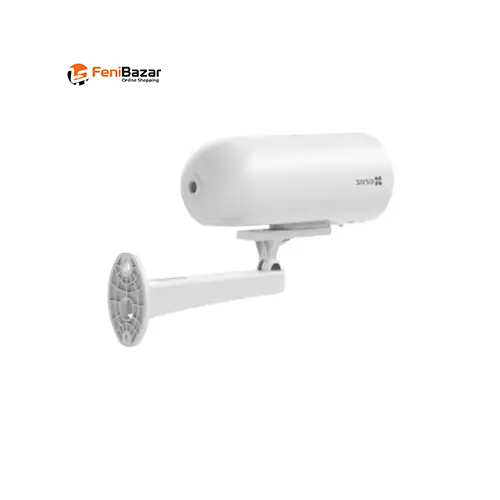

EZVIZ H5 PoE 2K 3MP Outdoor IP Camera with 30m IR Night Vision
2304 × 1296 Resolution, 4mm/6mm F1.6 Lens Options & 3D DNR
PoE, IP67 Protection, 512GB MicroSD, Digital WDR & Adaptive Bit Rate
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Video Resolution | 2304 × 1296 |
| Shutter Speed | Self-Adaptive Shutter |
| Minimum Illumination | 0.01 lux @ F1.6, AGC ON; 0 Lux with IR |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lens Mount | M12 |
| Lens | |
| Lens Options | 4mm @ F1.6 / 6mm @ F1.6 |
| 4mm Lens Viewing Angle | 102° Diagonal / 86° Horizontal / 46° Vertical |
| 6mm Lens Viewing Angle | 62° Diagonal / 52° Horizontal / 28° Vertical |
| Aperture | F1.6 |
| Night Vision & Image | |
| IR Distance | Up to 30m / 98ft |
| DNR | 3D DNR |
| WDR | Digital WDR |
| BLC | Supported |
| Video | |
| Frame Rate | Self-Adaptive During Network Transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD / Hi-Def / Standard |
| Bitrate | Adaptive Bit Rate |
| Audio Bit Rate | Self-Adaptive |
| Storage | |
| Local Storage | MicroSD Card up to 512GB |
| Cloud Storage | EZVIZ CloudPlay, Subscription Required |
| Networking & Connectivity | |
| Network Interface | RJ45 × 1 |
| Ethernet | 10M / 100M Adaptive Ethernet Port |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Power | |
| Power Supply | DC 12V/1A |
| PoE | Supported |
| Maximum Power Consumption | 7W |
| Special Features | |
| Water Resistance | IP67 |
| Operating Environment | |
| Operating Temperature | -30°C to 50°C |
| Humidity | 95% or Less, Non-Condensing |
| Certifications | |
| Certifications | CE / WEEE / RoHS / REACH |
| Physical Specification | |
| Color | White |
| Dimensions | 183 × 93 × 75mm |
| Net Weight | 470g |
| Package Weight | 820g |
| In the Box | |
| Camera | H5 PoE Camera |
| Bracket | Included |
| Screw Kit | Included |
| Waterproof Kit | Included |
| Regulatory Information | × 2 |
| Quick Start Guide | Included |
| Warranty | |
| Warranty | 1 Year |
The EZVIZ H5 PoE is a professional PoE IP camera designed for reliable security monitoring with 2K video resolution of 2304 × 1296. It features a 1/2.8" Progressive Scan CMOS sensor, self-adaptive shutter, H.265/H.264 video compression, and adaptive video bitrate for efficient video transmission and storage.
The camera supports two lens options, including a 4mm lens with a 102° diagonal field of view and a 6mm lens with a 62° diagonal field of view. For low-light monitoring, it provides IR night vision up to 30 meters, along with an automatic IR-Cut filter, 3D DNR, Digital WDR, and BLC.
With an RJ45 10/100M adaptive Ethernet port and PoE power support, the H5 PoE offers convenient wired network connectivity and installation. It supports local MicroSD storage up to 512GB as well as EZVIZ CloudPlay storage, while its IP67 water-resistant rating makes it suitable for demanding outdoor surveillance environments.
The camera operates on DC 12V/1A or PoE power with maximum power consumption of 7W. Its white housing measures 183 × 93 × 75mm and weighs 470g, with an operating temperature range of -30°C to 50°C. The EZVIZ H5 PoE comes with a bracket, screw kit, waterproof kit, and other installation accessories.
