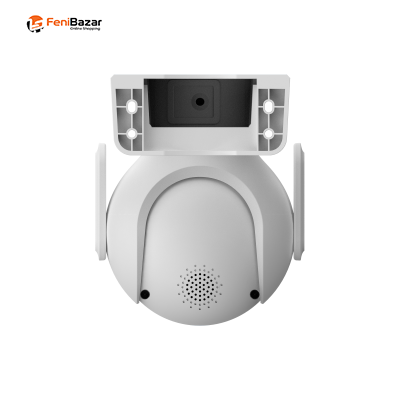

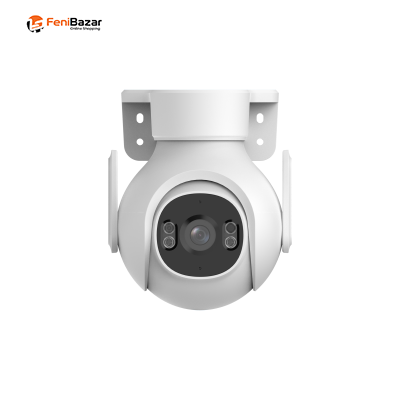

3MP WiFi PT Camera with 2304×1296 Resolution & 30m IR/Warm Light
F1.6 Lens, 355° Pan, DWDR & Smart Illumination
Built-in Mic & Speaker, 256GB MicroSD, H.265 & DMSS
| Camera | |
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Maximum Resolution | 2304 × 1296 |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100,000 s |
| Illumination Distance | Up to 30 m IR; Up to 30 m Warm Light |
| Illuminator Control | Auto |
| Illuminator | 2 IR LEDs; 2 Warm Lights |
| Angle Adjustment | Pan 0°–355° |
| Lens | |
| Maximum Aperture | F1.6 |
| Field of View | H 87°; V 44°; D 105° |
| Video | |
| Video Compression | H.265 |
| Video Frame Rate | Main Stream: 2304 × 1296 @ 1–25/30 fps; Sub Stream: 640 × 360 @ 1–25/30 fps |
| Resolution | 3MP (2304 × 1296); nHD (640 × 360) |
| Video Bit Rate | H.265: 80 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B&W |
| WDR | DWDR |
| Motion Detection | Yes |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Network & Connectivity | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax, 2.412–2.472 GHz, 2.4 GHz |
| Storage | Micro SD Card, up to 256 GB |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Audio | |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption | Basic 1.56 W; Max. 4.56 W (H.265 + Warm Light On) |
| General | |
| Certification | CE |
| Operating Temperature | –20 °C to +50 °C |
| Operating Humidity | ≤95% |
| Casing Material | Plastic |
| Product Dimensions | 116 × 138 × 139 mm (L × W × H) |
| Net Weight | 425 g |
| Warranty | 1 Year |
This 3MP Wi-Fi Network Camera features a 1/2.7" CMOS sensor with a maximum resolution of 2304 × 1296, delivering clear and detailed video for everyday surveillance. Its fixed lens provides an 87° horizontal field of view for a broad monitoring area.
The camera supports Smart Illumination with up to 30 m IR and 30 m warm-light illumination. Auto illuminator control, DWDR, motion detection, Auto ICR, and 0°/180° image rotation help provide flexible monitoring in different lighting conditions.
For connectivity, the camera supports 2.4 GHz Wi-Fi with IEEE 802.11b/g/n/ax standards and includes an RJ-45 10/100 Base-T network port. It also supports Micro SD storage up to 256 GB and can be managed through the DMSS mobile platform on iOS and Android devices.
Built-in microphone and speaker support two-way audio, while H.265 video compression helps optimize storage and bandwidth usage. With a plastic casing, 12 VDC power supply, and a 1-year warranty, this camera is suitable for various Wi-Fi-based surveillance installations.
