5MP WiFi PT Camera with 2880×1620 Resolution & DWDR
2.8mm F2.0 Lens, 10m IR & 10m Warm Light
Built-in Mic & Speaker, Dual-Band WiFi & 256GB MicroSD
| Camera | |
| Image Sensor | 1/3.2" CMOS |
|---|---|
| Effective Pixels | 5MP |
| Maximum Resolution | 2880 × 1620 |
| Frame Rate | 25/30 fps |
| Lens | 2.8mm, F2.0 |
| Pan | 0° to 355° |
| Tilt | -5° to 80° |
| Field of View | H: 95°, V: 53°, D: 110° |
| WDR | DWDR |
| Night Vision | |
| IR Distance | Up to 10m |
| Warm Light Distance | Up to 10m |
| Video & Audio | |
| Video Compression | H.265, H.264 |
| Bit Rate | H.265: 32 kbps–4096 kbps |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Storage | |
| Storage Type | Micro SD Card |
| Maximum Storage | Up to 256GB |
| Network & Connectivity | |
| Wireless Network | IEEE 802.11b/g/n/a/ac/ax |
| WiFi Frequency | 2.4GHz & 5GHz |
| Wired Network | RJ-45 10/100 Base-T |
| Bluetooth | Bluetooth Pairing |
| Mobile App | iOS, Android |
| Power | |
| Power Supply | 5V DC (±5%) |
| Power Consumption | Basic: 1.565W |
| Maximum Power Consumption | 3.72W (WDR + intelligence + warning sound + warning light) |
| Physical Specification | |
| Color | White |
| Dimension | Φ77.8 × 112.1mm |
| Weight | 0.2kg |
| Operating Temperature | -10°C to +45°C |
| Certification | |
| Certification | CE |
| Warranty | |
| Warranty | 2 Years |
| Adapter Warranty | No Warranty |

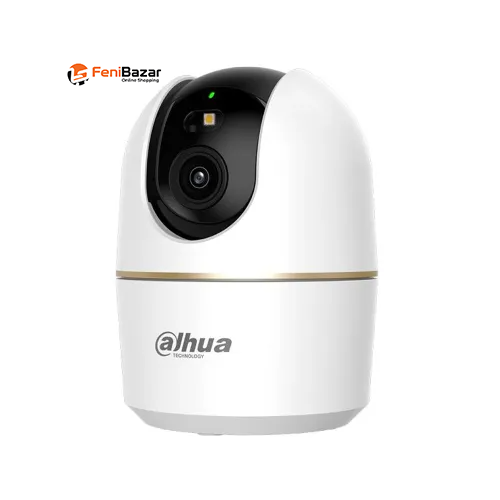

The Dahua DH-IPC-H5AS is a 5MP Indoor Pan & Tilt WiFi Camera designed for flexible indoor surveillance. It features a 1/3.2" CMOS sensor with a maximum resolution of 2880 × 1620 pixels and supports 25/30 fps for smooth video monitoring. The 2.8mm F2.0 fixed lens provides a 95° horizontal, 53° vertical, and 110° diagonal field of view.
The camera supports 0° to 355° pan and -5° to 80° tilt adjustment, allowing users to change the viewing direction for wider indoor coverage. DWDR helps improve visibility in scenes with varying lighting conditions, while H.265 and H.264 video compression provide efficient video encoding.
For low-light monitoring, the DH-IPC-H5AS provides up to 10 meters of IR illumination and up to 10 meters of warm-light illumination. The camera also supports built-in microphone and speaker for two-way audio communication, making it suitable for indoor monitoring where remote voice communication is required.

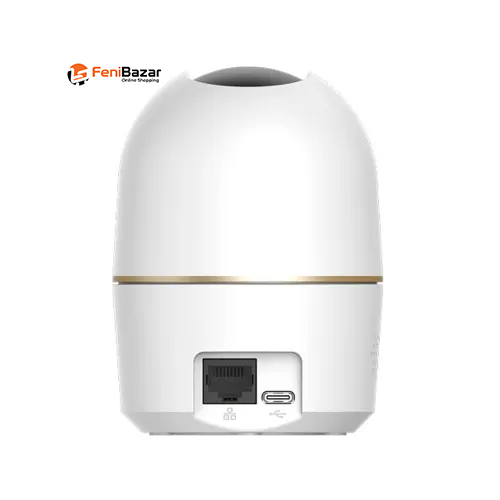

The camera supports Micro SD card storage up to 256GB and provides both wireless and wired network connectivity. Its dual-band WiFi supports 2.4GHz and 5GHz networks, while the RJ-45 10/100 Base-T port provides wired connectivity. With a compact white design, 5V DC power supply, and iOS/Android mobile support, the Dahua DH-IPC-H5AS is suitable for homes, offices, shops, and other indoor surveillance applications.
