32-Channel 16MP NVR with AI Decoding & Dual SATA
16MP/12MP/8MP Decoding, Up to 16-Channel Playback & 2-Screen Display
Gigabit Ethernet, Smart H.265+, 16TB Storage, Face Recognition & SMD Plus
| System | |
| Main Processor | Industrial-Grade Embedded Processor |
|---|---|
| Operating System | Embedded Linux |
| Audio & Video | |
| IP Camera Input | 32 Channels |
| Two-Way Talk | 1-Channel Audio Input, RCA; 1-Channel Audio Output, RCA |
| Display | |
| Interface | 1 × VGA Output, 1 × HDMI Output |
| USB Interface | 1 × Front USB 2.0, 1 × Rear USB 3.0 |
| Supported Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF |
| Multi-Screen Display | 1st Screen 1/4/8/9/16/25/36; 2nd Screen 1/4/8/9/16 |
| Decoding | |
| AI Disabled | 2-ch 16MP@30fps; 2-ch 12MP@30fps; 4-ch 8MP@30fps; 4-ch 6MP@30fps; 6-ch 5MP@30fps; 8-ch 4MP@30fps; 16-ch 1080p@30fps; 32-ch 720p@30fps |
| AI Enabled | 1-ch 16MP@30fps; 2-ch 12MP@30fps; 3-ch 8MP@30fps; 3-ch 6MP@30fps; 4-ch 5MP@30fps; 6-ch 4MP@30fps; 12-ch 1080p@30fps; 16-ch 720p@30fps; 32-ch D1p@30fps |
| Recording | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Audio Compression | G.711a, G.711u, PCM, G.726 |
| Recording Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF |
| Record Mode | General, Motion Detection, Intelligent, Alarm |
| Playback | Up to 16 Channels |
| Video Detection & Alarm | |
| General Alarm | Motion Detection, Privacy Masking, Video Loss, Scene Changing, PIR Alarm, IPC External Alarm |
| Anomaly Alarm | Camera Disconnection, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Locked, Cybersecurity Exception |
| Intelligent Alarm | Face Detection, Face Recognition, Perimeter Protection, SMD Plus, People Counting, Stereo Analysis, Heat Map |
| Alarm Linkage | Record, Snapshot, IPC External Alarm Output, Audio, Buzzer, Log, Preset, Email |
| Playback & Backup | |
| Search Mode | General, Motion Detection, Intelligent, Alarm |
| Playback Functions | Instant Playback, General Playback, Event Playback, Tag Playback, Smart Playback |
| Backup Mode | USB Device |
| Third-Party Support | |
| Supported Brands/Protocols | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Network | |
| Ethernet Port | 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps) |
| Network Functions | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, Auto Registration |
| Device Support | Dahua IP Camera, DVR, NVS and related devices |
| Browser Support | Chrome, IE9 and Later, Firefox |
| Smartphone Support | Android, iOS |
| Interoperability | ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK |
| Storage | |
| Internal HDD | 2 × SATA Ports |
| Maximum Capacity | Up to 16TB |
| Auxiliary Interface | |
| USB | 1 × Front USB 2.0, 1 × Rear USB 3.0 |
| RS232 | 1 × Channel, Debugging and Serial Data Pass-Through |
| RS485 | 1 × Channel, PTZ Control and Multiple Protocol Support |
| Power | |
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | ≤10W without HDD |
| Environment | |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +60°C |
| Construction | |
| Dimensions | 375 × 284.3 × 53 mm (W × L × H) |
| Net Weight | 1.51 kg |
| Gross Weight | 2.76 kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |

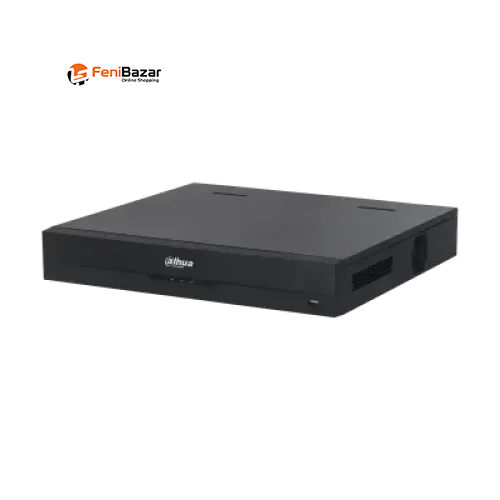

The Dahua NVR4232-EI is a 32-channel 1U Network Video Recorder designed for advanced IP video surveillance systems. It features an industrial-grade embedded processor and Embedded Linux operating system, supporting up to 32 IP camera channels for centralized monitoring, recording and security management.
The NVR supports high-resolution video up to 16MP and provides flexible decoding performance. With AI disabled, it can decode up to 2-channel 16MP, 2-channel 12MP, 4-channel 8MP, 6-channel 5MP, 8-channel 4MP or 16-channel 1080p at 30fps. With AI enabled, it supports up to 1-channel 16MP, 2-channel 12MP, 3-channel 8MP, 4-channel 5MP, 6-channel 4MP or 12-channel 1080p at 30fps.
For efficient recording and storage, the NVR supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG video compression, along with G.711a, G.711u, PCM and G.726 audio compression. It supports general, motion detection, intelligent and alarm recording, as well as up to 16-channel playback with general, motion, intelligent and alarm search options.
The NVR provides intelligent alarm functions including face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map. It also supports motion detection, privacy masking, video loss, scene changing, PIR and IPC external alarms, along with anomaly detection for camera disconnection, storage errors, IP conflicts and cybersecurity exceptions.
For connectivity and storage, the NVR features HDMI and VGA outputs, one Gigabit RJ-45 Ethernet port, two SATA ports supporting up to 16TB, front USB 2.0 and rear USB 3.0 ports, RS232 and RS485 interfaces. It also supports ONVIF and multiple third-party camera brands, with Android and iOS mobile access and browser support. The NVR comes with a 1-year warranty.
