8-Channel PoE NVR with 72W PoE Output & 8TB HDD Support
8× 10/100Mbps PoE Ports, Up to 25.5W PoE per Port & 1-SATA Storage
New 4.0 UI, iDMSS/gDMSS, Dual USB 2.0 & 1-Year Warranty
| System | |
| Main Processor | Industrial-Grade Embedded Processor |
|---|---|
| Operating System | Embedded Linux |
| Network | |
| User Interface | New 4.0 User Interface |
| Ethernet Port | RJ-45 |
| PoE Ports | 8 × RJ-45 with PoE |
| PoE Network Speed | 10/100 Mbps |
| Smartphone Support | iDMSS (iOS) / gDMSS (Android) |
| Storage | |
| HDD Interface | 1 × SATA 2.0 |
| Maximum HDD Capacity | Up to 8TB for a Single HDD |
| HDD Capacity Limitation | Maximum capacity varies with the operating environment |
| Auxiliary Interface | |
| USB | 1 × Front USB 2.0 + 1 × Rear USB 2.0 |
| Power | |
| NVR Power Consumption | ≤10W without HDD |
| Total PoE Output Power | 72W |
| Maximum PoE Output per Port | 25.5W |
| Construction | |
| Product Dimensions | 260 × 225 × 47.6mm (W × L × H) |
| Box Dimensions | 87 × 331 × 312mm (W × L × H) |
| Net Weight | 0.84kg |
| Gross Weight | 1.98kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |

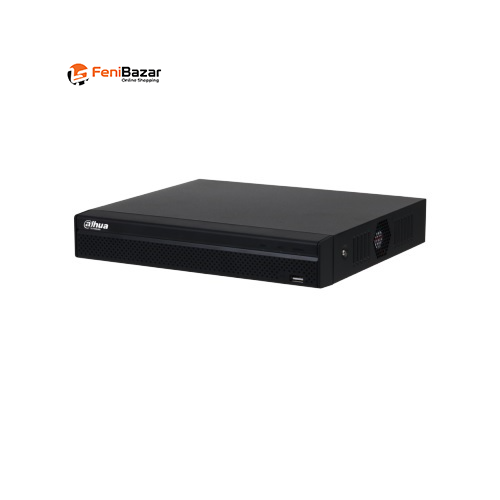

The Dahua NVR1108HS-8P-S3/H is an 8-channel Compact 1U Network Video Recorder with 8 built-in PoE ports, designed for IP surveillance recording and management. It features an industrial-grade embedded processor with an Embedded Linux operating system and a New 4.0 user interface for convenient system operation.
The recorder includes 8 RJ-45 PoE ports for connecting compatible IP cameras and supplying power through the network connection. Mobile access is supported through iDMSS for iOS and gDMSS for Android, allowing convenient remote monitoring with compatible devices.
For storage, the NVR provides one SATA 2.0 port supporting up to an 8TB single HDD, with the maximum supported capacity depending on the operating environment. It also includes one front and one rear USB 2.0 port for compatible peripheral and backup requirements.
The NVR1108HS-8P-S3/H provides a compact 260 × 225 × 47.6mm design and operates with a total NVR power consumption of up to 10W without an HDD. Its built-in PoE system provides up to 72W total PoE output, with a maximum output of 25.5W per individual PoE port. The recorder comes with a 1-year manufacturing warranty.
