3MP WiFi Camera with 2304×1296 Resolution & Up to 50m IR
2.8mm/3.6mm/6mm Fixed-Focal Lens Options, DWDR & PT Control
Built-in Mic & Speaker, Human/Pet Detection & 256GB MicroSD
| Fixed Lens – 2.8mm | |
| Image Sensor | 1/3.2" CMOS |
|---|---|
| Maximum Resolution | 2304 × 1296 |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8mm |
| Max. Aperture | F2.0 |
| Illumination | Up to 30m IR |
| Illuminator | 2 IR LEDs |
| Angle Adjustment | 0° to 15° |
| Field of View | H: 90°, V: 50°, D: 105° |
| Pan & Tilt Lens – 6mm | |
| Image Sensor | 1/3.2" CMOS |
| Maximum Resolution | 2304 × 1296 |
| Lens Type | Fixed-Focal |
| Focal Length | 6mm |
| Max. Aperture | F1.6 |
| Illumination | Up to 50m IR |
| Warm Light | Up to 40m |
| Illuminator | 2 IR LEDs + 1 Warm Light |
| Pan | 0° to 349° |
| Tilt | -5° to 90° |
| Field of View | H: 44°, V: 24°, D: 52° |
| Fixed Lens – 3.6mm | |
| Image Sensor | 1/3.2" CMOS |
| Maximum Resolution | 2304 × 1296 |
| Lens Type | Fixed-Focal |
| Focal Length | 3.6mm |
| Max. Aperture | F2.0 |
| Illumination | Up to 30m IR |
| Illuminator | 2 IR LEDs |
| Angle Adjustment | 0° to 15° |
| Field of View | H: 79°, V: 43°, D: 94° |
| Pan & Tilt Lens – 3.6mm | |
| Image Sensor | 1/3.2" CMOS |
| Maximum Resolution | 2304 × 1296 |
| Lens Type | Fixed-Focal |
| Focal Length | 3.6mm |
| Max. Aperture | F2.0 |
| Illumination | Up to 30m IR |
| Warm Light | Up to 30m |
| Illuminator | 2 IR LEDs + 1 Warm Light |
| Pan | 0° to 349° |
| Tilt | -5° to 90° |
| Field of View | H: 79°, V: 43°, D: 94° |
| Video & Audio | |
| Video Compression | H.265 |
| Main Stream | 2304 × 1296 @ 15 fps |
| Sub Stream | 640 × 360 @ 15 fps |
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0° / 180° |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a |
| Intelligence & Functions | |
| Human Detection | Yes |
| Pet Detection | Yes |
| Abnormal Sound Alarm | Yes |
| Privacy Mode | Yes |
| Network & Connectivity | |
| Network Port | RJ-45 10/100 Base-T |
| WiFi | IEEE 802.11a/b/g/n/ac/ax |
| WiFi Frequency | 2.4GHz & 5GHz |
| WiFi Pairing | Bluetooth Pairing |
| Management Software | DMSS |
| Mobile Client | iOS, Android |
| Storage | |
| Storage Type | Micro SD Card |
| Maximum Storage | Up to 256GB |
| Power | |
| Power Supply | 5V DC |
| Power Consumption | Basic: 2.3W |
| Maximum Power Consumption | 5.2W (Pulling Stream + IR + PT Rotation) |
| Physical Specification | |
| Casing Material | Plastic |
| Color | Not specified |
| Dimension | Φ80.9 × 125.7mm |
| Net Weight | 233g |

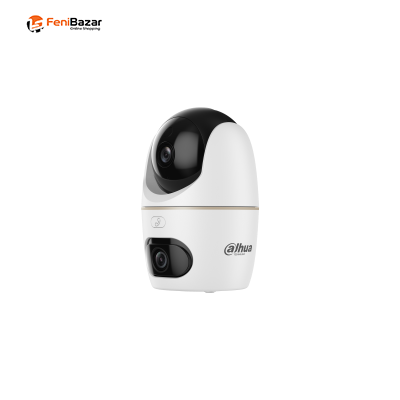

This Dahua 3MP Dual-Lens Pan & Tilt WiFi Camera is designed for flexible indoor surveillance with two camera units combining fixed-lens and Pan & Tilt monitoring. Both cameras use a 1/3.2" CMOS sensor and provide a maximum resolution of 2304 × 1296 pixels. The fixed lens is available with 2.8mm or 3.6mm focal length, while the Pan & Tilt lens uses a 6mm or 3.6mm fixed-focal lens depending on the configuration.
The fixed camera provides a compact viewing area with up to 30 meters of IR illumination. The 2.8mm version offers a 90° horizontal field of view, while the 3.6mm version provides a 79° horizontal field of view. The Pan & Tilt camera supports up to 349° pan and -5° to 90° tilt adjustment, allowing flexible positioning and wider area monitoring. Its illumination varies by lens configuration, with IR up to 50 meters and warm light up to 40 meters available on the 6mm version.
For video recording, the camera supports H.265 compression with a video bit rate of 512 kbps to 4096 kbps. The main stream supports 2304 × 1296 at up to 15 fps, while the sub stream supports 640 × 360 at up to 15 fps. Day/Night modes include Auto (ICR), Color, and B/W, while DWDR and motion detection help improve monitoring performance.
The camera features built-in microphone and speaker for two-way audio communication and supports G.711a audio compression. It provides 2.4GHz and 5GHz WiFi connectivity, RJ-45 10/100 Base-T networking, Bluetooth pairing, DMSS management, and Micro SD card storage up to 256GB. Human Detection, Pet Detection, Abnormal Sound Alarm, and Privacy Mode are also supported. With a compact plastic casing and 5V DC power supply, it is suitable for indoor surveillance applications.
