5MP F1.0 Full-Color HDCVI Bullet Camera with 40m Warm Light
2880×1620 Resolution, 3.6mm/6mm F1.0 Fixed Lens & Multi-Format Output
Built-in Mic, 3D NR, WDR, Auto/Manual Gain & IP-Compatible Design
| General | |
| Casing | Metal front cover + plastic main body + plastic bracket |
|---|---|
| Dimensions | 304 × 108.4 × 90.8mm |
| Net Weight | 0.82kg |
| Gross Weight | 1.25kg |
| Pan/Tilt/Rotation | Pan 0°–360° / Tilt 0°–90° / Rotation 0°–360° |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +60°C |
| Storage Humidity | <95% RH, non-condensing |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 6.4W (12V DC, Warm Light On) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Effective Pixels | 5MP |
| Maximum Resolution | 2880(H) × 1620(V) |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/3s–1/100000s; NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.001 Lux @ F1.0; 0 Lux (Warm Light On) |
| S/N Ratio | >65dB |
| Lens | |
| Lens Type | Fixed Lens |
| Mount Type | M12 |
| Focal Length | 3.6mm / 6mm |
| Maximum Aperture | F1.0 |
| Angle of View | 3.6mm — H: 88° / V: 46° / D: 104°; 6mm — H: 59° / V: 32° / D: 67° |
| Close Focus Distance | 3.6mm: 2.3m; 6mm: 4.5m |
| Video | |
| Resolution | 2880(H) × 1620(V) |
| TVI | PAL 4MP@25fps; NTSC 4MP@30fps |
| CVBS | PAL 960H / NTSC 960H |
| Video Output | CVI / TVI / AHD / CVBS via 1 × BNC |
| BLC Mode | BLC / HLC / WDR / HLC-Pro |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Audio & Interface | |
| Audio | 1-Channel Built-in Microphone |
| Video Interface | 1 × BNC |
| Video Formats | CVI / TVI / AHD / CVBS |
| Warranty | |
| Warranty | 1 Year |

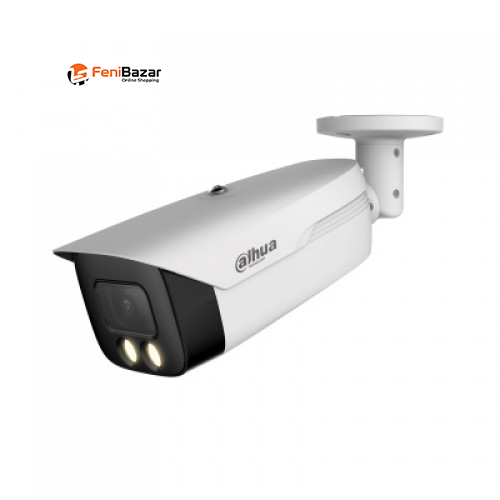

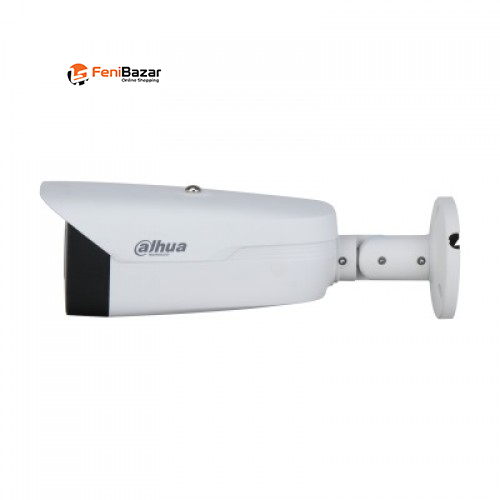

The Dahua DH-HAC-HFW1509MHP-A-LED is a 5MP Color HDCVI Bullet Camera designed to deliver detailed and reliable surveillance video. It features a 5MP CMOS sensor with 2880 × 1620 resolution and progressive scanning, providing clear image quality for a wide range of monitoring applications.
The camera uses an M12 fixed lens with 3.6mm and 6mm focal length options and a wide F1.0 aperture. The 3.6mm lens provides an 88° horizontal, 46° vertical and 104° diagonal field of view, while the 6mm lens provides a 59° horizontal, 32° vertical and 67° diagonal field of view. The close focus distance is 2.3m for the 3.6mm lens and 4.5m for the 6mm lens.
For low-light surveillance, the camera provides a minimum illumination of 0.001 Lux at F1.0 and supports warm-light illumination. It also features BLC, HLC, WDR, HLC-Pro, 3D noise reduction and Auto/Manual gain control to help maintain clear images in different lighting conditions.
The DH-HAC-HFW1509MHP-A-LED includes a built-in microphone and supports CVI, TVI, AHD and CVBS video formats through a single BNC port. It operates on 12V DC ±30% with a maximum power consumption of 6.4W when the warm light is on. The camera has a metal front cover, plastic main body and plastic bracket, and comes with a 1-year warranty.
