8-Channel 1-SATA NVR with 8TB HDD Support & 8MP Decoding
8-Channel Synchronous Playback, HDMI/VGA Output & 8-Screen Display
Smart H.265+, USB Backup, iDMSS/gDMSS & 1080P Output
| System | |
| Main Processor | Embedded Processor |
|---|---|
| Display | |
| Interface | Web / Local GUI |
| Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF |
| Decoding Capacity | 1-channel @ 8MP (30fps) / 1-channel @ 5MP (30fps) / 2-channel @ 4MP (30fps) / 2-channel @ 3MP (30fps) / 4-channel @ 1080P (30fps) / 8-channel @ 720P (30fps) |
| Multi-Screen Display | 1 / 4 / 8 / 9 |
| Video Output | 1 VGA + 1 HDMI, simultaneous |
| Maximum Output Resolution | 1080P |
| Recording | |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Audio Compression | PCM / G711A / G711U / G726 / AAC |
| Record Mode | Manual > Alarm > Motion Detection > Timed Recording |
| Playback & Backup | |
| Sync Playback | Up to 8 channels |
| Playback Functions | Play / Pause / Stop / Fast Forward / Fast Backward / Rewind / Frame Playback |
| Additional Functions | Full Screen / Backup (Cut & File) / Partial Enlargement / Audio On-Off |
| Backup Mode | USB Device |
| Network | |
| Smartphone Support | iDMSS (iOS) / gDMSS (Android) |
| Storage | |
| HDD Interface | 1 × SATA 2.0 |
| Maximum HDD Capacity | Up to 8TB for a single HDD |
| HDD Capacity Limitation | Maximum capacity varies with environmental temperature |
| Auxiliary Interface | |
| USB | 1 × Front USB 2.0 + 1 × Rear USB 2.0 |
| Power | |
| Power Supply | DC 12V, 1.5A |
| Power Consumption | ≤10W without HDD |
| Component Environment | |
| Storage Conditions | Local HDD and Network |
| Construction | |
| Product Dimensions | 260 × 225 × 47.6mm (W × L × H) |
| Box Dimensions | 87 × 331 × 312mm (W × L × H) |
| Net Weight | 0.81kg |
| Gross Weight | 1.38kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |

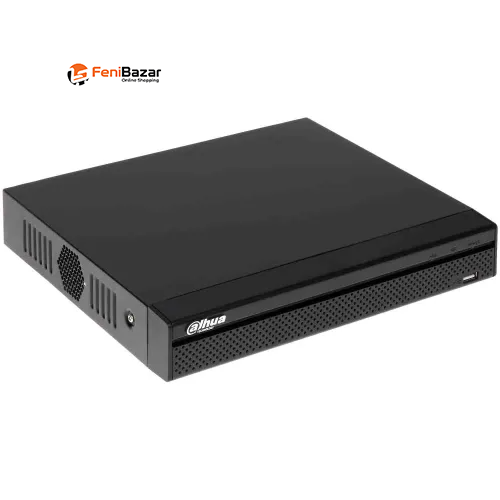

The Dahua NVR1108HS-S3/H is an 8-channel Network Video Recorder designed for reliable IP surveillance recording and monitoring. It features an embedded processor and supports web-based management as well as local GUI operation.
The recorder supports up to 8MP video decoding and provides flexible decoding performance, including 1-channel 8MP at 30fps, 1-channel 5MP at 30fps, 2-channel 4MP at 30fps, 2-channel 3MP at 30fps, 4-channel 1080P at 30fps and 8-channel 720P at 30fps. Multi-screen display supports 1, 4, 8 and 9-channel viewing, while HDMI and VGA outputs support simultaneous 1080P video output.
For efficient recording and storage management, the NVR supports Smart H.265+, H.265, Smart H.264+ and H.264 video compression, along with PCM, G711A, G711U, G726 and AAC audio compression. Recording modes include manual, alarm, motion detection and timed recording, with recording priority configured accordingly.
The NVR1108HS-S3/H supports up to 8-channel synchronized playback and provides playback functions such as fast forward, fast backward, rewind, frame playback, backup, partial enlargement and audio on/off. It includes one SATA 2.0 port supporting up to an 8TB single HDD, two USB 2.0 ports for backup and device connectivity, and mobile access through iDMSS for iOS and gDMSS for Android.
The recorder operates on DC 12V/1.5A with total NVR power consumption of up to 10W without an HDD. Its compact 260 × 225 × 47.6mm design and 1-year manufacturing warranty make it suitable for compatible CCTV and IP surveillance installations.
