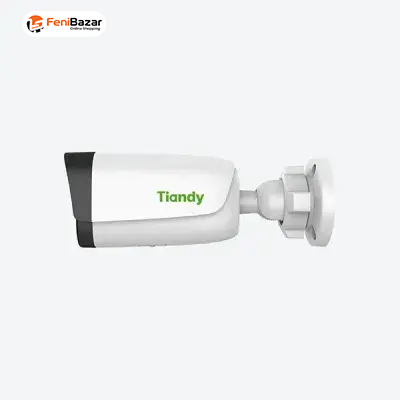

Tiandy TC-C32UN I8/A/E/Y 2MP Motorized IR Bullet IP Camera – 2.8-12mm Varifocal Lens

## Tiandy 2MP Motorized Varifocal Bullet IP Camera with 80m IR, PoE & Audio

The Tiandy 2MP Motorized Varifocal Bullet IP Camera is a professional surveillance solution designed for homes, offices, commercial properties, warehouses, factories, parking areas, building perimeters, and other security-critical locations. Featuring a 1/2.8" CMOS sensor, Full HD 1920×1080 resolution, motorized 2.8–12mm varifocal lens, and powerful 80-meter infrared illumination, this camera provides flexible coverage and reliable day-and-night monitoring.

With motorized zoom, advanced image enhancement, built-in microphone, microSD card support up to 512GB, ANR, PoE connectivity, ONVIF compatibility, and IP67 weatherproof protection, it is well suited for professional CCTV and NVR surveillance installations where long-range visibility and flexible viewing angles are important.

### 2MP Full HD Imaging

The camera delivers up to **2MP Full HD resolution at 1920×1080 and 30fps**, providing clear and smooth video for everyday security monitoring. The 1/2.8" CMOS image sensor and F1.6 aperture provide improved image performance in low-light environments.

Its minimum illumination reaches:

- Color: 0.02 Lux @ F1.6, AGC ON
- B/W: 0 Lux with IR

This allows the camera to maintain useful surveillance performance even in very low-light conditions.

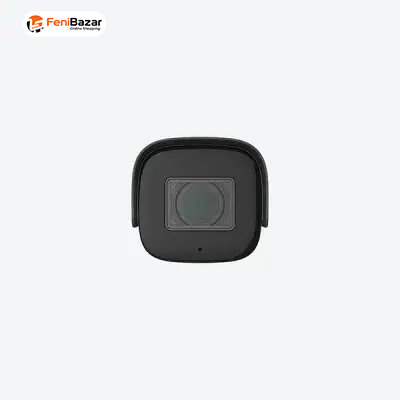

### Motorized 2.8–12mm Varifocal Lens

The camera features a **motorized 2.8–12mm varifocal lens**, allowing users to adjust the viewing angle and zoom according to the installation requirements.

The field of view ranges from:

- Horizontal: 105.6°–29°
- Vertical: 58.8°–16.6°
- Diagonal: 120.9°–33.4°

This flexible lens makes the camera suitable for both wider-area monitoring and more focused long-distance surveillance.

### Powerful 80m IR Night Vision

Equipped with **4 IR LEDs**, the camera provides up to **80 meters of infrared night vision** with an 850nm wavelength.

Smart IR technology helps control infrared illumination and reduce overexposure, providing clearer nighttime images across large outdoor areas such as:

- Factory boundaries
- Parking lots
- Roads and driveways
- Building perimeters
- Warehouses
- Gates and entrances

### Long-Range DORI Performance

The motorized varifocal lens provides different DORI distances depending on the zoom position.

**Wide View (W):**
- Detect: 38.6m
- Observe: 15.3m
- Recognize: 7.7m
- Identify: 3.8m

**Tele View (T):**
- Detect: 165.5m
- Observe: 65.6m
- Recognize: 33.1m
- Identify: 16.5m

This makes the camera particularly useful for applications requiring long-distance identification and monitoring.

### Advanced Image Enhancement

The camera includes several image-processing technologies designed to maintain image clarity in challenging environments:

- DWDR
- BLC
- HLC
- AGC
- 3D DNR
- Defog
- Smart IR
- Auto Day/Night with ICR

These features help improve visibility in scenes with strong backlighting, image noise, haze, and changing lighting conditions.

### Efficient S+265 Video Compression

The camera supports **S+265, H.265, and H.264** video compression standards. S+265 smart compression helps reduce bandwidth and storage requirements while maintaining high-quality surveillance footage.

Supported video compression includes:

- S+265
- H.265
- H.264B
- H.264M
- H.264H

Video bit rate ranges from **32Kbps to 4Mbps**.

### Built-in Audio & Local Storage

A built-in microphone allows the camera to capture audio along with video, making it suitable for locations where audio monitoring is required.

The camera also supports **microSD/microSDHC/microSDXC cards up to 512GB** for onboard recording.

Additional storage and reliability features include:

- ANR support
- RTC
- Reset button
- Trigger recording
- Trigger capture
- Surveillance center notification

### PoE Network Connectivity

The camera features a **1× RJ45 10/100 Base-T Ethernet port** and supports **IEEE 802.3af PoE**.

PoE allows power and network data to be delivered through a single Ethernet cable, helping simplify installation and reduce cable requirements in professional surveillance systems.

It also supports ONVIF Profile S/T/G, making it compatible with a wide range of supported NVRs, VMS platforms, and network surveillance systems.

### IP67 Weatherproof Protection

The camera is designed for demanding indoor and outdoor environments with an **IP67 protection rating**. It is resistant to dust and water exposure and can operate in temperatures from **-30°C to 60°C**.

It also features:

- 4000V Surge Protection
- 6000V ESD Protection
- ≤95% RH operating humidity

### Key Features

- 2MP Full HD Network Bullet Camera
- 1920×1080 @ 30fps
- 1/2.8" CMOS image sensor
- Motorized 2.8–12mm varifocal lens
- F1.6 aperture
- Horizontal FOV: 105.6°–29°
- Up to 80m IR night vision
- 4× IR LEDs
- Smart IR technology
- DWDR
- BLC, HLC, AGC & 3D DNR
- Defog function
- Built-in microphone
- S+265/H.265/H.264 compression
- microSD card support up to 512GB
- ANR support
- ONVIF Profile S/T/G
- 1× RJ45 10/100 Base-T
- PoE IEEE 802.3af
- Remote access support
- Easy7 VMS & EasyLive Plus support
- IP67 weatherproof protection
- 4000V surge protection
- 6000V ESD protection
- -30°C to 60°C operating temperature
- 1-Year Brand Warranty

### Ideal Applications

This motorized varifocal bullet camera is suitable for:

- Factory surveillance
- Warehouse security
- Parking lot monitoring
- Building perimeter protection
- Gate and entrance monitoring
- Roadside surveillance
- Commercial property security
- Office security
- Residential perimeter monitoring
- Large outdoor areas
- Professional NVR/CCTV systems

### Why Choose This Tiandy 2MP Varifocal IP Camera?

The camera combines **Full HD imaging, a motorized 2.8–12mm varifocal lens, 80m IR night vision, built-in audio, local storage, ANR, PoE, advanced image enhancement, and IP67 protection** in a professional bullet-camera design.

Its motorized varifocal lens is particularly useful when the exact viewing distance or coverage area needs to be adjusted after installation. With up to **165.5m detection distance in tele view**, it is a strong choice for long-range outdoor surveillance where standard fixed-lens cameras may not provide sufficient flexibility.

### Physical Specifications

- Dimensions: 204 × 84 × 76mm
- Gross Weight: 0.57kg
- Power: DC 12V ±25% / PoE IEEE 802.3af
- Power Consumption: DC Max. 6.5W / PoE Max. 7W
- Protection: IP67
- Operating Temperature: -30°C to 60°C
- Operating Humidity: ≤95% RH
- Warranty: 1 Year Brand Warranty
