4CH PoE NVR with 6MP Support, 4-Port PoE, 8TB HDD, AI Detection & EasyLive Plus.
This 4-Channel PoE Network Video Recorder (NVR) is designed for reliable and efficient IP camera surveillance systems. It supports up to 4 IP camera channels with high-resolution recording and decoding capabilities up to 6MP, making it suitable for homes, offices, shops, warehouses, and small to medium-sized security installations.
The NVR offers 60Mbps incoming bandwidth and 40Mbps outgoing bandwidth, supporting multiple resolutions including 6MP, 5MP, 4MP, 3MP, 1080P, 720P and more. It can decode up to 1-channel 6MP at 30fps, 2-channel 4MP at 30fps, or 4-channel 1080P/720P at 30fps for smooth live viewing and playback.
With built-in 4-port PoE support, the recorder can directly power compatible IP cameras through Ethernet cables. It provides a total PoE budget of 32W with up to 30W per port and supports IEEE 802.3af/at standards, helping simplify camera installation.

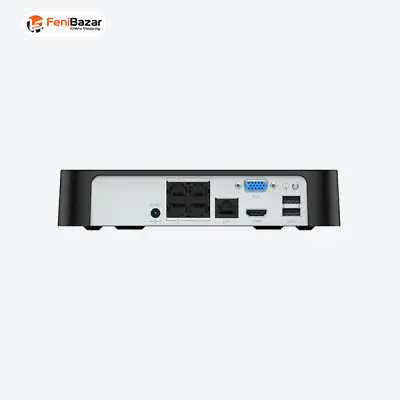

For storage, the NVR supports one SATA HDD with up to 8TB capacity. It also features 2× USB 2.0 ports for backup, HDMI and VGA video outputs, and a 10/100Mbps Ethernet network interface.
Advanced compression technologies including S+265, H.265, S+264, and H.264 help reduce storage and bandwidth requirements while maintaining high-quality video. AI-powered camera analytics support Smart Alarm and Human/Vehicle Classification for improved security monitoring.
The NVR supports ONVIF Profile S/T and RTSP for third-party camera compatibility. Remote monitoring is available through EasyLive Plus on Android and iOS devices, while CGI, SDK, and P2P provide additional system integration and remote access options.
Key Features:
• 4-channel IP camera access
• Up to 6MP recording and decoding support
• 60Mbps incoming bandwidth
• 40Mbps outgoing bandwidth
• 4-port built-in PoE with 32W total PoE budget
• IEEE 802.3af/at PoE support
• Up to 8TB HDD capacity
• S+265/H.265/S+264/H.264 video compression
• AI Smart Alarm and Human/Vehicle Classification
• HDMI and VGA video outputs
• ONVIF Profile S/T and RTSP support
• 4-channel simultaneous playback
• EasyLive Plus mobile app support
• USB backup support
• Suitable for home, office, shop, warehouse and commercial surveillance systems
• 1-Year Brand Warranty
