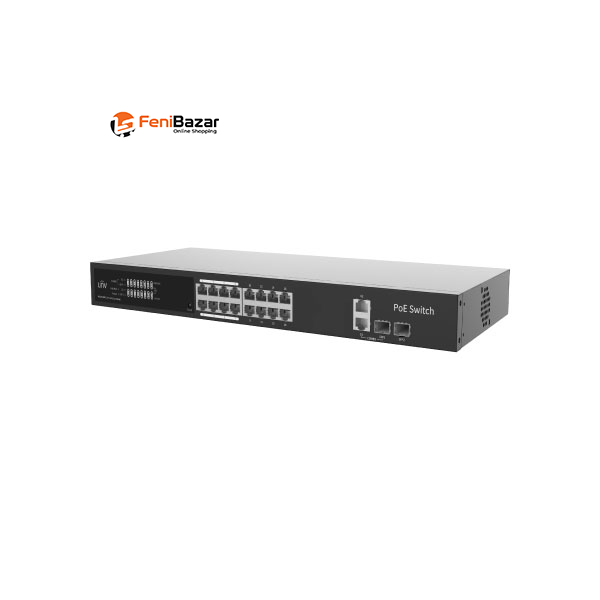

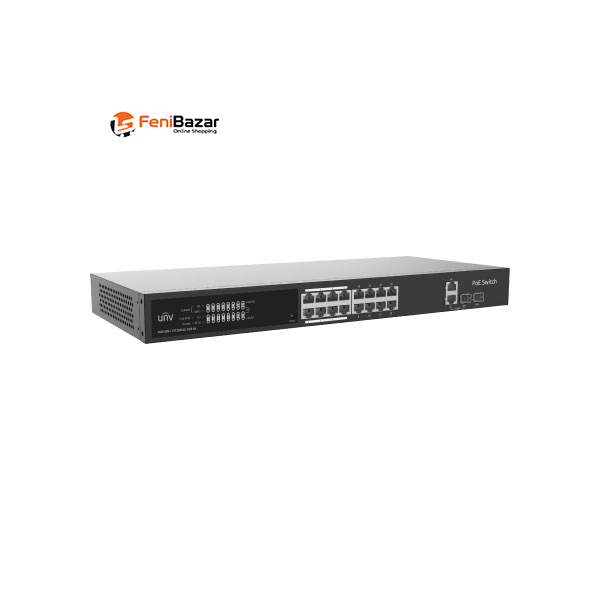

Uniview NSW2100-17GT1GP1GC-POE-IN 16-Port Lite Cloud-Managed Gigabit PoE Switch

16-Port Gigabit PoE Managed Switch with 250W PoE Budget, Gigabit SFP & VLAN

This 16-Port Gigabit PoE Managed Switch is designed for professional network and surveillance installations, providing high-speed Ethernet connectivity, PoE power delivery, network management, and flexible uplink options. It features 16× 10/100/1000Mbps PoE RJ45 ports, along with 1× Gigabit RJ45 port, 1× Gigabit SFP port, and 1× Gigabit Combo port.

High-Speed Network Performance

The switch offers a 38Gbps switching capacity and 28.272 Mpps forwarding performance, helping provide efficient data transmission across connected network devices. It also features a 4 Mbit packet buffer and supports up to 8K MAC addresses.

16-Port Gigabit PoE Support

All 16 PoE ports support 10/100/1000Mbps Ethernet connectivity and comply with IEEE 802.3af and IEEE 802.3at PoE standards. The switch provides a maximum total PoE power budget of 250W, while each individual PoE port can deliver up to 30W.

It supports Mode A (1236) and Mode B (4578) PoE modes. PoE status can also be viewed and the PoE power supply can be enabled or disabled through the APP.

Flexible Uplink Connectivity

For network expansion and uplink connectivity, the switch provides:

• 16× 10/100/1000Mbps PoE RJ45 ports

• 1× 10/100/1000Mbps RJ45 port

• 1× Gigabit SFP port

• 1× Gigabit Combo port

Advanced Network Management

The switch provides a range of software-based network management features, including:

• Full duplex, half duplex, and auto-negotiation modes

• Port enable/disable control

• Port auto-negotiation rate

• Port priority flow control

• Port flow statistics

• Up to 32 VLANs

• VLAN IDs from 1 to 4094

• Static MAC support for up to 32 entries

• Loop detection

• Port isolation

• N:1 port mirroring

These features provide greater control over network traffic and connected devices.

Security & Maintenance Features

The switch supports port isolation for improved network management and separation. It also provides software-based maintenance functions, including device upgrade, factory reset, configuration import/export, and device restart.

The system interface allows users to view information such as the device name, current version, IP address, MAC address, and DNS, while also allowing management of the IP address and device name.

Power & Hardware Design

The switch operates on AC 100–240V, 50/60Hz and has a maximum power consumption of 265W. It features 1 cooling fan and a compact 440 × 189.8 × 44mm form factor.

The operating temperature range is 0°C to 45°C, with an operating humidity range of 10% to 90% non-condensing. The unit weighs approximately 2.11kg.

LED Indicators

The switch provides dedicated indicators for monitoring operating status:

• Power: Indicates power input status

• PoE: Indicates PoE power supply status

• PoE-MAX: Indicates the overall PoE power utilization level

• Link/Act: Indicates connection and data transmission status

Key Features

• 16× 10/100/1000Mbps PoE RJ45 ports

• 1× 10/100/1000Mbps RJ45 port

• 1× Gigabit SFP port

• 1× Gigabit Combo port

• 38Gbps switching capacity

• 28.272 Mpps forwarding performance

• 4 Mbit packet buffer

• 8K MAC address table

• IEEE 802.3af / 802.3at PoE support

• 250W maximum PoE power budget

• Up to 30W PoE power per port

• Mode A (1236) & Mode B (4578)

• Up to 32 VLANs

• Static MAC support up to 32 entries

• Loop detection

• Port isolation

• N:1 port mirroring

• PoE management through APP

• Port flow statistics

• Configuration import/export

• Factory reset and device restart

• NDAA Compliant

• AC 100–240V, 50/60Hz

• 440 × 189.8 × 44mm dimensions

• 1 cooling fan

• 2.11kg weight
