Uniview NSW3000-24T1GT1GC-POE-IN 24-Port Cloud-Managed Network Switch

NSW3000-24T1GT1GC-POE-IN 24-Port PoE Switch with 370W PoE Budget & Gigabit Uplink

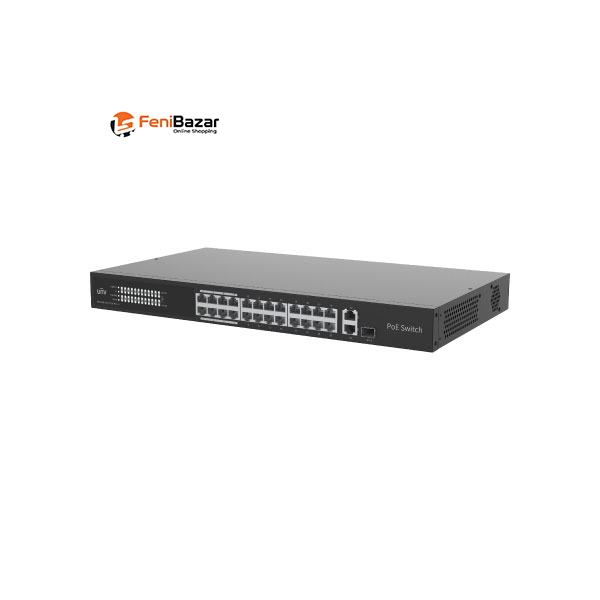

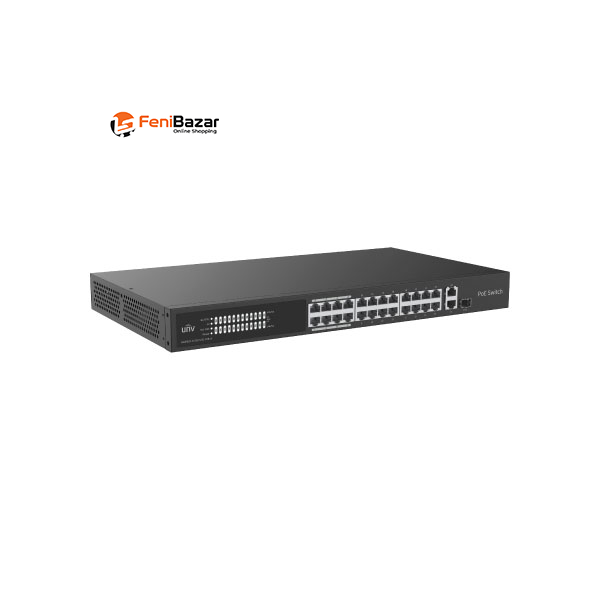

The NSW3000-24T1GT1GC-POE-IN is a 24-port PoE switch designed for network and video surveillance deployments. It provides 24× 10/100Mbps PoE RJ45 ports, 1× Gigabit RJ45 port, and 1× Gigabit Combo port, offering flexible connectivity for PoE-powered network devices.

24-Port PoE Connectivity

The switch supports IEEE 802.3af and IEEE 802.3at PoE standards. It provides a maximum total PoE power budget of 370W, with up to 30W PoE power per individual port.

It supports both Mode A (1236) and Mode B (4578) PoE modes, while the PoE management interface allows users to view PoE status and power consumption and enable or disable PoE power supply.

High Network Performance

The switch offers an 8.8Gbps switching capacity and 6.55 Mpps forwarding performance. It features a 4 Mbit packet buffer and supports up to 16K MAC addresses, providing efficient handling of connected network traffic.

It supports full duplex, half duplex, and auto-negotiation modes, along with port auto-negotiation rate, priority flow control, port flow statistics, and port enable/disable functions.

VLAN & Link Aggregation

For network segmentation and management, the switch supports both Access and Trunk VLAN modes with up to 32 VLANs, using VLAN IDs from 1 to 4095.

It also supports link aggregation groups consisting of two uplink ports, helping provide flexible uplink connectivity.

QoS & Network Security

The switch includes several network control and security features, including:

• Port rate limitation

• Broadcast storm control

• Loop detection

• Port isolation for downlink ports

• Login IP address locking for up to 64 addresses

• Dynamic MAC address clearing

• N:1 port mirroring

These functions provide greater control over network traffic and connected devices.

Network Management & Surveillance Tools

The switch provides unified software-based configuration, management, and device searching. It can discover connected video devices and generate a network topology, making it easier to monitor network and surveillance deployments.

The system can display information including the device name, model, serial number, software version, IP address, MAC address, DNS, and operating time. It supports IP address and device-name management, user authentication, password modification, manual time configuration, and NTP.

The system can also display up to 32 other switches on the same network and up to 64 connected video devices.

Maintenance & Hardware Design

Maintenance functions include device upgrade, factory settings restoration, configuration import/export, log export, device restart, and unified software management.

The switch operates on AC 100–240V, 50/60Hz, with a maximum power consumption of 385W. It features 1 cooling fan, dimensions of 440 × 244.8 × 44mm, and a weight of approximately 2.9kg.

The operating temperature range is 0°C to 45°C, while operating humidity is 5% to 90% RH, non-condensing.

LED Indicators

The switch provides LED indicators for monitoring:

• Power: Normal or abnormal power input

• PoE: PoE power supply status

• Link/Act: Port connection and data transmission status

• MAX: Indicates when total PoE power usage reaches the specified high-utilization level

Key Features

• Model: NSW3000-24T1GT1GC-POE-IN

• 24× 10/100Mbps PoE RJ45 ports

• 1× Gigabit RJ45 port

• 1× Gigabit Combo port

• 8.8Gbps switching capacity

• 6.55 Mpps forwarding performance

• 4 Mbit packet buffer

• 16K MAC address support

• IEEE 802.3af / 802.3at PoE

• 370W maximum total PoE power

• Up to 30W PoE per port

• Mode A (1236) & Mode B (4578)

• Up to 32 VLANs

• Access & Trunk VLAN modes

• Link aggregation for two uplink ports

• Port rate limitation

• Broadcast storm control

• Loop detection

• Port isolation

• N:1 port mirroring

• Login IP locking up to 64 addresses

• Connected video device discovery

• Network topology generation

• Up to 32 other switches viewable on the same network

• Up to 64 connected video devices viewable

• AC 100–240V, 50/60Hz

• 1 cooling fan

• 440 × 244.8 × 44mm dimensions

• 2.9kg weight

• NDAA Compliant
