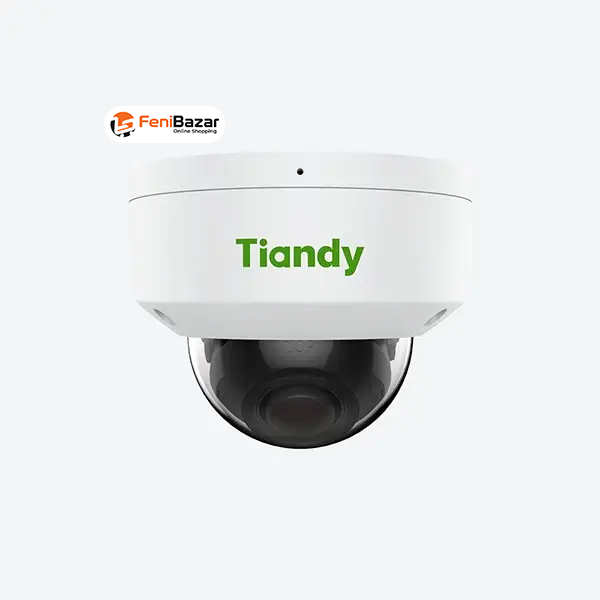

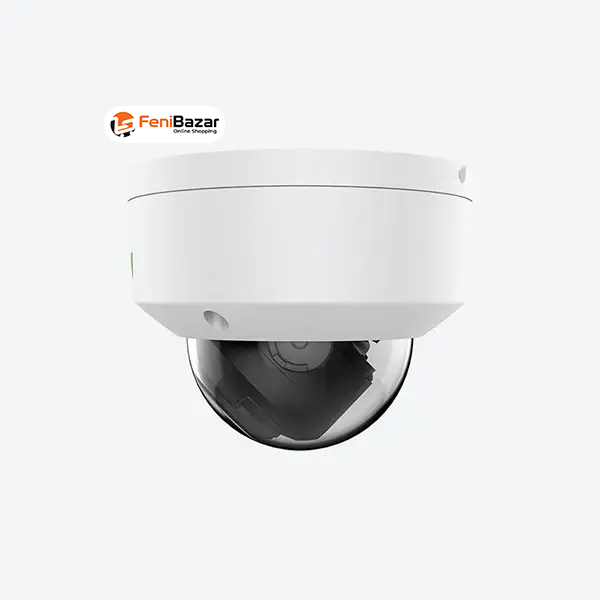

Tiandy TC-C32KN I3/A/E/Y 2MP Motorized IR Dome IP Camera – 2.8-12mm Varifocal Lens

## Tiandy 2MP Motorized Varifocal Dome IP Camera with 30m IR, Audio & PoE

The Tiandy 2MP Motorized Varifocal Dome IP Camera is a professional surveillance solution designed for homes, offices, retail stores, warehouses, commercial properties, parking areas, entrances, and other security-sensitive locations. Featuring a 1/2.8" CMOS sensor, Full HD 1920×1080 resolution, motorized 2.8–12mm varifocal lens, built-in microphone, and up to 30-meter infrared night vision, this camera delivers flexible and reliable surveillance for both indoor and outdoor environments.

With motorized zoom, Smart IR, DWDR, 3D DNR, built-in storage support up to 512GB, ANR, PoE connectivity, ONVIF compatibility, and IP66 protection, the camera is well suited for professional CCTV and NVR systems where adjustable viewing angles and dependable day-and-night monitoring are required.

### 2MP Full HD Image Quality

The camera captures clear Full HD video at **1920×1080 resolution and up to 30fps**, providing smooth and detailed footage for security monitoring and evidence collection.

Its 1/2.8" CMOS sensor offers:

- Color sensitivity: 0.02 Lux @ F1.6, AGC ON
- B/W sensitivity: 0 Lux with IR
- Maximum resolution: 2MP
- Up to 30fps
- Smart IR support
- Auto Day/Night with ICR

The F1.6 aperture helps improve image performance in low-light environments.

### Motorized 2.8–12mm Varifocal Lens

The camera features a **motorized 2.8–12mm varifocal lens**, allowing users to remotely adjust the focal length and viewing area according to installation requirements.

Field of view:

- Horizontal: 105.6°–29°
- Vertical: 58.8°–16.6°
- Diagonal: 120.9°–33.4°

This makes the camera suitable for both wide-area monitoring and more focused views of entrances, gates, corridors, parking areas, and other important locations.

### 30m Smart IR Night Vision

Equipped with **4 IR LEDs**, the camera provides up to **30 meters of infrared night vision** with an 850nm wavelength.

Smart IR technology helps manage infrared illumination and reduce overexposure, allowing the camera to provide clearer nighttime footage across the surveillance area.

### DORI Distance

The motorized varifocal lens provides flexible DORI performance depending on the selected viewing position.

**Wide View (W):**
- Detect: 38.6m
- Observe: 15.3m
- Recognize: 7.7m
- Identify: 3.8m

**Tele View (T):**
- Detect: 165.5m
- Observe: 65.6m
- Recognize: 33.1m
- Identify: 16.5m

The long tele-view detection range makes this camera useful for applications requiring focused long-distance monitoring.

### Advanced Image Enhancement

The camera supports multiple technologies for improving image quality in challenging lighting conditions:

- DWDR
- BLC
- HLC
- AGC
- 3D DNR
- Defog
- Smart IR
- Auto Day/Night with ICR

These features help maintain clearer footage in scenes with backlighting, noise, haze, and changing illumination.

### Built-in Audio & Local Storage

A **built-in microphone** enables audio capture alongside video, providing an additional layer of monitoring.

The camera supports:

- G.711A/G.711U audio compression
- 8kHz audio sampling
- Built-in microphone
- microSD/microSDHC/microSDXC support
- Up to 512GB storage
- RTC
- ANR support

ANR can help maintain recording continuity in supported network configurations when network connectivity is interrupted.

### Efficient S+265 Compression

The camera supports **S+265, H.265, and H.264** video compression technologies. S+265 helps optimize bandwidth and storage usage while maintaining high-quality video.

Supported compression:

- S+265
- H.265
- H.264B
- H.264M
- H.264H

Video bit rate ranges from **32Kbps to 4Mbps**.

### PoE & Network Connectivity

The camera features **1× RJ45 10/100 Base-T Ethernet interface** and supports **IEEE 802.3af PoE**.

PoE allows power and network data to be transmitted through a single Ethernet cable, helping simplify installation and reduce cabling requirements.

It supports:

- ONVIF Profile S/T/G
- RTSP
- HTTP/HTTPS
- TCP/IP
- DHCP
- DNS
- DDNS
- NTP
- FTP
- IPv4
- SSH
- QoS
- P2P
- SDK
- CGI
- Milestone

### IP66 Weatherproof Protection

With an **IP66 protection rating**, the camera is designed to resist dust and water exposure, making it suitable for demanding indoor and outdoor installations.

It supports an operating temperature range of **-30°C to 60°C** and operating humidity of up to **95% RH**.

Additional protection includes:

- 4000V Surge Protection
- 6000V ESD Protection
- IP66 weather resistance

### Key Features

- 2MP Full HD Motorized Varifocal Dome IP Camera
- 1920×1080 @ 30fps
- 1/2.8" CMOS image sensor
- Motorized 2.8–12mm lens
- F1.6 aperture
- 105.6°–29° horizontal FOV
- Up to 30m IR night vision
- 4× IR LEDs
- Smart IR technology
- DWDR
- BLC, HLC, AGC & 3D DNR
- Defog function
- Built-in microphone
- S+265/H.265/H.264 compression
- microSD card support up to 512GB
- ANR support
- ONVIF Profile S/T/G
- 1× RJ45 10/100 Base-T
- PoE IEEE 802.3af
- Easy7 VMS support
- EasyLive Plus mobile client
- Built-in reset button
- 19-language web interface
- IP66 protection
- 4000V surge protection
- 6000V ESD protection
- -30°C to 60°C operating temperature
- 1-Year Brand Warranty

### Ideal Applications

This Tiandy 2MP Motorized Varifocal Dome IP Camera is suitable for:

- Home security
- Office surveillance
- Retail stores
- Warehouses
- Parking areas
- Building entrances
- Commercial properties
- Factory surveillance
- Gate monitoring
- Corridor monitoring
- Residential compounds
- Professional CCTV/NVR systems

### Why Choose This Tiandy 2MP Varifocal Dome Camera?

This camera combines **Full HD 2MP imaging, a motorized 2.8–12mm varifocal lens, 30m Smart IR night vision, built-in audio, microSD storage, ANR, PoE, advanced image enhancement, and IP66 protection** in a compact dome design.

Its motorized varifocal lens provides excellent installation flexibility, allowing the viewing angle and zoom level to be adjusted according to the surveillance area. With up to **165.5m detection distance in tele view**, it is a practical choice for users who need both wide-area coverage and focused long-distance monitoring.

### Physical Specifications

- Dimensions: 120 × 120 × 96mm
- Gross Weight: 0.5kg
- Protection: IP66
- Operating Temperature: -30°C to 60°C
- Operating Humidity: ≤95% RH
- Power: DC 12V ±25% / PoE IEEE 802.3af
- Power Consumption: DC Max. 6.5W / PoE Max. 7W
- Warranty: 1 Year Brand Warranty
