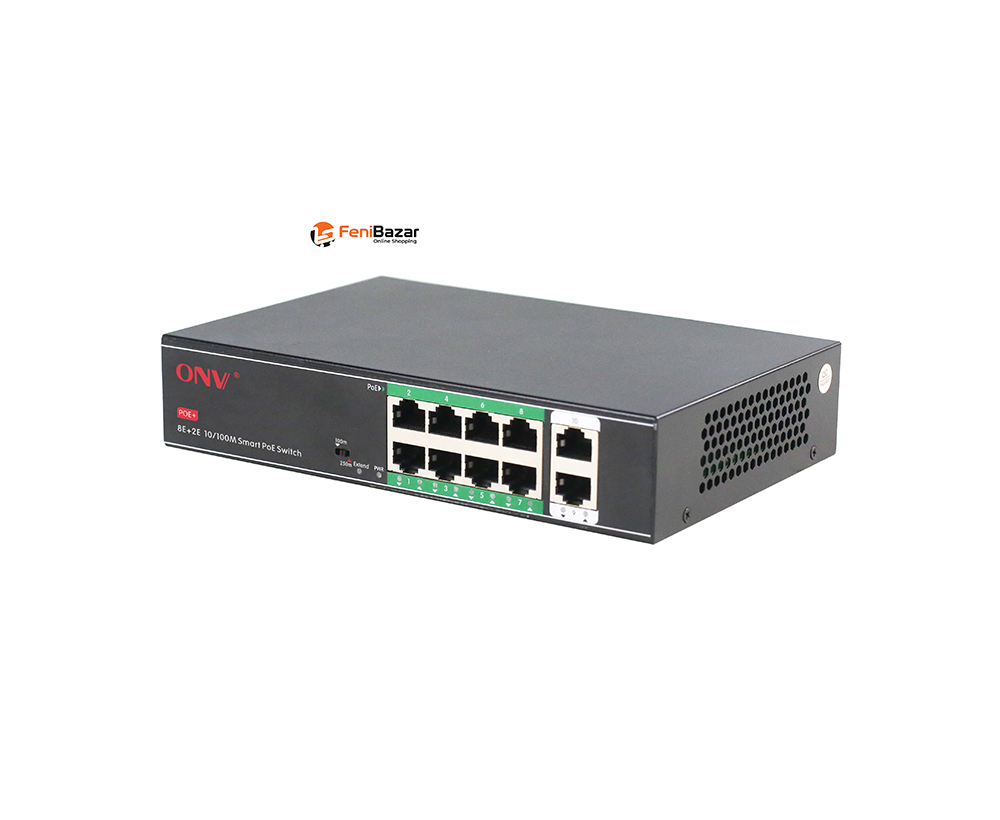

ONV H1064PSD / H1108PSD 4/8-Port PoE Network Switch
10/100Mbps PoE Ports, Dual Uplinks & 250m Long-Distance Mode
30W/Port PoE+, 65W/120W Total Power, 4KV Protection & IP30
| Model | |
| Model 1 | ONV-H1064PSD |
|---|---|
| Model 2 | ONV-H1108PSD |
| Interface Characteristics | |
| ONV-H1064PSD | |
| PoE Ports | 4 × 10/100Base-TX PoE Ports (Data/Power) |
| Uplink Ports | 2 × 10/100Base-TX RJ45 Uplink Ports (Data) |
| ONV-H1108PSD | |
| PoE Ports | 8 × 10/100Base-TX PoE Ports (Data/Power) |
| Uplink Ports | 2 × 10/100Base-TX RJ45 Uplink Ports (Data) |
| Ethernet Port | |
| Port Support | 10/100Base-T(X) Auto-Sensing |
| Duplex | Full/Half Duplex |
| MDI/MDI-X | Self-Adaption |
| Twisted Pair Transmission | |
| 10BASE-T | Cat3/4/5 UTP, up to 250m |
| 100BASE-TX | Cat5 or later UTP, up to 100m |
| Function Switch | |
| E File | Long-Distance Transmission & VLAN Isolation |
| Default Status | OFF |
| Enabled Status | ON |
| Long-Distance Mode | Port 1–4 on H1064PSD / Port 1–8 on H1108PSD support 10Mbps transmission up to 250m |
| Network Protocol | |
| IEEE 802.3 | 10BASE-T |
| IEEE 802.3i | 10Base-T |
| IEEE 802.3u | 100Base-TX |
| IEEE 802.3x | Supported |
| Switching Performance | |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity (H1064PSD) | 1.6Gbps |
| Switching Capacity (H1108PSD) | 2Gbps |
| Forwarding Rate @64 Byte (H1064PSD) | 0.89Mpps |
| Forwarding Rate @64 Byte (H1108PSD) | 1.488Mpps |
| MAC Address Table (H1064PSD) | 1K |
| MAC Address Table (H1108PSD) | 2K |
| Buffer Memory (H1064PSD) | 768K |
| Buffer Memory (H1108PSD) | 1.25M |
| Jumbo Frame | 1536 Byte |
| LED Indicators | |
| Power | PWR (Green) |
| Function Switch | 100m/250m (Green) |
| Network/PoE | 1–6 / 1–10 (Green) |
| PoE & Power Supply | |
| ONV-H1064PSD | |
| PoE Ports | Port 1–4 |
| Power Supply Pin | 1/2 (+), 3/6 (-) |
| Maximum Power per Port | 30W, PoE+ |
| Total PoE Power | 65W |
| Input Voltage | AC 100–240V |
| Power Consumption | Standby <3W, Full Load <65W |
| Power Supply | Built-in AC 100–240V, 50–60Hz, 1.0A |
| ONV-H1108PSD | |
| PoE Ports | Port 1–8 |
| Power Supply Pin | 1/2 (+), 3/6 (-) |
| Maximum Power per Port | 30W, PoE+ |
| Total PoE Power | 120W |
| Input Voltage | AC 100–240V |
| Power Consumption | Standby <5W, Full Load <120W |
| Power Supply | Built-in AC 100–240V, 50–60Hz, 2.2A |
| Physical Parameter | |
| Operating Temperature | -20°C to +55°C |
| Operating Humidity | 5%–90% RH, Non-Condensing |
| Storage Temperature | -40°C to +80°C |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| Installation | Desktop / Wall Mount |
| ONV-H1064PSD | |
| Dimensions | 142.5 × 115 × 40mm |
| Net / Gross Weight | 0.55kg / 0.8kg |
| ONV-H1108PSD | |
| Dimensions | 195 × 130 × 40mm |
| Net / Gross Weight | 0.75kg / 1.0kg |
| Protection & Certification | |
| Lightning Protection | 4KV, 8/20μs |
| Protection Level | IP30 |
| Certifications | CCC, CE Mark, CE/LVD EN62368-1, FCC Part 15, RoHS |
| Warranty | |
| Warranty | 1 Year |
| Maintenance | Lifelong Maintenance |
The ONV-H1064PSD and ONV-H1108PSD are PoE network switches designed for CCTV surveillance and network device installations. Both models provide 10/100Base-TX PoE ports along with dual 10/100Base-TX RJ45 uplink ports, supporting both data transmission and power delivery through Ethernet.
The ONV-H1064PSD features 4 PoE ports with a total PoE power budget of 65W, while the ONV-H1108PSD provides 8 PoE ports with a total power budget of 120W. Each PoE port can deliver up to 30W and supports PoE+, making the switches suitable for connecting compatible PoE cameras and network devices.
Both models support IEEE 802.3, 802.3i, 802.3u, and 802.3x standards and use store-and-forward switching for full wire-speed forwarding. The E-file function provides long-distance transmission and VLAN isolation, with supported PoE ports capable of 10Mbps transmission over distances up to 250 meters when enabled.
The switches feature built-in AC 100–240V power supplies, 4KV lightning protection, IP30 protection, and desktop or wall-mount installation. With support for 10/100Mbps Ethernet, PoE+, long-distance transmission, and multiple protection features, they are suitable for various CCTV and network deployment requirements.
