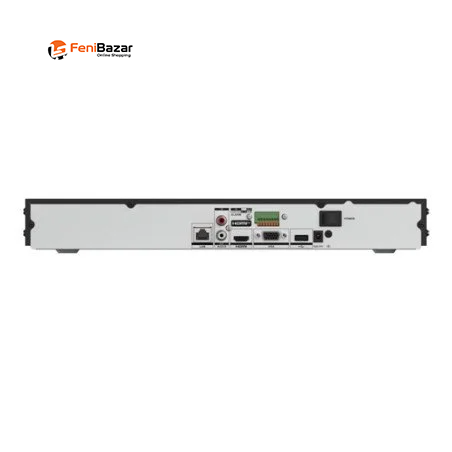

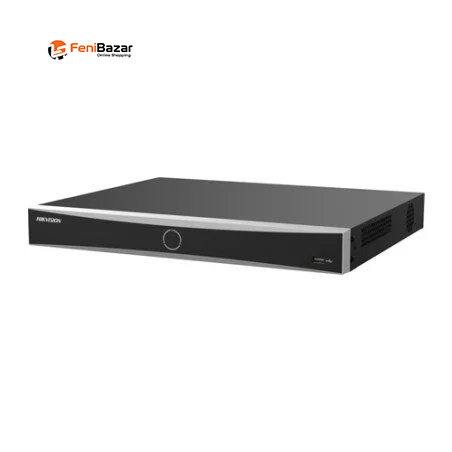

12MP NVR with AcuSense, AcuSeek, 16-Channel Playback & Dual SATA Storage
This 12MP Network Video Recorder (NVR) is designed for advanced IP camera surveillance systems, combining high-resolution recording, intelligent detection, smart search, large-capacity storage, and flexible remote access. It supports up to 12MP resolution recording, 16-channel synchronous playback, and dual SATA interfaces with up to 10TB capacity per interface.
The NVR provides up to 160 Mbps incoming bandwidth and a 10/100/1000 Mbps Gigabit Ethernet interface, supporting reliable network connectivity for IP surveillance systems.
The NVR supports recording resolutions up to 12MP, making it suitable for high-resolution IP camera systems. It supports H.265+, H.265, H.264+, and H.264 video compression for efficient storage management.
Supported recording modes include:
Continuous recording
Scheduled recording
Motion detection recording
Event-based recording
The recorder includes advanced smart surveillance functions designed to improve event detection and video searching.
Key smart features include:
AcuSense Human & Vehicle Detection
AcuSeek Smart Search
Perimeter Protection
Facial Recognition
Motion Detection
Line Crossing Detection
Intrusion Detection
Video Tampering Alarm
Exception Alerts
These functions help make surveillance event monitoring and recorded-video searching more efficient.
The NVR features 2 SATA interfaces, with each interface supporting up to 10TB capacity.
This provides a maximum supported storage capacity of up to 20TB when both SATA interfaces are equipped with 10TB HDDs.
For high-resolution monitoring, the recorder provides:
HDMI output up to 4K (3840×2160)
VGA output up to 1080P
Independent dual-display output
This allows live surveillance and playback to be displayed through the available HDMI and VGA outputs independently.
The NVR supports up to 16-channel synchronous playback, allowing multiple camera recordings to be reviewed simultaneously.
It also supports smart search playback and backup through USB devices or network connections, making recorded footage easier to find and export.
The recorder features 1× RJ-45 10/100/1000 Mbps Ethernet port and supports incoming bandwidth of up to 160 Mbps.
Supported network functions and protocols include:
TCP/IP
DHCP
DNS
DDNS
NTP
SADP
SMTP
HTTPS
The NVR also supports remote access through a mobile app and web browser.
The NVR supports audio input/output, along with audio over IP and two-way audio functionality. This allows compatible IP surveillance systems to incorporate synchronized audio and video monitoring.
The NVR operates using an Embedded Linux OS and provides a user-friendly, multi-language GUI. It supports multiple user access levels, helping provide organized access to surveillance functions.
12MP High-Resolution Recording
AcuSense Human & Vehicle Detection
AcuSeek Smart Search
Perimeter Protection
Facial Recognition Support
Motion Detection
Line Crossing & Intrusion Detection
Video Tampering Alarm
Exception Alerts
160 Mbps Incoming Bandwidth
16-Channel Synchronous Playback
Smart Search Playback
4K HDMI Output (3840×2160)
1080P VGA Output
Independent Dual Display
2× SATA Interfaces
Up to 10TB per SATA Interface
Up to 20TB Total Supported HDD Capacity
H.265+ / H.265 / H.264+ / H.264 Compression
1× RJ-45 10/100/1000 Mbps Ethernet
2× USB 2.0 Ports
Audio Input/Output
Audio over IP
Two-Way Audio
USB & Network Backup
Mobile App & Web Browser Remote Access
ONVIF was not specified — not included
Embedded Linux OS
Multi-Language GUI
Multiple User Access Levels
1-Year Warranty
| Specification | Details |
|---|---|
| Device Type | Network Video Recorder (NVR) |
| Recording Resolution | Up to 12MP |
| Incoming Bandwidth | Up to 160 Mbps |
| HDMI Output | Up to 4K (3840×2160) |
| VGA Output | Up to 1080P |
| Display | Independent Dual Display |
| Playback | Up to 16-Channel Synchronous Playback |
| Playback Search | Smart Search Playback |
| Recording Modes | Continuous, Scheduled, Motion Detection, Event-Based |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| HDD Interface | 2× SATA |
| HDD Capacity | Up to 10TB per SATA Interface |
| Maximum Supported Storage | Up to 20TB |
| Network Interface | 1× RJ-45 10/100/1000 Mbps |
| Incoming Bandwidth | Up to 160 Mbps |
| USB Ports | 2× USB 2.0 |
| Audio | Audio Input/Output, Audio over IP |
| Two-Way Audio | Supported |
| Smart Features | AcuSense, AcuSeek, Perimeter Protection, Facial Recognition |
| Video Detection | Motion Detection, Line Crossing, Intrusion Detection |
| Alarm | Video Tampering, Exception Alerts |
| Network Protocols | TCP/IP, DHCP, DNS, DDNS, NTP, SADP, SMTP, HTTPS |
| Remote Access | Mobile App & Web Browser |
| Operating System | Embedded Linux |
| GUI | User-Friendly, Multi-Language |
| User Access | Multiple User Access Levels |
| Backup | USB Device / Network |
| Warranty | 1 Year |
This 12MP NVR is suitable for IP camera surveillance systems requiring high-resolution recording, large-capacity storage, intelligent detection, advanced search, multi-channel playback, audio support, and remote access.
Overall, this NVR combines 12MP recording, AcuSense human and vehicle detection, AcuSeek smart search, facial recognition, perimeter protection, 16-channel synchronous playback, 4K HDMI output, independent dual display, dual SATA storage, and Gigabit network connectivity in a centralized surveillance recording solution.
