2MP Full-Color CCTV Camera with 1920 × 1080 Resolution
2.8mm / 3.6mm Fixed Lens, Up to 20m IR & F1.0 Aperture
Built-in Microphone, Audio over Coax & TVI/AHD/CVI/CVBS Output
| Camera | |
| Resolution | 2MP |
|---|---|
| Image Sensor | 2MP CMOS |
| Day & Night | Color |
| Effective Pixels | 1920 × 1080 |
| Minimum Illumination | 0.001 Lux @ F1.0, AGC ON; 0 Lux with white light |
| IR Distance | Up to 20m |
| Max Aperture | F1.0 |
| Lens | |
| Lens Type | 2.8mm / 3.6mm Fixed Focal Lens |
| Mount Type | M12 |
| 2.8mm FOV | Horizontal 105°, Vertical 55°, Diagonal 125° |
| 3.6mm FOV | Horizontal 84°, Vertical 45°, Diagonal 99° |
| Video | |
| Resolution | 1920 × 1080 |
| TVI | 1080p @ 25fps / 30fps |
| CVI | 1080p @ 25fps / 30fps |
| AHD | 1080p @ 25fps / 30fps |
| CVBS | PAL / NTSC |
| Audio | |
| Audio | High Quality Audio |
| Audio Transmission | Audio over Coaxial Cable |
| Microphone | Built-in Mic |
| General Information | |
| Pan | 0° to 360° |
| Tilt | 0° to 75° |
| Rotation | 0° to 360° |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Humidity | ≤90% RH, non-condensing |
| Power Supply | 12VDC ±25% |
| Maximum Power Consumption | 2W |
| Physical Specification | |
| Dimensions | Ø85.11mm × 77.62mm |
| Weight | Approx. 310g |
| Color | White |
| Warranty | |
| Warranty | 1 Year |

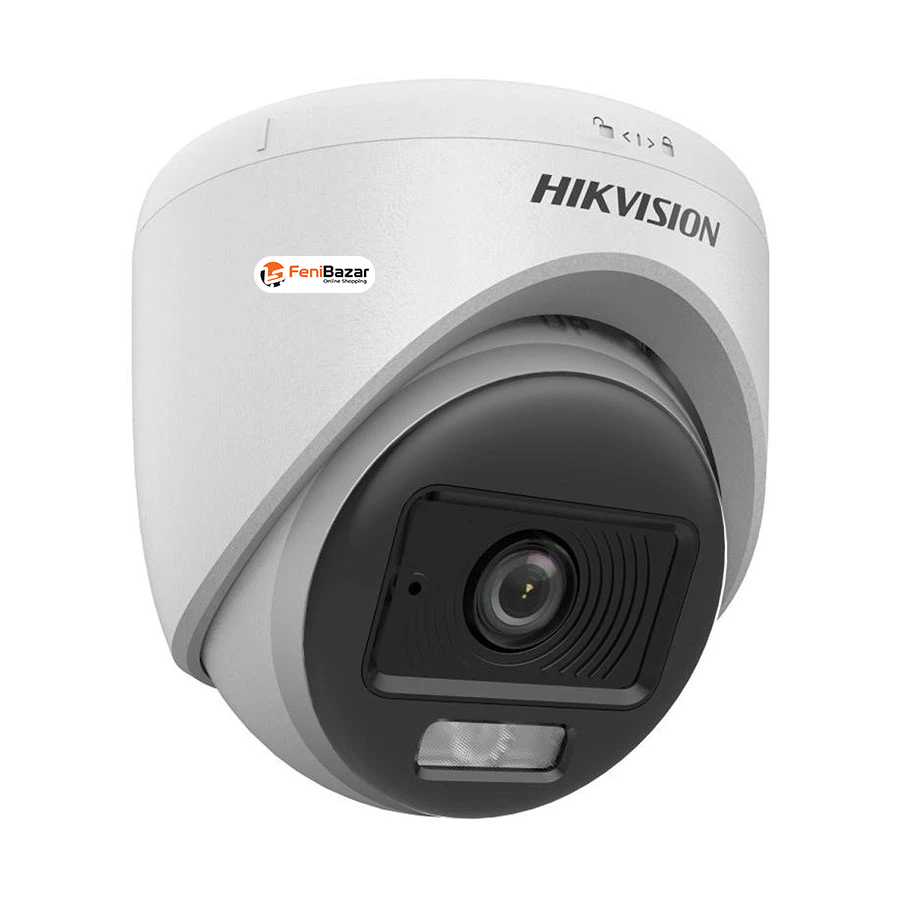

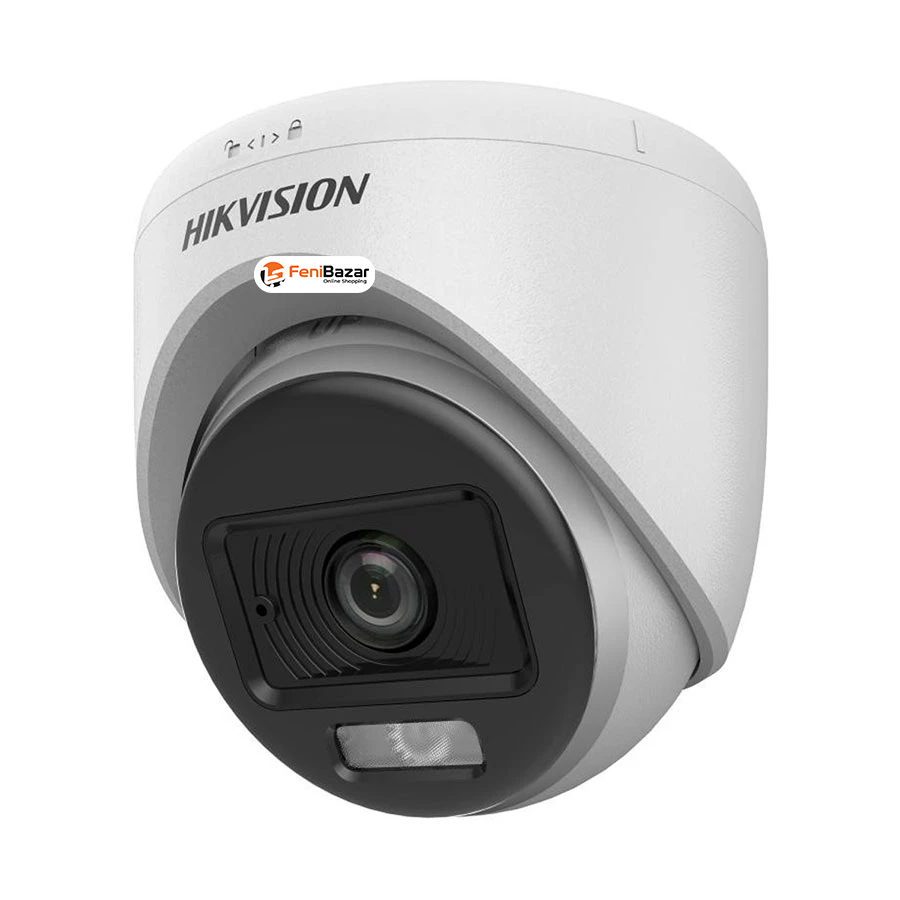

This 2MP Fixed Turret CC Camera is designed to provide clear and detailed 1920 × 1080 surveillance video with color imaging for compatible CCTV monitoring systems. Its 2MP CMOS sensor and F1.0 aperture help deliver bright images in low-light conditions, with minimum illumination of 0.001 Lux when AGC is enabled.
The camera supports 2.8mm and 3.6mm fixed focal lens options with an M12 mount, providing different viewing angles according to the selected lens. It also features up to 20 meters of IR illumination and a built-in microphone with high-quality audio over coaxial cable.
With support for TVI, CVI, AHD, and CVBS video formats, the camera can be used with compatible analog surveillance systems. Its 360° pan, 75° tilt, and 360° rotation adjustment provide flexible positioning during installation.
The camera features a white finish, compact turret-style body, and a 12VDC power supply. It is suitable for homes, offices, shops, entrances, corridors, and other CCTV monitoring applications.
