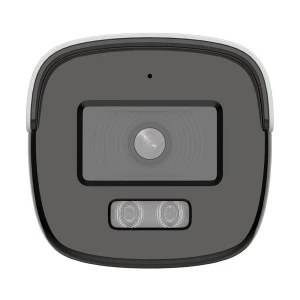

The 2MP 40m White Light Security Camera is designed to provide clear Full HD surveillance with strong nighttime illumination and flexible positioning. Featuring a 2MP CMOS image sensor, 1920 × 1080 resolution, and an F1.0 aperture, the camera delivers detailed images and excellent low-light performance.
It provides white-light illumination up to 40 meters for bright night imaging and supports TVI, AHD, CVI, and CVBS video output for compatibility with different CCTV systems.
The camera features a 2MP CMOS image sensor with 2.0MP effective pixels and a maximum resolution of 1920 × 1080.
With an F1.0 aperture and minimum illumination of 0.001 Lux @ F1.0 with AGC ON, the camera is designed to maintain image visibility in low-light environments. With white light, the minimum illumination is specified as 0 Lux.
A key feature of this camera is its powerful white-light illumination up to 40 meters, designed for bright night imaging.
The white light helps illuminate the surveillance area in dark conditions and provides enhanced visibility during nighttime monitoring.
White-Light Distance: Up to 40m
Minimum Illumination: 0 Lux with white light
Aperture: F1.0
The specification provides FOV information for both 2.8mm and 3.6mm focal lengths:
2.8mm:
Horizontal FOV: 105°
Vertical FOV: 55°
Diagonal FOV: 125°
3.6mm:
Horizontal FOV: 84°
Vertical FOV: 45°
Diagonal FOV: 99°
The lens specification lists a 3.6mm fixed focal lens, while the focal-length section also provides 2.8mm FOV information. The camera uses an M12 lens mount.
The camera offers flexible angle adjustment for accurate positioning during installation:
Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
This allows installers to adjust the camera toward the required monitoring area.
The combination of an F1.0 aperture, very low minimum illumination, and 40-meter white-light illumination makes the camera suitable for surveillance environments where bright nighttime imaging is required.
The camera features a switchable TVI/AHD/CVI/CVBS video output, providing compatibility with multiple analog CCTV video technologies.
This allows the camera to be used with compatible DVR systems and provides flexibility when installing or upgrading a CCTV setup.
The camera includes a Solid Light Alarm using white light, providing an additional visible-light alarm function for supported surveillance applications.
The camera supports both PAL and NTSC signal systems and has adjustable shutter speeds:
PAL: 1/25s to 1/50,000s
NTSC: 1/30s to 1/50,000s
These settings provide flexibility for different lighting and video environments.
The camera measures Ø70 × 116.1 mm and weighs approximately 511 g.
Its compact form factor makes it suitable for various CCTV installation environments.
The camera operates on 12 VDC ±25% and has a maximum power consumption of 3.2W.
For reliable operation, it is recommended to use one power adapter for one camera.
2MP CMOS Image Sensor
2.0MP Effective Pixels
1920 × 1080 Full HD Resolution
Up to 40m White-Light Illumination
Bright Night Imaging
F1.0 Aperture
Minimum Illumination: 0.001 Lux @ F1.0, AGC ON
0 Lux with White Light
3.6mm Fixed Focal Lens Specification
2.8mm & 3.6mm FOV Information
M12 Lens Mount
2.8mm FOV: 105° H / 55° V / 125° D
3.6mm FOV: 84° H / 45° V / 99° D
Pan 0–360°
Tilt 0–90°
Rotation 0–360°
PAL/NTSC Signal System
Switchable TVI/AHD/CVI/CVBS
Solid White-Light Alarm
12 VDC ±25% Power Supply
Maximum Power Consumption: 3.2W
Dimensions: Ø70 × 116.1 mm
Approx. 511g Weight
1-Year Warranty
This 2MP 40m White Light Security Camera is suitable for:
Home security monitoring
Office surveillance
Shop and retail monitoring
Warehouse surveillance
Commercial CCTV systems
Entrance and access-area monitoring
Nighttime surveillance
DVR-based analog CCTV installations
Overall, the 2MP 40m White Light Security Camera combines 1920 × 1080 Full HD video, F1.0 aperture, up to 40m white-light illumination, low-light performance, flexible camera adjustment, switchable TVI/AHD/CVI/CVBS output, and solid white-light alarm functionality for reliable CCTV surveillance.
