EZVIZ CS-H9c Dual-Lens 3MP + 3MP Pan & Tilt Wi-Fi Camera
2.8mm + 6mm F1.6 Lenses, 350° Pan, 80° Tilt & 30m IR Night Vision
AI Human & Vehicle Detection, Auto Tracking, Two-Way Talk & 512GB microSD
| Camera | |
| Model | CS-H9c |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Upper Camera 2.8mm @ F1.6; Bottom Camera 6mm @ F1.6 |
| Upper Camera Viewing Angle | 130° Diagonal, 108° Horizontal, 56° Vertical |
| Bottom Camera Viewing Angle | 62° Diagonal, 55° Horizontal, 28° Vertical |
| PT Angle | Pan 350°, Tilt 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night Vision | 30m / 98ft |
| Video & Audio | |
| Maximum Resolution | 2304 × 1296 |
| Frame Rate | Max. 15fps; self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD, Full HD, Hi-Def, Standard; adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Two-way Talk | Supports |
| Network & Connectivity | |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Frequency Range | 2.4GHz – 2.4835GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 802.11b up to 11Mbps, 802.11g up to 54Mbps, 802.11n up to 150Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1, 10M/100M Adaptive Ethernet Port |
| Security | WPA-PSK / WPA2-PSK |
| Smart Functions | |
| Smart Alarm | AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection, Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Preset Locations | Supports |
| Two-way Talk | Supports |
| General Functions | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | MicroSD Card, up to 512GB |
| Cloud Storage | EZVIZ CloudPlay Storage |
| General | |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | 95% or less, non-condensing |
| IP/Weather Protection | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | Max. 12W |
| Dimensions | 145 × 116 × 142mm |
| Packaging Dimensions | 150 × 150 × 194mm |
| Net Weight | 668g |
| Package Weight | 960g |

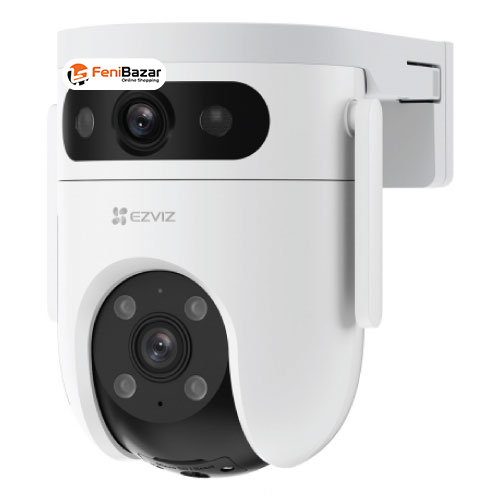

The EZVIZ CS-H9c is a dual-lens pan and tilt Wi-Fi security camera designed to provide flexible and comprehensive surveillance coverage. It features a 1/2.7″ Progressive Scan CMOS sensor with an upper 2.8mm F1.6 lens and a lower 6mm F1.6 lens, offering different viewing angles for wider and more focused monitoring.
The camera supports 350° pan and 80° tilt movement, along with auto tracking, preset locations, and customized alert areas. For intelligent surveillance, it provides AI-powered human shape detection, AI-powered vehicle shape detection, and motion detection. Its IR-cut filter with automatic switching and up to 30-meter black-and-white night vision help maintain clear monitoring in low-light conditions.
The CS-H9c supports H.265 and H.264 video compression with adaptive bit rate and up to 2304 × 1296 resolution at 15fps. It also supports two-way talk, 3D DNR, Digital WDR, and local storage through a MicroSD card up to 512GB, along with EZVIZ CloudPlay storage support.
For connectivity, the camera supports 2.4GHz IEEE 802.11b/g/n Wi-Fi and a 10/100M adaptive RJ45 Ethernet port. With its weatherproof design, -30°C to 50°C operating temperature range, DC 12V/1.5A power supply, and maximum 12W power consumption, it is suitable for a wide range of surveillance applications.
