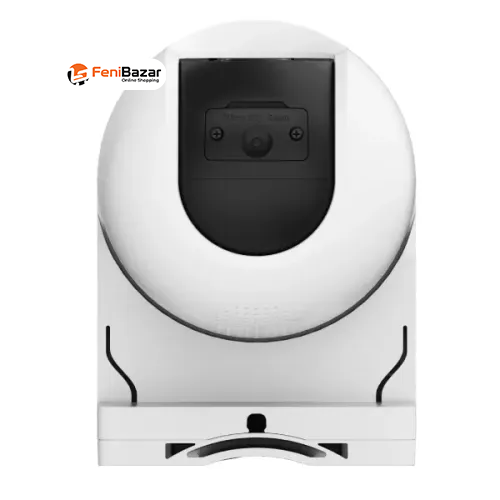

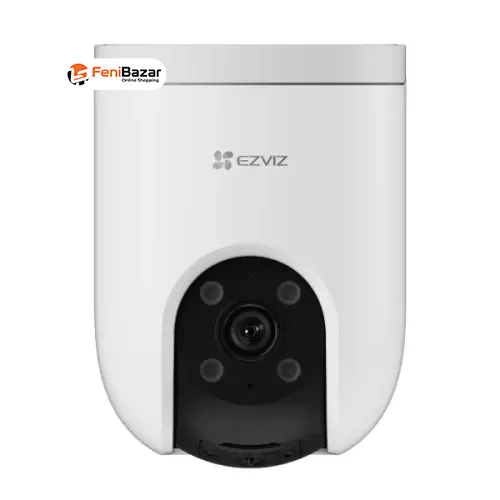

3MP 2K Pan & Tilt Network Camera with 30m IR Night Vision
4mm F1.6 Fixed Lens, 350° Pan, 80° Tilt & Digital WDR
AI Human Shape Detection, Two-Way Audio, 512GB microSD & Wi-Fi
| Camera | |
| Image Sensor | 1/2.8-inch Progressive Scan CMOS |
|---|---|
| Effective Pixels | 3MP |
| Maximum Resolution | 2304 × 1296 |
| Frame Rate | Max. 30fps; self-adaptive during network transmission |
| Lens | 4mm @ F1.6 |
| Pan | 350° |
| Tilt | 80° |
| IR Distance | Up to 30m / 98ft |
| Field of View | 4mm: 49° Vertical, 89° Horizontal, 104° Diagonal |
| Field of View | 6mm: 28° Vertical, 52° Horizontal, 60° Diagonal |
| Minimum Illumination | 0.5 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Video Compression | H.265 / H.264 |
| Bit Rate | Ultra-HD, Hi-Def, Standard; adaptive bit rate |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Smart Features | |
| Smart Alarm | AI-Powered Human Shape Detection |
| Button | Reset Button |
| Mobile App | Yes |
| Audio | |
| Audio Input / Output | Two-Way Audio Support |
| Storage | |
| Storage Type | microSD Card up to 512GB |
| Cloud Storage | EZVIZ CloudPlay; subscription required |
| Network & Connectivity | |
| Wireless Network | IEEE 802.11b/g/n |
| Wi-Fi Frequency | 2.4GHz, 2.412GHz–2.4835GHz |
| Wired Network | 1 × RJ45 |
| Ethernet | 10M/100M Adaptive Ethernet Port |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
| Power | |
| Power Supply | DC 12V / 1A |
| Power Consumption | Max. 12W |
| Physical Specification | |
| Dimensions | 100 × 136 × 140mm |
| Weight | Net 516g; With Package 820.5g (EU Standard Version) |
| Operating Temperature | -30°C to 50°C |
| Operating Humidity | 95% or less, non-condensing |
| Warranty | |
| Warranty | 1 Year |
The EZVIZ CS-H8C Pro 3MP 2K Pan & Tilt Wi-Fi IP Camera is designed for reliable and detailed surveillance with 3MP image quality and a maximum resolution of 2304 × 1296. It features a 1/2.8-inch Progressive Scan CMOS sensor and supports up to 30fps with self-adaptive network transmission for smooth video monitoring.
The camera comes with a 4mm F1.6 lens and supports 350° pan and 80° tilt movement, providing flexible viewing coverage. It also features up to 30m IR night vision and 3D DNR for clearer images in low-light conditions. Digital WDR further helps maintain balanced image quality in varying lighting environments.
For communication and storage, the camera supports two-way audio, microSD cards up to 512GB, and EZVIZ CloudPlay storage with a subscription. AI-powered human shape detection helps identify relevant human movement, while H.265/H.264 video compression and adaptive bitrate provide efficient video transmission.
The EZVIZ CS-H8C Pro supports 2.4GHz Wi-Fi along with a 10M/100M adaptive RJ45 Ethernet port. It operates on DC 12V/1A power with a maximum consumption of 12W and is designed to operate from -30°C to 50°C. The camera comes with a 1-year warranty.
