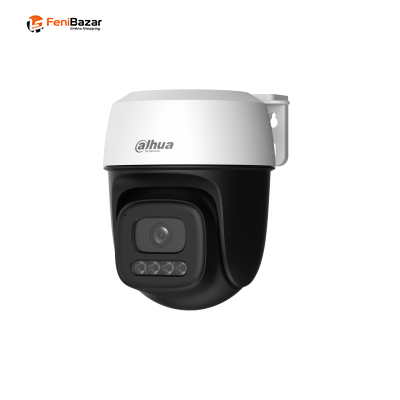

5MP Smart Dual-Light WiFi Camera with 2880×1620 Resolution
2.8mm/3.6mm F2.0 Lens, 30m IR & 30m Warm Light
Human & Vehicle Detection, Built-in Mic/Speaker, DWDR & 256GB MicroSD
| Camera | |
| Image Sensor | 1/3.2" CMOS |
|---|---|
| Maximum Resolution | 2880 × 1620 |
| Illumination Distance | Up to 30 m Warm Light; Up to 30 m IR |
| Illuminator | 2 IR LEDs; 2 Warm Lights |
| Angle Adjustment | Pan 0°–350°; Tilt 0°–90° |
| Lens Type | Fixed-Focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Maximum Aperture | F2.0 |
| Field of View | 2.8 mm: H 95°, V 53°, D 110°; 3.6 mm: H 68°, V 38°, D 79° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio & Video | |
| Video Compression | H.265 |
| Video Frame Rate | Main Stream: 2880 × 1620 @ 1–15 fps; Sub Stream: 640 × 360 @ 1–15 fps |
| Video Bit Rate | 32 kbps–6144 kbps |
| Day/Night | Color/B&W |
| WDR | DWDR |
| Motion Detection | OFF/ON, 4 rectangular areas |
| Image Rotation | 0°/180° |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Network | |
| Network Port | RJ-45, 10/100 Base-T |
| Wi-Fi | IEEE 802.11b/g/n/ax, 2.4 GHz |
| Wi-Fi EIRP | ≤20 dBm @ 2400–2483.5 MHz (CE) |
| Wi-Fi Pairing | Bluetooth Pairing |
| Storage | Micro SD Card, up to 256 GB |
| Management Software | SmartPSS Lite; DMSS |
| Mobile Client | Android; iOS |
| General | |
| Certifications | CE-LVD; CE-EMC; CE-RED |
| Power Supply | 12 VDC ±30% |
| Power Consumption | Basic 2.2 W; Max. 11.3 W |
| Operating Temperature | –30 °C to +50 °C |
| Operating Humidity | ≤95% RH, non-condensing |
| Protection | IP66 |
| Camera Button | Reset Button |
| Casing Material | Plastic |
| Product Dimensions | 136 × 105 × 135 mm |
| Net Weight | 336 g |
This smart Wi-Fi camera features AI Human & Vehicle Detection and automatic target tracking for intelligent surveillance. With a 5MP sensor and 2880 × 1620 resolution, it delivers detailed video for everyday security monitoring.

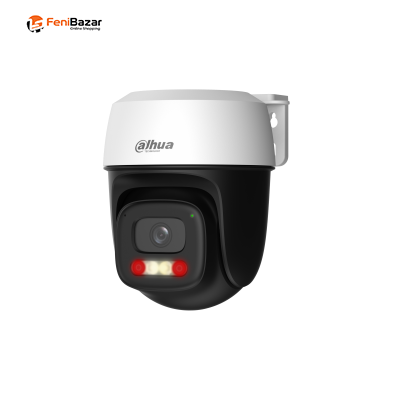

The camera supports Smart Dual Light with up to 30 m IR and 30 m warm-light illumination. It also includes built-in microphone and speaker with two-way talk support, along with sound and light alerts for enhanced security response.
Wi-Fi connectivity supports IEEE 802.11b/g/n/ax on 2.4 GHz, while Bluetooth pairing makes device setup convenient. The camera also supports Micro SD storage up to 256 GB and management through SmartPSS Lite and DMSS.
With IP66 protection, a plastic casing, and an operating temperature range of –30 °C to +50 °C, this camera is designed for reliable surveillance in various installation environments.
