1-SATA 8TB NVR with 8MP Decoding & 1080P Output
Smart H.265+, 4-Channel 1080P Decoding & 1/4-Screen Display
USB 2.0 Backup, 10/100Mbps Ethernet & 1-Year Warranty
| System | |
| Main Processor | Embedded Processor |
|---|---|
| Operating System | Embedded LINUX |
| Display | |
| Interface | Web / Local GUI |
| Output Resolution | 1080P |
| Decoding Capacity | 1-channel @ 8MP (30fps) / 1-channel @ 5MP (30fps) / 2-channel @ 4MP (30fps) / 2-channel @ 3MP (30fps) / 4-channel @ 1080P (30fps) |
| Multi-Screen Display | 1 / 4 |
| Recording | |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Audio Compression | PCM / G711A / G711U / G726 / AAC |
| Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF |
| Record Mode Priority | Manual > Alarm > Motion Detection > Timed Recording |
| Video Detection & Alarm | |
| Video Detection | Yes |
| Alarm Input | Yes |
| Playback & Backup | |
| Playback | Play / Pause / Stop / Fast Forward / Fast Backward / Rewind / Frame Playback |
| Additional Playback Functions | Full Screen / Backup Cut & File / Partial Enlargement / Audio On-Off |
| Backup Mode | USB Device |
| Network | |
| Ethernet Port | 1 × RJ-45, 10/100 Mbps |
| iOS Mobile Client | iDMSS |
| Android Mobile Client | gDMSS |
| Storage | |
| HDD Interface | 1 × SATA 2.0 |
| Maximum HDD Capacity | Up to 8TB for a single HDD |
| HDD Capacity Limitation | Maximum capacity varies with environmental temperature |
| Auxiliary Interface | |
| USB | 1 × Front USB 2.0 + 1 × Rear USB 2.0 |
| Power | |
| Power Supply | DC 12V, 1.5A |
| Power Consumption | ≤10W without HDD |
| Environment | |
| Storage Temperature | 0°C to 40°C |
| Storage Humidity | 30%–85% |
| Construction | |
| Product Dimensions | 260 × 225 × 47.6mm (W × L × H) |
| Box Dimensions | 87 × 331 × 312mm (W × L × H) |
| Net Weight | 0.81kg |
| Gross Weight | 1.38kg |
| Warranty | |
| Manufacturing Warranty | 1 Year |

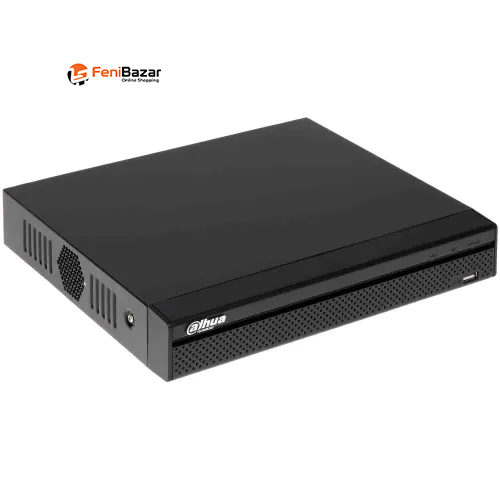

The Dahua NVR1104HS-S3/H is a 4-channel compact 1U Network Video Recorder designed for reliable IP surveillance recording and management. It features an embedded processor with Embedded Linux and supports local GUI operation as well as web-based management.
The recorder supports up to 8MP recording resolution and provides flexible decoding capacity, including 1-channel 8MP at 30fps, 1-channel 5MP at 30fps, 2-channel 4MP at 30fps, 2-channel 3MP at 30fps or 4-channel 1080P at 30fps. It supports 1/4 multi-screen display with 1080P output resolution.
For efficient storage and bandwidth management, the NVR supports Smart H.265+, H.265, Smart H.264+ and H.264 video compression. Recording resolutions include 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 and CIF. Recording can be managed through manual, alarm, motion detection and scheduled recording modes.
The NVR1104HS-S3/H includes video detection and alarm input functions, playback with fast-forward, fast-backward, frame playback, backup and digital enlargement features, and USB backup support. It provides one 10/100 Mbps RJ-45 Ethernet port, two USB 2.0 ports and supports iDMSS for iOS and gDMSS for Android.
For storage, the recorder features one SATA 2.0 port supporting up to an 8TB HDD, subject to operating conditions. It operates on DC 12V/1.5A with total power consumption of up to 10W without an HDD and comes with a 1-year manufacturing warranty.
