5MP F1.0 Full-Color HDCVI Eyeball Camera with 50m Warm Light
2880×1620 Resolution, 2.8mm/3.6mm Fixed Lens & 130dB WDR
Dual Mic, 12m Audio Pickup, 3D NR, Smart Light & IP67 Protection
| Camera | |
| Image Sensor | 5MP CMOS |
|---|---|
| Maximum Resolution | 2880 × 1620 |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.0001 Lux @F1.0 (Color, 30 IRE) |
| Minimum Illumination with Illuminator | 0 Lux |
| S/N Ratio | >65dB |
| Illumination Distance | Warm Light up to 50m |
| Illuminator Control | Auto / Manual |
| Illuminator | 4 Warm Lights |
| Pan | 0°–360° |
| Tilt | 0°–78° |
| Rotation | 0°–360° |
| Lens | |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F1.0 |
| Iris Control | Fixed |
| Field of View (2.8mm) | H 109.6° / V 57.5° / D 131° |
| Field of View (3.6mm) | H 88.2° / V 47.6° / D 104.5° |
| Close Focus Distance (2.8mm) | 2.0m |
| Close Focus Distance (3.6mm) | 3.0m |
| DORI Distance | |
| 2.8mm | Detect 66.0m / Observe 26.4m / Recognize 13.2m / Identify 6.6m |
| 3.6mm | Detect 78.0m / Observe 31.2m / Recognize 15.6m / Identify 7.8m |
| Video | |
| CVI | PAL 5MP@25fps, 5MP@12.5fps; NTSC 5MP@25fps, 5MP@10fps |
| AHD | PAL 4MP@25fps; NTSC 4MP@30fps |
| TVI | PAL 5MP@20fps; NTSC 5MP@20fps |
| CVBS | PAL/NTSC 960H |
| Resolution | 5MP (2880 × 1620), 4MP (2560 × 1440), 960H |
| TVI 5MP Resolution | 2960 × 1665 |
| Day/Night | Color |
| WDR | 130dB |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes, controlled through XVR |
| Illumination Mode | Smart Light |
| Mirror | Yes, controlled through XVR |
| Audio | |
| Built-in Microphone | Dual Mic |
| Audio Support | CVI |
| Pickup Distance | Up to 12m |
| Port | |
| Video Output | CVI / TVI / AHD / CVBS |
| Port | 1 × BNC |
| Output Selection | DIP Switch |
| Certification | |
| CE-LVD | EN 62368-1 |
| CE-EMC | EN 55032; EN 55035 |
| Power | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 5.8W (12V DC, LED On) |
| Environment | |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +60°C |
| Storage Humidity | <95% RH, non-condensing |
| Protection | IP67 |
| Anti-Corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Dome (Metal + Plastic) + Plastic Enclosure |
| Dimensions | Φ109.9 × 102.2mm |
| Net Weight | 0.33kg |
| Gross Weight | 0.45kg |
| Installation | Wall Mount / Ceiling Mount / Vertical Pole Mount |

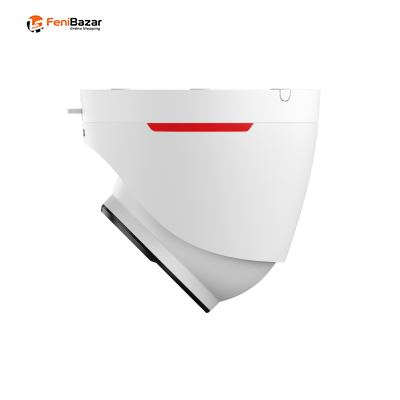

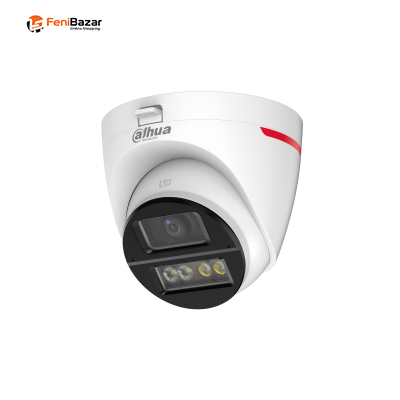

The Dahua HAC-HDW1549X-A-PRO is a 5MP WizColor HDCVI fixed-focal dome camera designed to deliver clear and detailed surveillance video in different lighting conditions. It features a 5MP CMOS sensor with a maximum resolution of 2880 × 1620 and progressive scanning for detailed image output.
The camera uses an M12 fixed-focal lens with 2.8mm and 3.6mm options and a wide F1.0 aperture. The 2.8mm lens provides a 109.6° horizontal, 57.5° vertical and 131° diagonal field of view, while the 3.6mm lens provides an 88.2° horizontal, 47.6° vertical and 104.5° diagonal field of view. It supports up to 50m warm-light illumination with Smart Light technology.
With a minimum illumination of 0.0001 Lux at F1.0, the HAC-HDW1549X-A-PRO is designed for low-light color monitoring. It also features 130dB WDR, 3D noise reduction, Auto White Balance and Auto Gain Control to help maintain image quality in challenging lighting conditions. Motion detection is supported and can be controlled through a compatible XVR.
The camera includes built-in dual microphones with up to 12m pickup distance and supports CVI, TVI, AHD and CVBS video formats through a single BNC port. It operates on 12V DC ±30% with maximum power consumption of 5.8W when the LED is on. The camera has IP67 protection and a metal + plastic dome construction, making it suitable for compatible surveillance installations.
