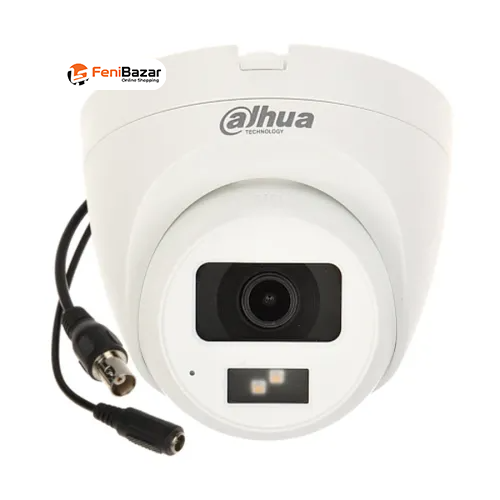

Dahua DH-HAC-HDW1209CLQP-A-LED 2MP Dome CC Camera with 20m IR
1920×1080 Full HD, 2.8mm/3.6mm Fixed-Focal Lens, F1.6 Aperture & M12 Mount
IP67 Protection, 12V DC Power, 3.3W Max. Consumption & 1-Year Warranty
| Camera | |
| Image Sensor | 2MP CMOS |
|---|---|
| Maximum Resolution | 1920 × 1080 |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100000s; NTSC: 1/30s–1/100000s |
| Minimum Illumination | 0.01 lux @ F2.0 (Color, 30 IRE); 0.001 lux @ F2.0 (B/W, 30 IRE); 0 lux (Illuminator On) |
| S/N Ratio | >65dB |
| IR Distance | 20m |
| Warm Light Distance | 20m |
| Illuminator Control | Auto |
| Illuminators | 1 Warm Light + 1 IR Light |
| Lens | |
| Lens Type | Fixed-Focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8mm / 3.6mm |
| Maximum Aperture | F2.0 |
| Field of View (3.6mm) | H: 83°, V: 48°, D: 105° |
| Iris Control | Fixed |
| Close Focus Distance | 0.7m (3.6mm) |
| DORI Distance | |
| Lens | 3.6mm |
| Detect | 50.9m |
| Observe | 20.3m |
| Recognize | 10.2m |
| Identify | 5.1m |
| Video | |
| CVI | 1080p @ 25fps PAL / 30fps NTSC |
| AHD | 1080p @ 25fps PAL / 30fps NTSC |
| TVI | 1080p @ 25fps PAL / 30fps NTSC |
| CVBS | 960H PAL / NTSC |
| Resolution | 1080p (1920 × 1080) / 960H (960 × 576 / 960 × 480) |
| Day/Night | Auto ICR / Color / B/W |
| Backlight | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL / WL Mode / IR Mode |
| Mirror | Yes |
| Privacy Masking | Off / On, 8 rectangular areas |
| Audio | |
| Audio Input | 1 Channel |
| Video Output | |
| Interface | 1 × BNC |
| Video Output | CVI / TVI / AHD / CVBS |
| Power | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 2.6W (12V DC, IR On) |
| Environment | |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Storage Humidity | <95% RH, non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Dimensions | 166.6 × 69.7 × 70mm |
| Net Weight | 0.32kg |
| Gross Weight | 0.40kg |
| Installation | Wall Mount / Ceiling Mount / Vertical Pole Mount |
| Angle Adjustment | |
| Pan | 0°–360° |
| Tilt | 0°–90° |
| Rotation | 0°–360° |
| Certifications | |
| CE-LVD | EN 62368-1 |
| CE-EMC | EN 55032 / EN 55035 |
| FCC | 47 CFR FCC Part 15, Subpart B |
| UL | UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
The Dahua DH-HAC-HDW1209CLQP-A-LED is a 2MP Dome CC Camera designed to deliver clear Full HD surveillance with reliable performance in different lighting conditions. It features a 2MP CMOS image sensor with an effective resolution of 1920 × 1080 pixels, providing detailed video for everyday security monitoring.
The camera supports progressive scanning and offers a minimum illumination of 0.005 lux at F1.6 in color mode, while the illuminator can provide 0 lux illumination performance when activated. With an IR distance of up to 20 meters, it provides additional visibility for nighttime surveillance.
The camera supports fixed-focal lens options of 2.8mm and 3.6mm, both with an F1.6 aperture. The 2.8mm lens provides a wider 108° horizontal field of view, while the 3.6mm lens provides an 84° horizontal field of view. The lens uses an M12 mount and offers close-focus distances of 0.7m for 2.8mm and 1.3m for 3.6mm.
The Dahua DH-HAC-HDW1209CLQP-A-LED is designed for compatible CCTV systems and supports multiple video formats, making it suitable for integration into various surveillance setups.
With an IP67 ingress protection rating, the camera is designed to provide protection against dust and water ingress. Its compact Φ97.1mm × 93.8mm body makes it suitable for a wide range of CCTV installation environments.
The camera operates on 12V DC ±30% and has a maximum power consumption of 3.3W when the LED is on. It has a net weight of 0.17kg and gross weight of 0.28kg, providing a compact solution for CCTV installation.
2MP CMOS image sensor
1920 × 1080 effective resolution
Progressive scanning
Up to 20m IR distance
Fixed-focal 2.8mm / 3.6mm lens options
F1.6 aperture
108° horizontal FOV with 2.8mm lens
84° horizontal FOV with 3.6mm lens
M12 lens mount
IP67 ingress protection
12V DC ±30% power supply
Maximum 3.3W power consumption
1-year warranty
The Dahua DH-HAC-HDW1209CLQP-A-LED 2MP Dome CC Camera is a practical CCTV solution for users looking for Full HD surveillance, flexible lens options, 20m IR visibility, and IP67 protection in a compact dome camera design.
