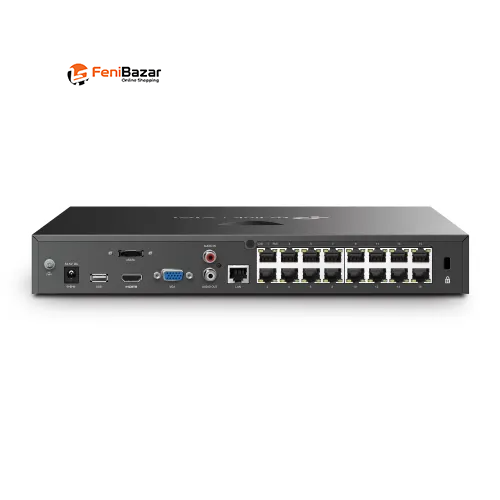

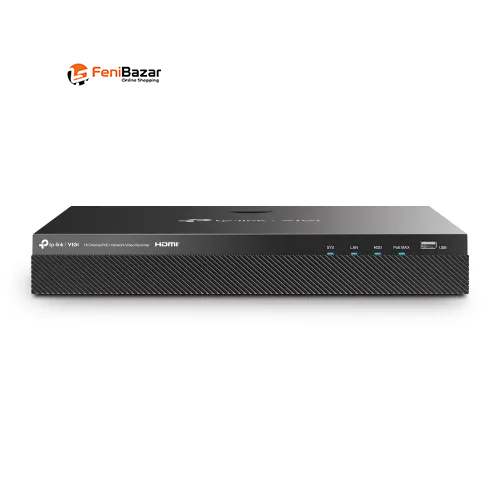

TP-Link VIGI NVR2016H-16P 16-Channel 4K PoE+ Network Video Recorder NVR

TP-Link VIGI NVR2016H-16P 16-Channel 4K PoE+ Network Video Recorder (NVR)

The TP-Link VIGI NVR2016H-16P is a professional 16-channel 4K PoE+ Network Video Recorder (NVR) designed for reliable and efficient IP camera surveillance. It supports up to 16 IP camera channels and recording resolutions of up to 8MP, making it suitable for homes, offices, retail stores, warehouses, factories, and medium to large-scale security installations.

16-Channel 4K Surveillance Recording

The VIGI NVR2016H-16P supports up to 16 IP camera inputs and recording resolutions from 8MP to CIF. With support for H.265+, H.265, H.264+, and H.264 video compression, it helps reduce storage requirements and network bandwidth while maintaining clear surveillance footage.

The NVR supports manual, scheduled, and motion detection recording, allowing users to configure recording according to their specific security requirements.

16-Port PoE+ for Easy Installation

One of the key advantages of the TP-Link VIGI NVR2016H-16P is its integrated 16-port PoE+ interface. It supports IEEE 802.3at/af standards with a total 90W PoE budget and up to 30W per port.

With PoE technology, compatible IP cameras can receive both power and network connectivity through a single Ethernet cable. This simplifies installation, reduces cable requirements, and makes it easier to deploy multiple cameras.

4K HDMI & Multi-Screen Display

The NVR provides HDMI and VGA video outputs, with HDMI supporting up to 4K resolution (3840 × 2160) for detailed surveillance monitoring. It supports multiple display layouts, including 1, 4, 6, 8, 9, and 16 channels, allowing users to monitor multiple cameras simultaneously.

Advanced Video Detection & Smart Alarms

The VIGI NVR2016H-16P provides a wide range of intelligent detection features, including motion detection, video tampering, scene change detection, line-crossing detection, intrusion detection, human detection, vehicle detection, loitering detection, region entering/exiting detection, object abandoned/removal detection, abnormal sound detection, and smart frame detection.

Trigger events such as video loss, offline/IP conflict, disk exception, and login exception help improve system reliability and security monitoring.

16-Channel Synchronous Playback

The NVR supports 16-channel synchronous playback, making it easier to review footage from multiple cameras at the same time. Playback functions include play, pause, stop, fast forward, fast backward, frame-by-frame playback, full-screen viewing, video clip export, digital zoom, recording lock, and audio on/off.

Large Storage Capacity

For extensive video recording, the TP-Link VIGI NVR2016H-16P features 2 SATA interfaces, with support for up to 16TB per HDD. This provides a maximum supported internal storage capacity of up to 32TB when two 16TB drives are installed.

It also includes 1× eSATA interface for additional storage connectivity.

Network & Connectivity

The NVR features a 10/100 Mbps self-adaptive Ethernet interface along with front USB 2.0 and rear USB 3.0 ports. It also provides 1-channel RCA audio input and 1-channel RCA audio output.

The device supports two-way talk, allowing compatible surveillance systems to provide convenient audio communication.

Key Features

• 16-channel IP camera input

• Up to 8MP recording resolution

• 4K HDMI output up to 3840 × 2160

• 16 integrated PoE+ ports

• 90W total PoE budget

• Up to 30W per PoE port

• IEEE 802.3at/af PoE+ support

• H.265+ / H.265 / H.264+ / H.264 compression

• 1/4/6/8/9/16-channel multi-screen display

• 16-channel synchronous playback

• Manual, scheduled & motion detection recording

• Human and vehicle detection

• Intrusion & line-crossing detection

• Region entering/exiting detection

• Object abandoned/removal detection

• Video tampering & scene change detection

• Abnormal sound detection

• 2 SATA interfaces

• Up to 16TB per HDD

• Up to 32TB total internal HDD capacity

• 1× eSATA interface

• HDMI & VGA video outputs

• Front USB 2.0 & rear USB 3.0

• Two-way talk support

• 1-year manufacturing warranty

Buy TP-Link VIGI NVR2016H-16P 16-Channel 4K PoE+ NVR in Bangladesh

The TP-Link VIGI NVR2016H-16P 16-Channel 4K PoE+ Network Video Recorder is an excellent choice for professional IP surveillance systems requiring multiple camera connections, integrated PoE+, high-resolution recording, smart detection, and large storage capacity. With 16 PoE+ ports, up to 8MP recording, 4K HDMI output, 16-channel playback, and up to 32TB internal HDD support, it provides a complete and scalable surveillance recording solution.

The TP-Link VIGI NVR2016H-16P comes with a 1-year manufacturing warranty.
