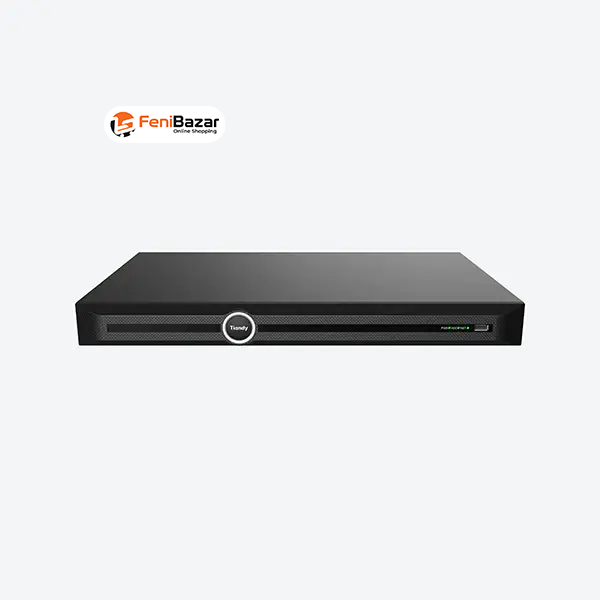

Tiandy TC-R3240 I/B/N/H/V4.1 40-Channel NVR with 2HDD Support

The 40-Channel Network Video Recorder is a high-performance surveillance solution designed for large-scale CCTV systems. It supports up to 40 IP camera channels with 400Mbps incoming and outgoing bandwidth, making it ideal for demanding professional security installations.

With support for resolutions up to 16MP and advanced decoding capabilities, the NVR delivers smooth live viewing and playback across multiple cameras. HDMI output supports up to 4K resolution, while VGA provides flexible display options for multi-screen monitoring.

Advanced S+265, H.265, S+264 and H.264 video compression helps reduce storage and bandwidth requirements while maintaining high-quality footage. The recorder supports multi-channel playback, scheduled, manual and alarm recording, along with USB and network backup.

For intelligent surveillance, it supports AI-based features including human/vehicle classification, face detection and recognition, tripwire, perimeter protection, people counting, heatmap, smoke and fire detection, safety monitoring and other advanced video analytics. Face recognition supports up to 300 face libraries and 100,000 face images.

The NVR supports ONVIF, RTSP, CGI, SDK and P2P compatibility, along with EasyLive Plus mobile access for convenient remote monitoring. Dual-stream recording, smart search, VCA reports and extensive alarm functions make it suitable for commercial, industrial and large-property security systems.

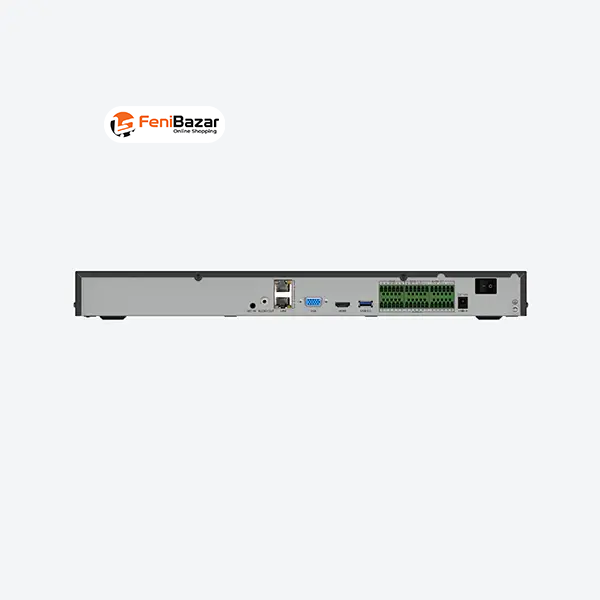

It features 2 SATA interfaces supporting up to 10TB per HDD, dual Gigabit network ports, HDMI and VGA outputs, USB 2.0/3.0, RS-232, RS-485 and multiple alarm input/output interfaces. The robust design supports operation from -10°C to +55°C with 10%–90% RH humidity.

Overall, this 40-channel NVR is an excellent choice for high-capacity professional CCTV installations requiring high-resolution recording, advanced AI analytics, reliable storage and flexible remote management.
