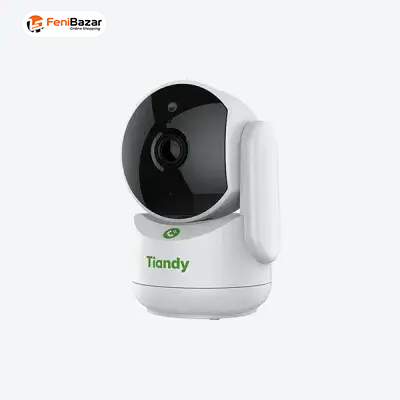

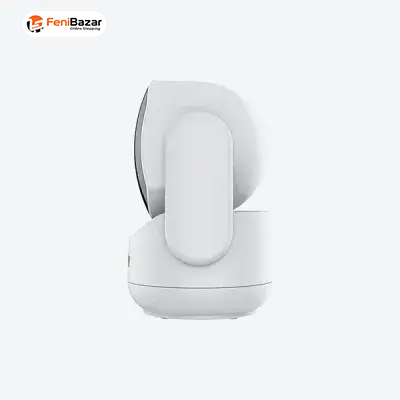

4MP WiFi PT Camera with Auto Tracking, Smart Alarm, 15m IR, Audio & 512GB Storage. Ideal for smart home and office surveillance.
Product Specification
Camera
Image Sensor: 1/2.8" CMOS
Minimum Illumination: Color: 0.02 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR
Shutter Time: 1s–1/100,000s
Day & Night: IR-Cut Filter with Auto Switch (ICR)
Smart IR: Yes
WDR: DWDR
S/N Ratio: >38dB
Angle Adjustment: Pan 0–350°; Tilt -90–90°
Lens
Lens Type: Fixed Focal Lens
Focal Length: 4mm
Lens Mount: M12
Aperture: F2.0, Fixed
Field of View: H: 78.9°; V: 41°; D: 92.9°
DORI Distance: Detect 80m; Observe 31.75m; Recognize 16m; Identify 8m
Pan & Tilt
Pan Speed: 45°/s
Tilt Speed: 30°/s
Preset: 255
Illuminator
IR LEDs: 4
IR Distance: Up to 15m
Wavelength: 850nm
White LED: 1
White Light Distance: Up to 8m
Video & Audio
Max. Resolution: 4MP, 2560×1440 @ 20fps
Video Compression: S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate: 32Kbps–4Mbps
Audio Compression: G.711A/G.711U
Audio Sampling Rate: 8kHz/16kHz
BLC: Yes
HLC: Yes
AGC: Yes
3D DNR: Yes
Privacy Mask: 4 Black Static Areas
Defog: Yes
Smart Features
Video Analytics: Smart Alarm
Auto Tracking: Yes
Alarm: Disk Full, Disk R/W Error, IP Address Conflict
Linkage: Trigger Sound, Trigger Warmlight, Trigger Recording, Trigger Capture
Network & Wi-Fi
Network Protocols: RTSP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast
System Compatibility: ONVIF Profile S/T, SDK, CGI, Milestone
Remote Connection: ≤2
Client: Easy7 VMS
Mobile App: EasyLive Plus
Wi-Fi Standard: IEEE 802.11b/g/n
Wi-Fi Distance: Up to 30m
Frequency: 2.4GHz–2.4835GHz
Security: WPA-PSK/WPA2-PSK
Interface & Storage
Built-in Microphone: Yes
Built-in Speaker: Yes
Reset Button: Yes
Storage: microSD/microSDHC/microSDXC, up to 512GB
General
Operating Temperature: -10°C to 45°C
Operating Humidity: ≤95% RH
Power Supply: DC5V ±5%, Max. 7W
Protection: Surge 500V; ESD 6000V
Dimensions: 74 × 74 × 118mm
Gross Weight: 0.38kg
Warranty: 1-Year Brand Warranty
