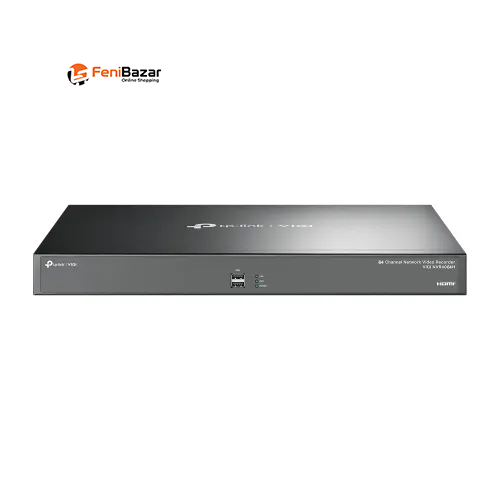

TP-Link VIGI NVR4064H 64-Channel 4K Network Video Recorder NVR

TP-Link VIGI NVR4064H 64-Channel 4K Network Video Recorder (NVR)

The TP-Link VIGI NVR4064H is a professional 64-channel 4K Network Video Recorder (NVR) designed for large-scale and high-performance IP surveillance systems. Supporting up to 64 IP camera channels, 8MP recording, advanced video compression, 4K HDMI output, and large-capacity storage, it is an ideal solution for commercial buildings, factories, warehouses, offices, shopping centers, educational institutions, and other large surveillance installations.

64-Channel IP Camera Support

The VIGI NVR4064H supports up to 64 IP camera channels, allowing users to manage a large number of surveillance cameras from a single NVR. It supports recording resolutions from 8MP down to QCIF, providing flexible compatibility with different IP camera models.

4K Video Output & Multi-Screen Monitoring

The NVR features 2× HDMI and 1× VGA display interfaces. It supports video output up to 8MP and provides multiple display layouts including:

• 1-screen

• 4-screen

• 6-screen

• 8-screen

• 9-screen

• 16-screen

• 25-screen

• 32-screen

• 36-screen

• 49-screen

• 64-screen

This allows security operators to monitor multiple camera feeds efficiently from a centralized location.

Powerful Video Decoding

The TP-Link VIGI NVR4064H provides high-performance video decoding using H.265+, H.265, H.264+, and H.264 formats. Its powerful processing capability enables smooth monitoring and playback of high-resolution surveillance footage.

Efficient H.265+ Compression

With support for H.265+, H.265, H.264+, and H.264 compression, the NVR efficiently manages video storage and network bandwidth. This makes it suitable for systems with a large number of cameras where storage efficiency is important.

16-Channel Synchronous Playback

The NVR supports 16-channel synchronous playback, allowing operators to review footage from multiple cameras simultaneously. Playback functions include play, pause, stop, fast forward, fast backward, frame-by-frame playback, digital zoom, video clipping, clip export, recording lock, and audio control.

Advanced Video Detection & Alarm

The VIGI NVR4064H provides a wide range of intelligent detection and alarm functions, including:

• Motion Detection

• Video Tampering Detection

• Scene Change Detection

• Line-Crossing Detection

• Intrusion Detection

• Region Entering Detection

• Region Exiting Detection

• Loitering Detection

• Object Abandoned/Removal Detection

• Human Detection

• Vehicle Detection

• Abnormal Sound Detection

• Smart Frame

It also supports trigger events such as video loss, offline/IP conflict, disk exception, and login exception.

Large Storage Capacity

The NVR features 4 SATA interfaces, supporting up to 16TB capacity per HDD. This provides up to 64TB of raw HDD capacity when four 16TB drives are installed, making it suitable for large surveillance systems requiring extended recording retention.

The device also includes 1× eSATA interface for additional storage connectivity.

Dual Gigabit Ethernet

For reliable high-speed network connectivity, the VIGI NVR4064H includes 2× RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. This provides suitable network connectivity for large-scale IP camera deployments.

Two-Way Audio

The TP-Link VIGI NVR4064H supports two-way audio, allowing communication with compatible cameras and audio devices. It includes 1-channel RCA audio input and 1-channel RCA audio output.

Flexible Connectivity

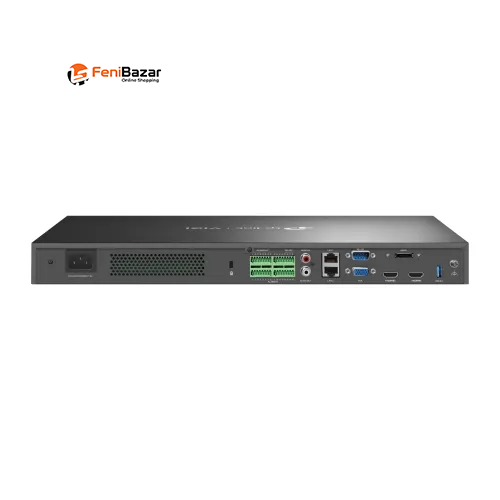

The NVR provides a wide range of interfaces for professional surveillance installations:

• 2× HDMI

• 1× VGA

• 2× USB 2.0

• 1× USB 3.0

• 2× Gigabit Ethernet

• 1× eSATA

• 1× RCA Audio In

• 1× RCA Audio Out

Reliable Professional Design

The VIGI NVR4064H is designed for continuous surveillance operation and supports an operating temperature range of -10°C to +55°C with 10%–90% RH non-condensing humidity. Its 440 × 330 × 44mm chassis and 4kg net weight make it suitable for professional surveillance environments.

Key Features

• 64-channel IP camera input

• Up to 8MP recording resolution

• 4K video output support

• 2× HDMI + 1× VGA

• 1/4/6/8/9/16/25/32/36/49/64 multi-screen display

• 16-channel synchronous playback

• H.265+ / H.265 / H.264+ / H.264 compression

• Advanced human & vehicle detection

• Motion, intrusion & line-crossing detection

• Object abandoned/removal detection

• Abnormal sound detection

• Two-way audio support

• 2× RJ-45 Gigabit Ethernet ports

• 4× SATA interfaces

• Up to 16TB per HDD

• Up to 64TB total HDD capacity

• 1× eSATA interface

• 2× USB 2.0 + 1× USB 3.0

• 100–240V AC power supply

• -10°C to +55°C operating temperature

• 1-year manufacturing warranty

Buy TP-Link VIGI NVR4064H 64-Channel 4K NVR in Bangladesh

The TP-Link VIGI NVR4064H 64-Channel 4K Network Video Recorder is an excellent choice for large and complex surveillance systems requiring centralized camera management, high-resolution recording, powerful decoding, advanced detection, and extensive storage.

With 64-channel IP camera support, up to 8MP recording, 4K HDMI output, 16-channel synchronous playback, dual Gigabit Ethernet, two-way audio, and support for up to 64TB of HDD storage, the VIGI NVR4064H provides a scalable and reliable solution for professional security installations.

The TP-Link VIGI NVR4064H comes with a 1-year manufacturing warranty.
